70952-14-A-ST
DIN 70952 Locking Plates
for Slotted Locknuts DIN 70852, Steel
Eta: 1-2 weeks All sizes and variants of DIN 70952
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- DIN 70952-14-A-ST
- d1
- 14
- a
- 12.9
- b1 h11
- 5
- b2 h11
- 4
- b3 C11
- 5
- d2
- 20
- h
- 3.75
- s
- 0.75
- t -0.1
- 12.8
- For Slotted Locknuts DIN 70852
- M 14 x 1.5
- 2
Type
Type
- Type A: Angled serrations
Steel ST
Steel ST
Plain finish

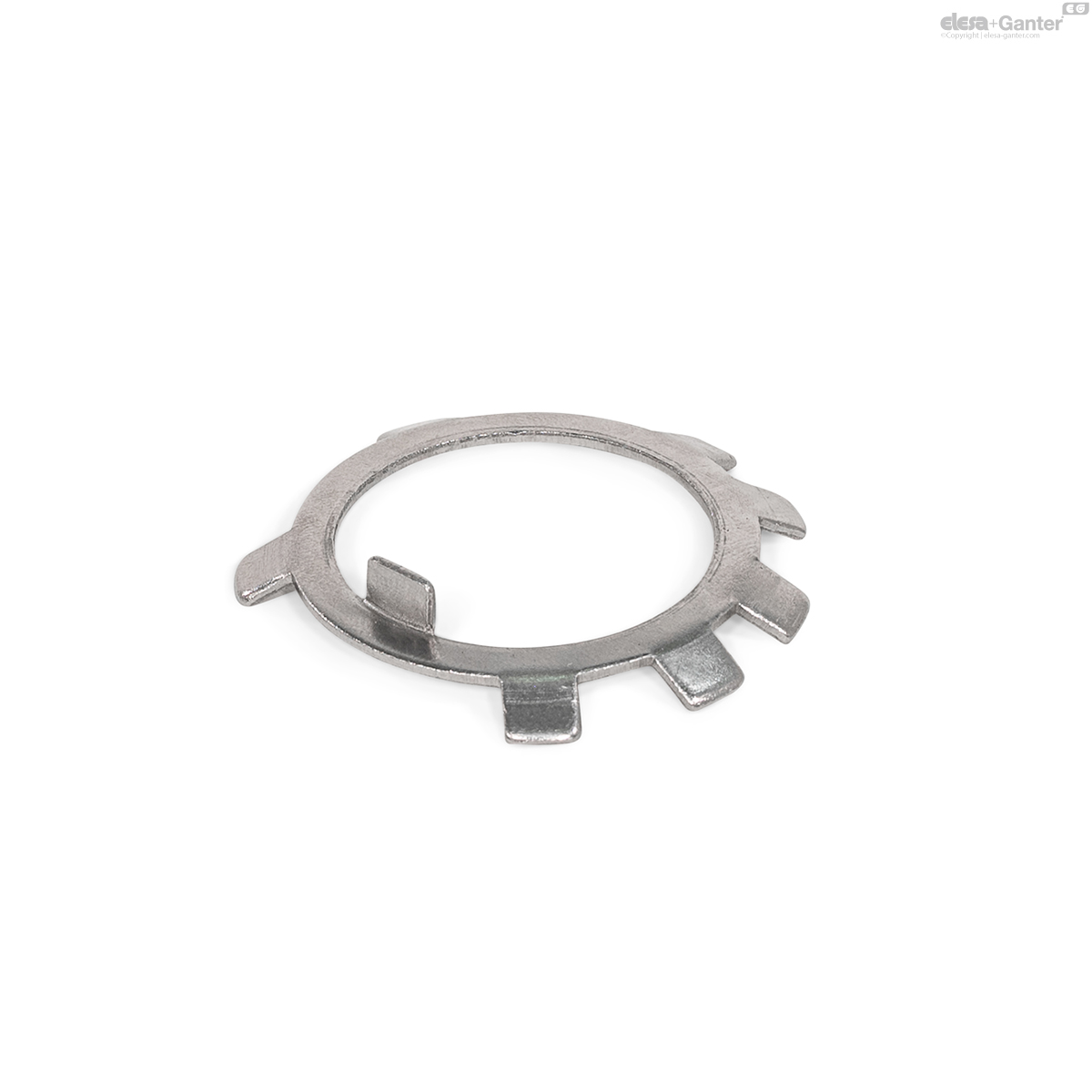

Locking plates DIN 70952 secure slotted locknuts DIN 70852 with a positive connection to prevent undesired loosening or adjustment, such as when they are used to set the axial play of a bearing.
The inner tab positions the locking plate in a groove created in the threaded bolt for this purpose. After installing and adjusting the slotted locknut, a matching locking tab is bent into a groove in the nut to secure the parts in place. Due to this deformation, only a single use is recommended.
