462-18-ST DIN 462 Locking Plates

462-18-ST

DIN 462 Locking Plates

for Slotted Locknuts DIN 1804, Steel
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 462

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 462-18-ST
d1 H11
18
a H11
15.4
b1 c11
6
b2 H11
6
d2 h11
34
h
4
s
1
t max.
15.3
For Slotted Locknuts DIN 1804
M 18 x 1.5
4

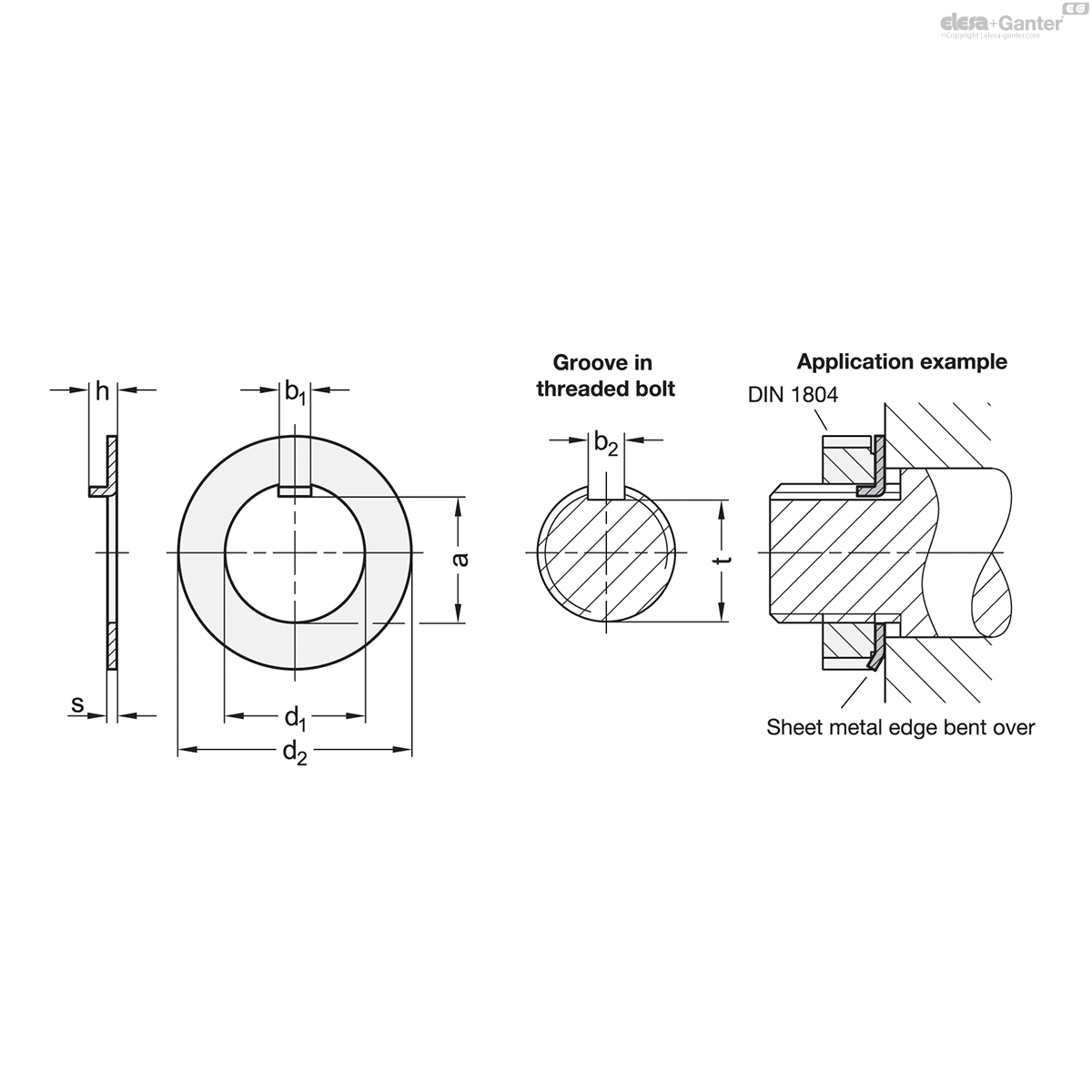

462-18-ST drawing

Steel ST

Plain finish

Locking plates DIN 462 secure slotted locknuts DIN 1804 with a positive connection to prevent undesired loosening or adjustment, such as when they are used to set the axial play of a bearing.

The inner tab positions the locking plate in a groove created in the threaded bolt for this purpose. After installing and adjusting the slotted locknut, the locking plate is bent into a groove in the nut to secure the parts in place. Due to this deformation, only a single use is recommended.
