9861-4-71-D-HSS DIN 9861 Cutting Punches

9861-4-71-D-HSS

DIN 9861 Cutting Punches

Steel HSS
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 9861

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 9861-4-71-D-HSS
d1 h6
4
Length l +0.5
71
d2 ±0.2
5.5
h +0.2
1.8
7

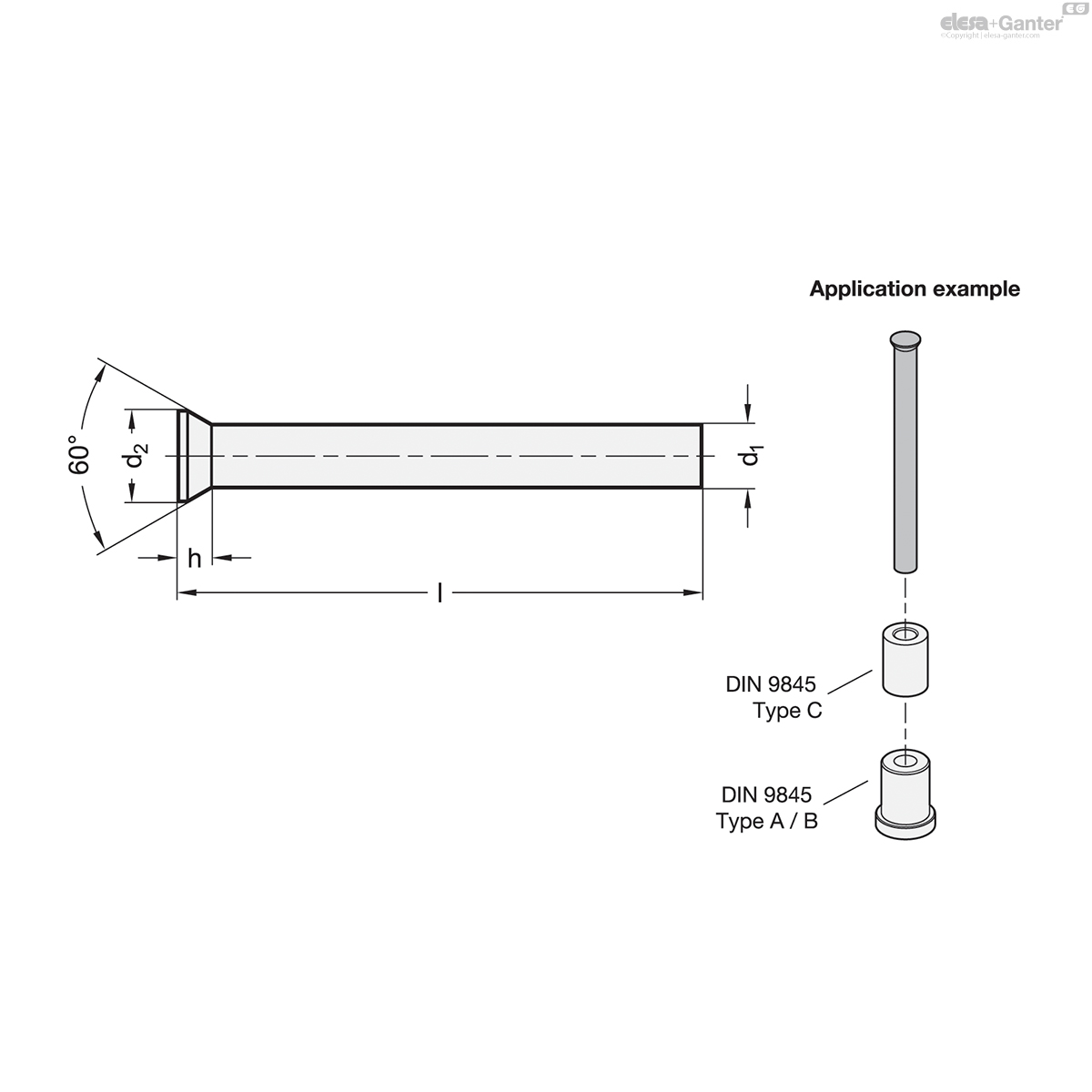

9861-4-71-D-HSS drawing

Type

  • Type D: With conical head

Steel HSS

  • Shaft hardened (HRC 62 +2)
  • Head hardened (HRC 50 +5)

Cutting punches DIN 9861 are used, for example, in combination with cutting bushings DIN 9845 in punching tools. Depending on the application, however, they can also be used as positioning, guide, ejector or embossing pins and can be machined accordingly.

Cutting punches DIN 9861 are characterized by tight shape and position tolerances, a finely machined surface and high wear resistance.
