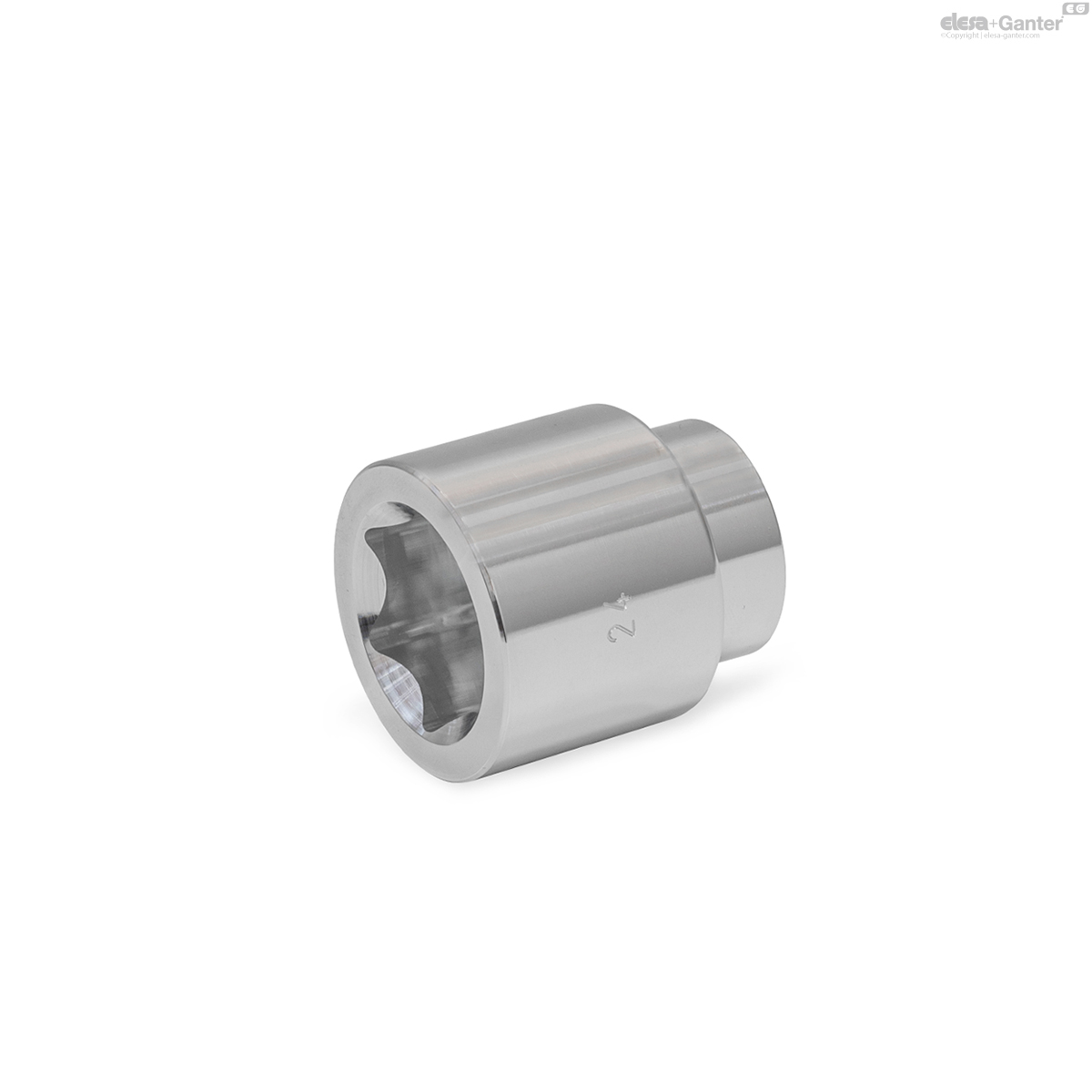

3124-11-6,3-K-AL GN 3124 Sockets

3124-11-6,3-K-AL

GN 3124 Sockets

Aluminum, for Hygienic Design Standard Parts
  • Icons/__logo__HD__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 3124

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 3124-11-6,3-K-AL
A/F
For hex size
11
s Nominal size of square driver as per
DIN 3120
6.3
s
corresponds to inch
1/4
d1
23
d2
13
Length l
22.5
t
13.5
Max. torque
in Nm
2.5
For latches GN 1150
d1 = 22
15

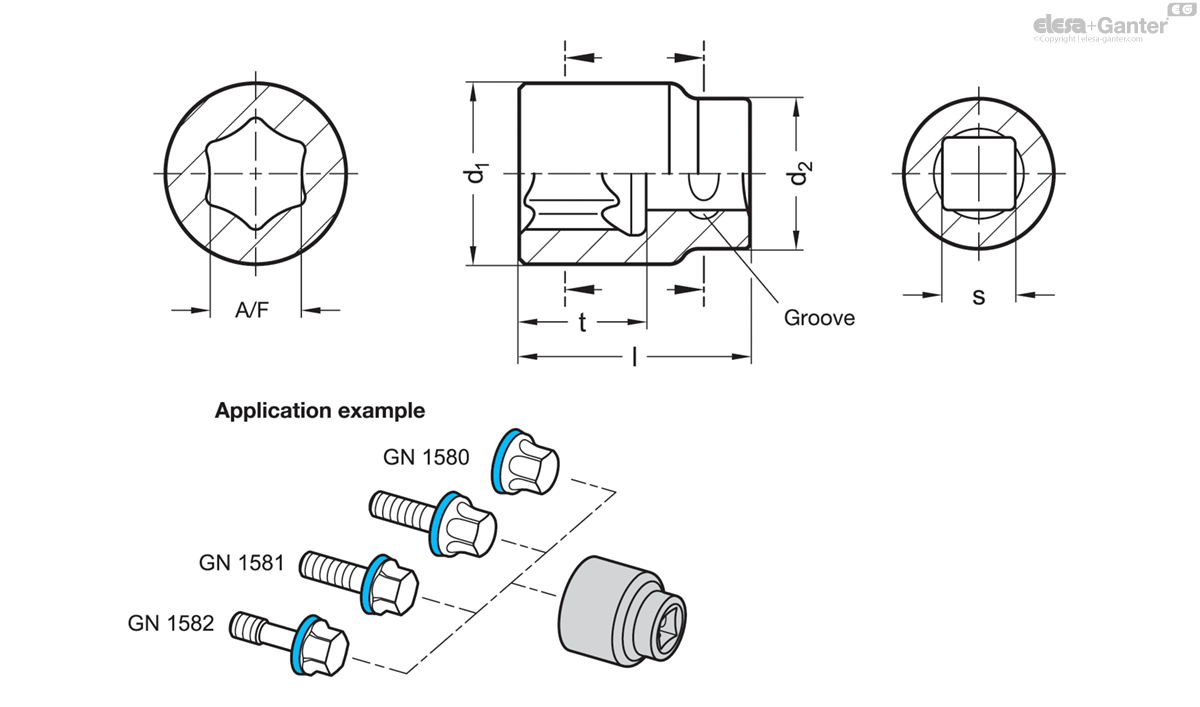

3124-11-6,3-K-AL drawing
video

Coding

  • Coding K: Short version

Aluminum AL

Sockets GN 3124 are used to install the Hygienic Design standard parts listed in the table. In conjunction with the aluminum material used, the rounded hex geometry of the wrench flats transfers the torque to the screw head without causing damage.

If the specified torques are complied with, the socket wrench inserts achieve a long service life. They are driven using commercially available ratchets or reversible ratchets with square drive.
