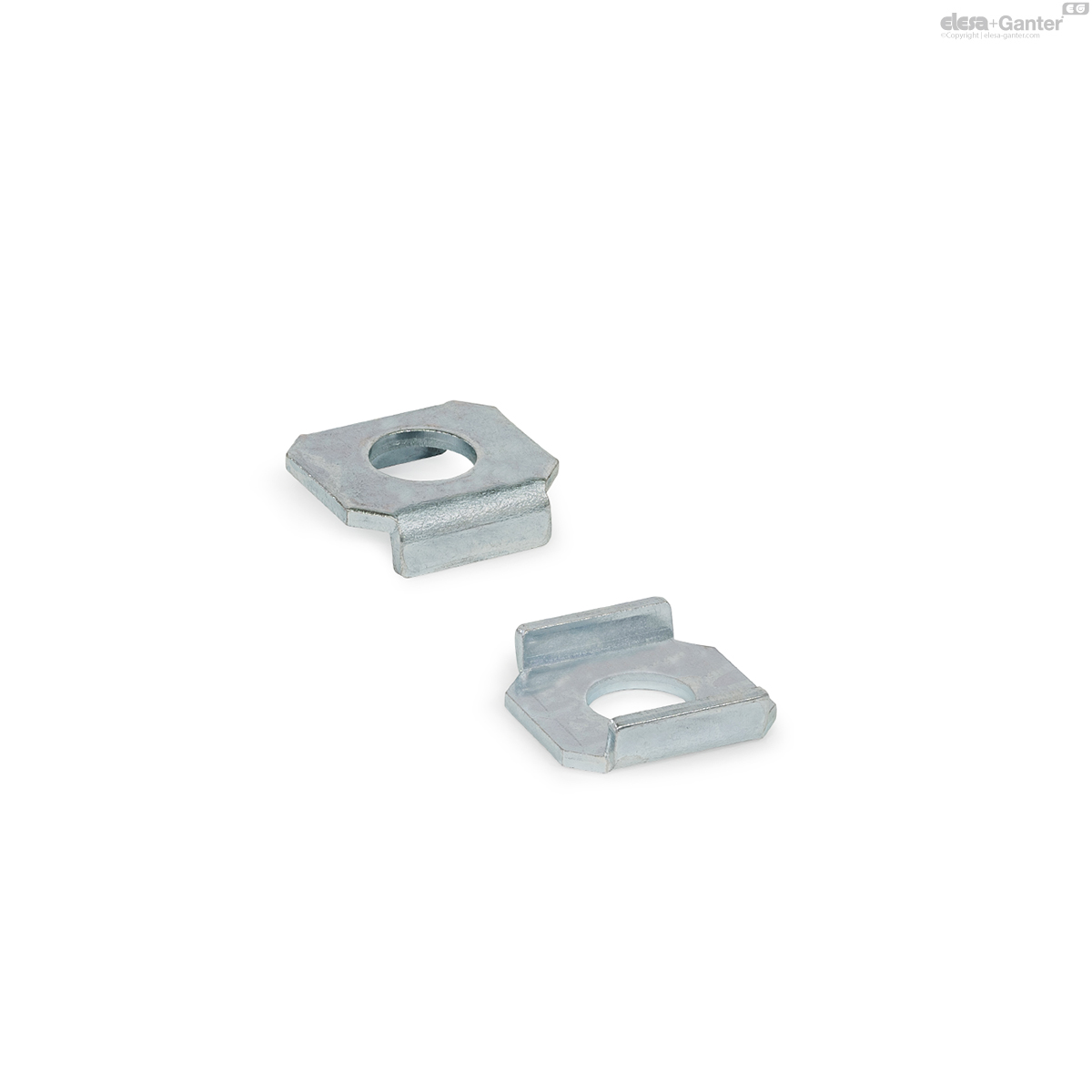

898-10-ST GN 898-ST Steel

898-10-ST

GN 898-ST Steel

Steel / Stainless Steel, for Toggle Clamps
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

In stock All sizes and variants of GN 898

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 898-10-ST
d
Nominal size
10
d Actual dimension
10.5
b
18
h
6
l1
23
l2
16.5
s
2
For toggle clamps
GN 810
GN 810.1
GN 810.3
GN 810.4
GN 812.1
330
For toggle clamps
GN 812
300
For toggle clamps
GN 820
GN 820.1
GN 820.3
GN 820.4
355
For toggle clamps
GN 820.6
250
7
898-10-ST drawing
  • Steel ST
  • Zinc plated, blue passivated
  • Stainless steel AISI 304 NI

Flanged washers GN 898 are used to attach and position pressure elements on toggle clamps with open clamping arm. The corresponding toggle clamps are listed in the table.
