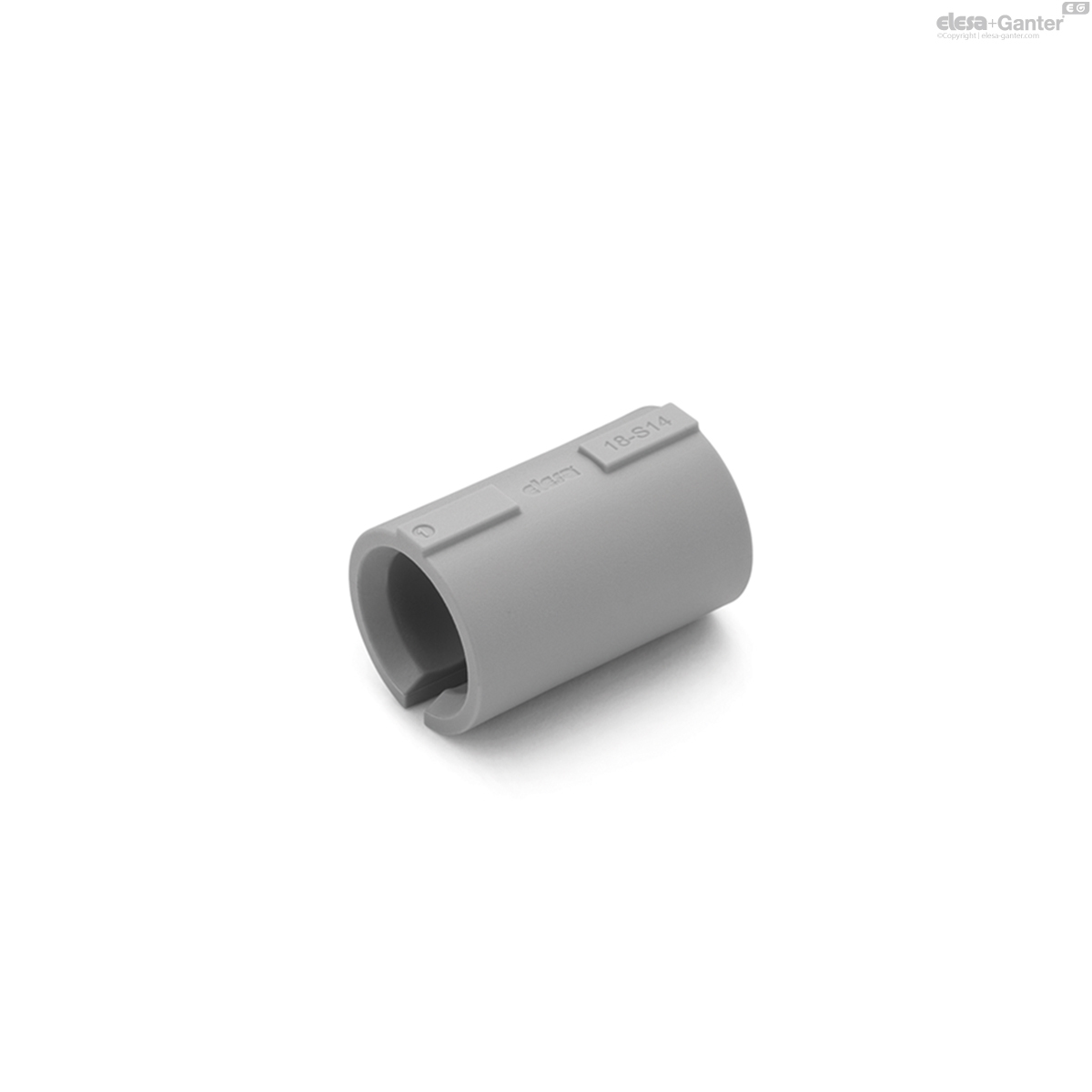

TCC-SJA-18-S14-C33 TCC-SJA Hole reduction sleeves with spherical seats — window grey (RAL 7040)

TCC-SJA-18-S14-C33 TCC-SJA Hole reduction sleeves with spherical seats — window grey (RAL 7040)

for TCC connecting clamps, technopolymer
All sizes and variants
  • PA
  • g10020
  • RoHS
  • ELE OD

Available immediately (1-2 working days)

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
600161-C33
D
18
H
29
d1
14
weight
5
TCC-SJA-18-S14-C33 drawing
TCC-SJA-18-S14-C33 drawing

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, matte finish.

Features and applications

Hole reduction sleeves with spherical seats are suitable for ball diameter ‘d 1’ 14 mm of the base with ball joint TCC-SJB and of the double ball joint TCC-SJD.
