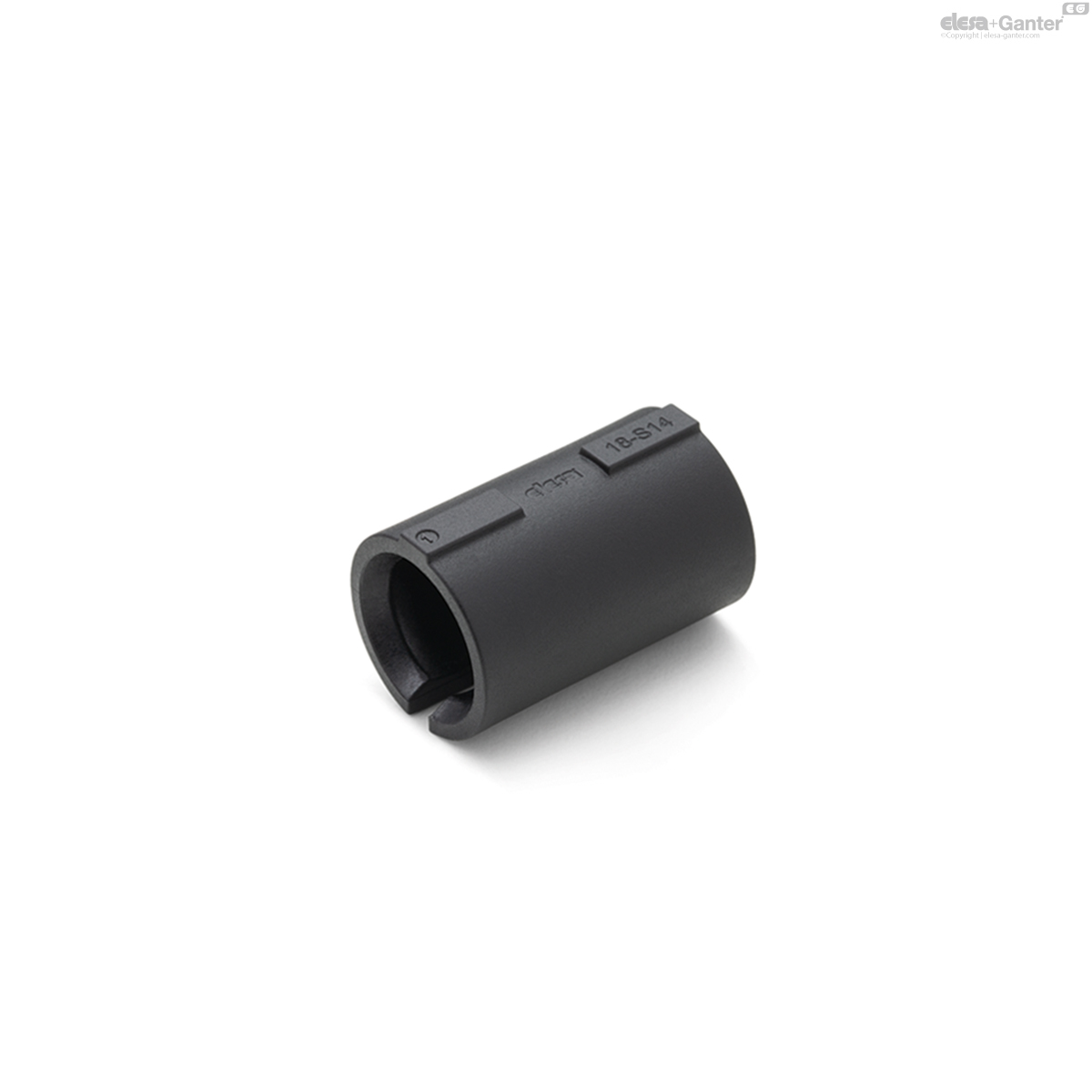

TCC-SJA-18-S14-C9 TCC-SJA Hole reduction sleeves with spherical seats — jet black (RAL 9005)

TCC-SJA-18-S14-C9 TCC-SJA Hole reduction sleeves with spherical seats — jet black (RAL 9005)

for TCC connecting clamps, technopolymer
All sizes and variants
  • PA
  • g10020
  • RoHS
  • ELE OD

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
600161-C9
D
18
H
29
d1
14
weight
5

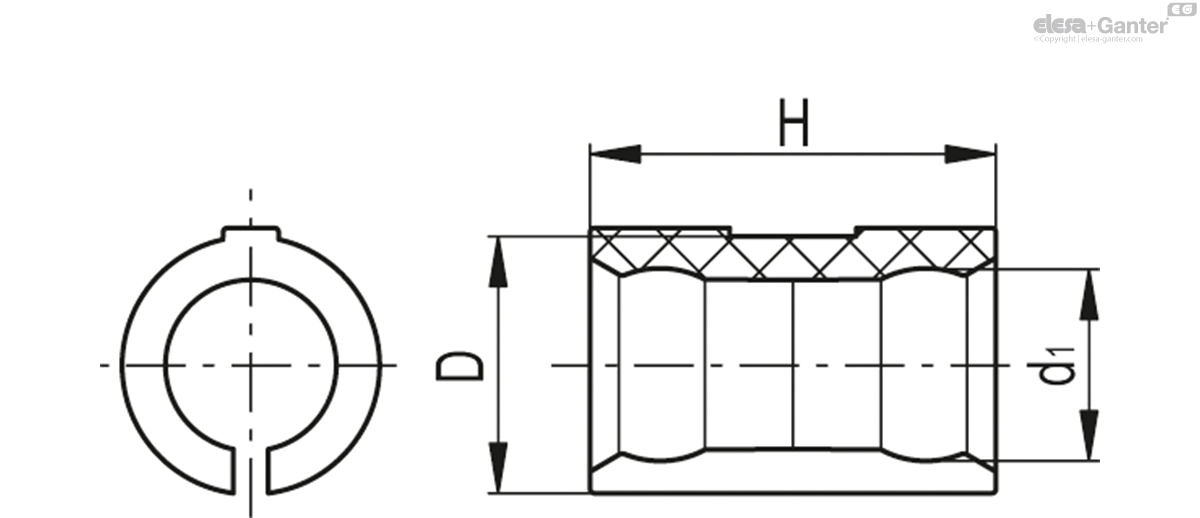

TCC-SJA-18-S14-C9 drawing
TCC-SJA-18-S14-C9 drawing

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, matte finish.

Features and applications

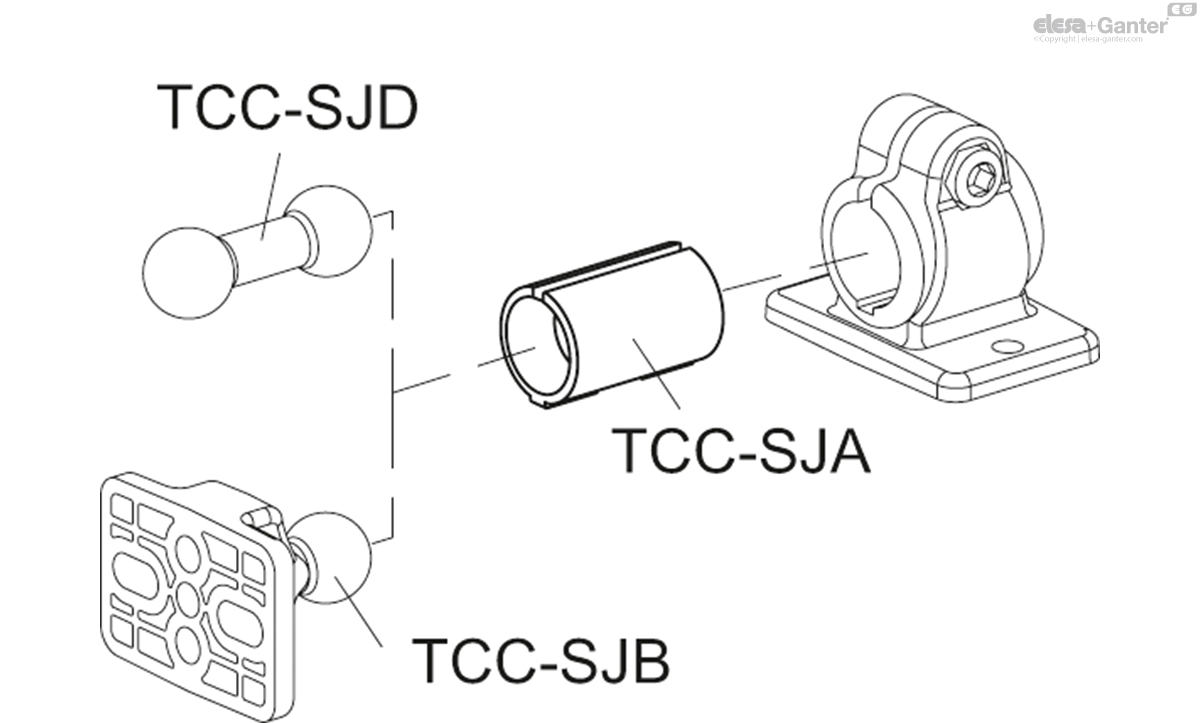

Hole reduction sleeves with spherical seats are suitable for ball diameter ‘d 1’ 14 mm of the base with ball joint TCC-SJB and of the double ball joint TCC-SJD.
