908-ST-M30X1,5-AN DIN 908-ST Steel

908-ST-M30X1,5-AN

DIN 908-ST Steel

Steel / Stainless Steel, with Collar and Internal Hex
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 908

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 908-ST-M30x1,5-AN
d1
M 30 x 1.5
d2 h14
36
d3
30.3
d4
36
l1 ±0.2
16
l2 +0.5
4
s
2
A/F
17
84
908-ST-M30X1,5-AN drawing

Types

  • Type A: Without sealing ring
  • Type AC: With sealing ring in copper
  • Type AA: With sealing ring in aluminum
  • Type AN: With sealing ring in stainless steel

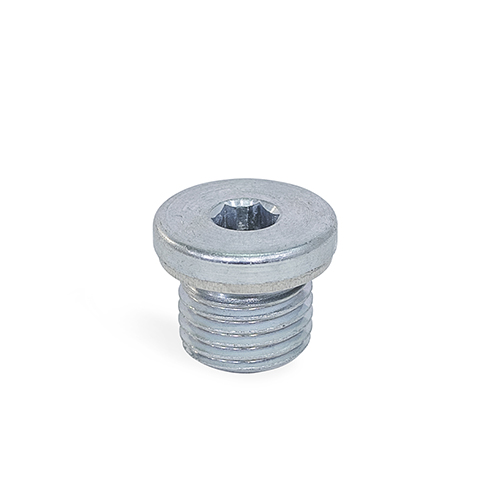

Threaded plug

  • Steel ST
  • Zinc plated, blue passivated
  • Property class 5.8
  • Stainless steel AISI 316 / AISI 316Ti A4

Sealing ring DIN 7603

for type AC / AA / AN

Threaded plugs DIN 908 are used, for example, on filling, drain or inspection openings of gear boxes and hydraulic tanks.
