912.3-M4-6-NI GN 912.3 Socket Cap Screws

912.3-M4-6-NI

GN 912.3 Socket Cap Screws

Stainless Steel, with Reduced Head Diameter, with Internal Hex
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 912.3

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 912.3-M4-6-NI
d1
M 4
Length l
6
d2 ±0.1
5.5
k
4
A/F
3
1

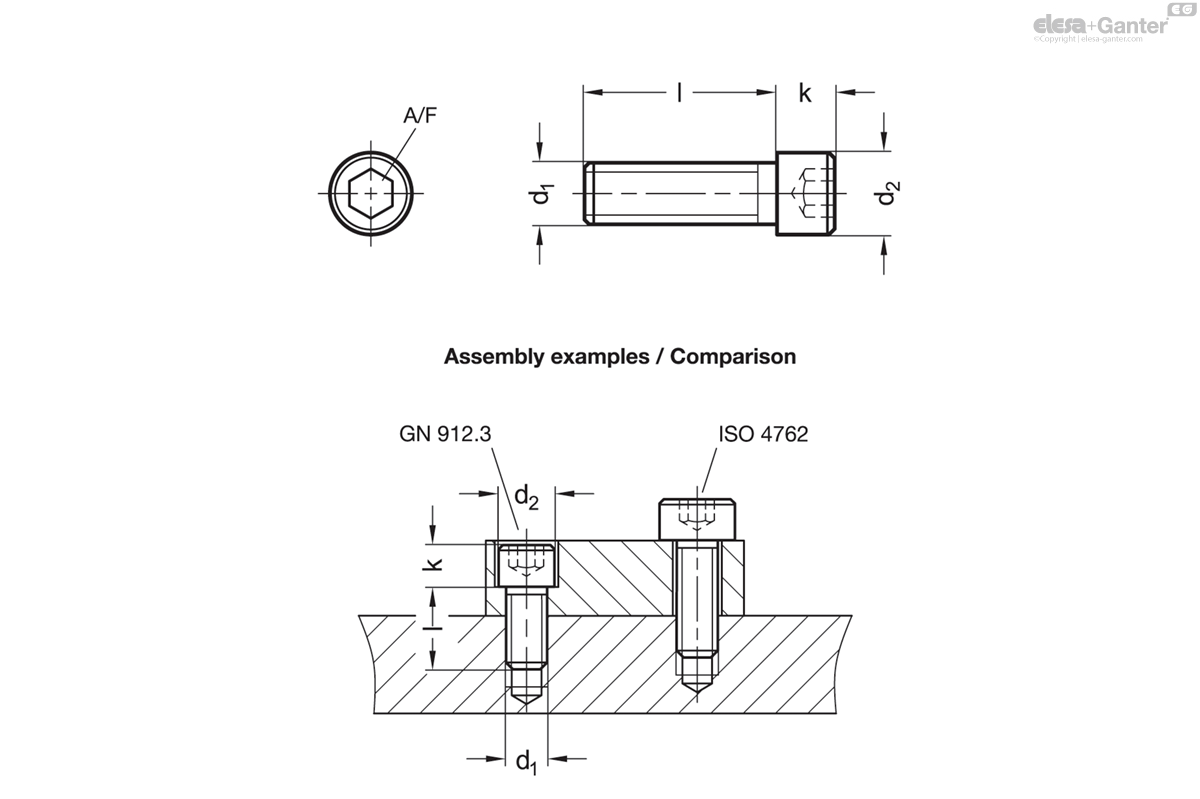

912.3-M4-6-NI drawing

Stainless steel AISI 304 NI

Socket cap screws GN 912.3 have a reduced head diameter compared with socket cap screws ISO 4762.

Thus the screws can be countersunk in places where this would not possible with standard socket cap screws due insufficient to space, such as a small edge distance.

Due to their head geometry, screws according to this specification have a reduced load capacity as per ISO 898-1.
