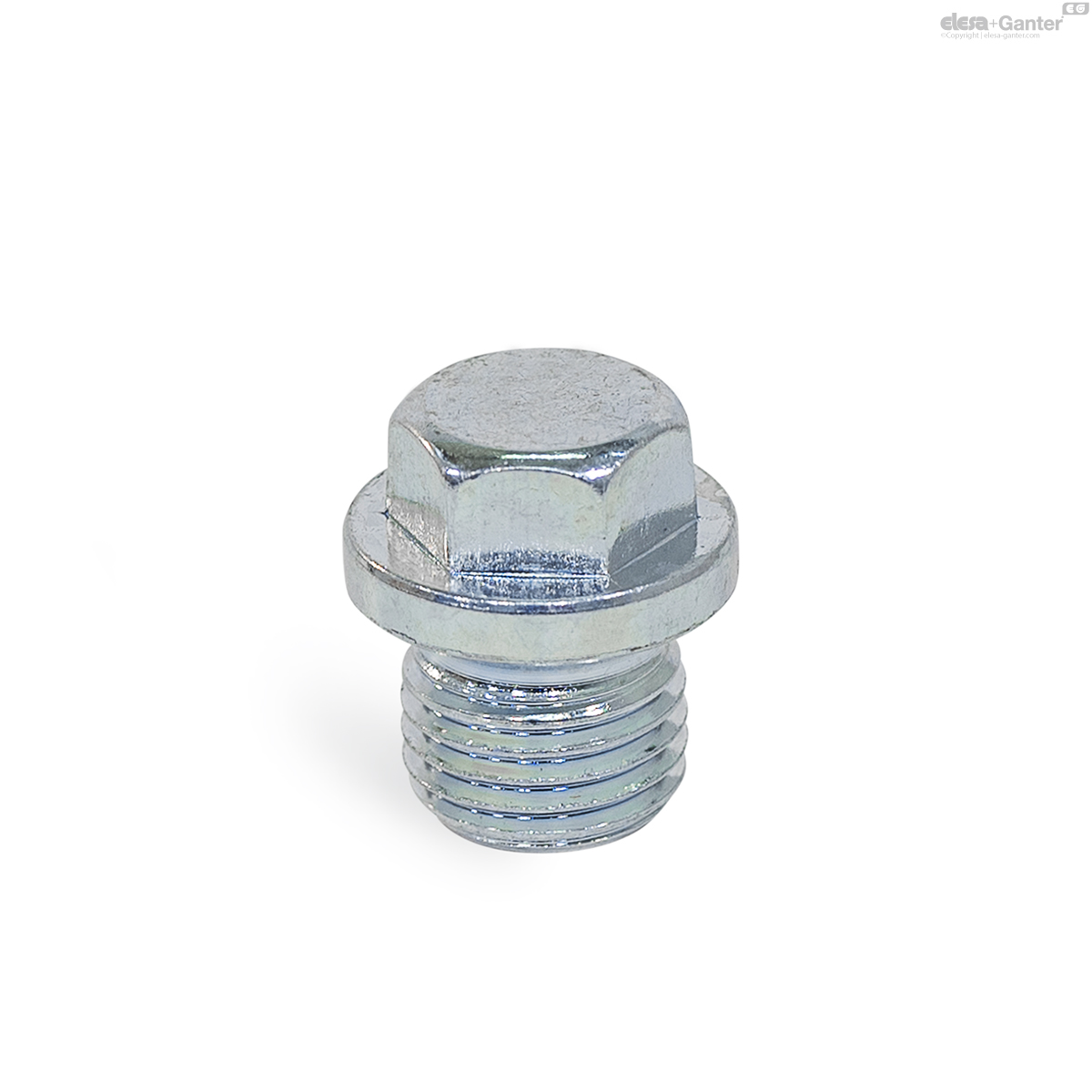

910-ST-G1/8-A DIN 910-ST Steel

910-ST-G1/8-A

DIN 910-ST Steel

Steel / Stainless Steel, with Collar and External Hex
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 910

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 910-ST-G1/8-A
d1
G 1/8
d2 h14
14
d3
10
l1 ±0.2
8
l2 ±0.5
9
l3
6
A/F
10
12

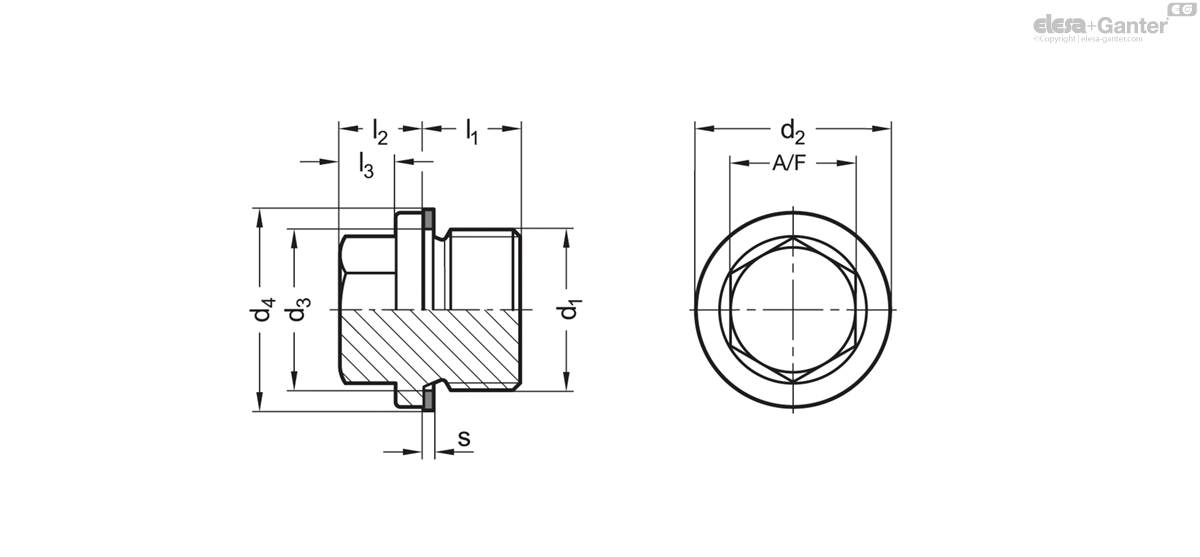

910-ST-G1/8-A drawing

Types

  • Type A: Without sealing ring
  • Type AC: With sealing ring in copper
  • Type AA: With sealing ring in aluminum
  • Type AN: With sealing ring in stainless steel

Threaded plug

  • Steel ST
  • Zinc plated, blue passivated
  • Property class 5.8
  • Stainless steel AISI 316 / AISI 316Ti A4

Sealing ring DIN 7603

for type AC / AA / AN

Threaded plugs DIN 910 are used, for example, on filling, drain or inspection openings of gear boxes and hydraulic tanks.
