VVP-40-G1/4-T-A VVP-40-T-A Oil-proof rubber

VVP-40-G1/4-T-A VVP-40-T-A Oil-proof rubber

Diameter 40 mm, with support, vulcanised rubber
All sizes and variants
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
VV.60501
d
40
d1
G1/4
d2
M8
h
69
h1
52
h2
17
h3
13
h4
35
s
20
F*
[Kg]
3.14
Volume#
[cm3]
23.6
weight
40

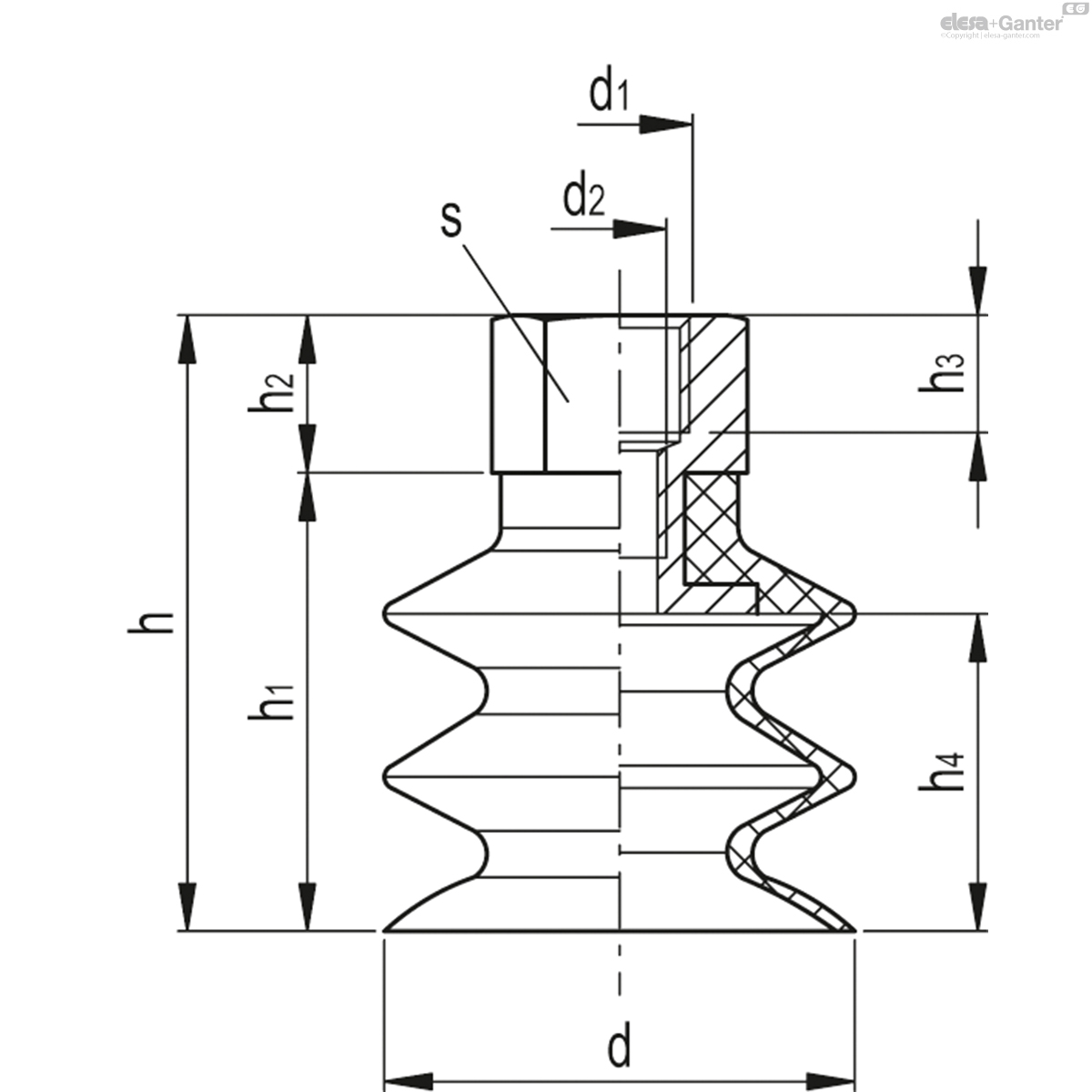

VVP-40-G1/4-T-A drawing
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Video: VVP-40

Material

Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).

Support in anodised aluminium.

Standard executions

  • VVP-40-T-A: oil-proof rubber.
  • VVP-40-T-N: natural rubber.
  • VVP-40-T-S: silicone rubber.

Features and applications

They are specifically indicated for picking up thin sheet metal or glass sheets.

The vacuum cup has a vulcanised treatment which makes it more resistant to abrasion and wear and above all to traction forces, as well as allowing the rubber to degrade less easily making it more resistant to aggressive environmental agents and extending the length of its useful life.

The multi-bellows configuration makes the vacuum cup suitable for different surfaces, even irregular ones, with imperfect flatness or inclined, allowing its use in different applications including the handling of wooden panels (chipboard or pressed) or plastic laminates.

The effective stroke of the bellows is 20 mm.

See Technical Data for vacuum cups.
