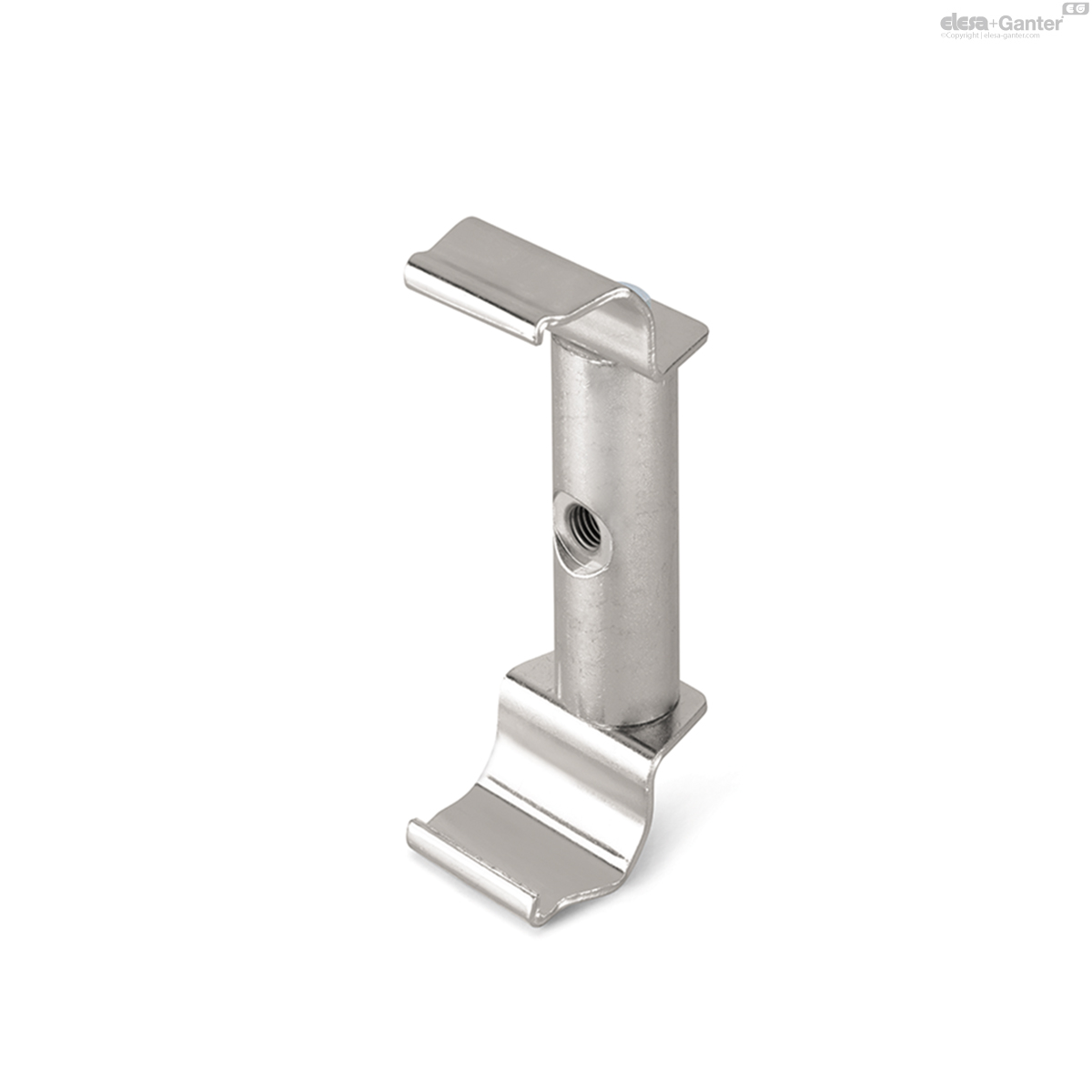

MPG-R-SST-4
For four-track roller side guides
for GLD-SST side guides, stainless steel
Eta: 1-2 weeks All sizes and variants of MPG-R-SST
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

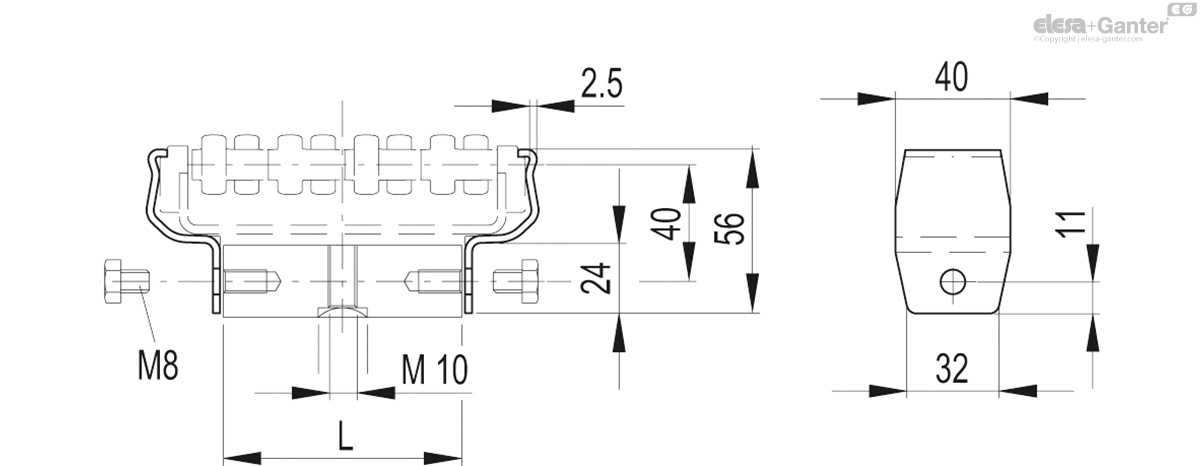

Technical datasheet
Technical data
- Catalogue
- 419364
- L
- 82
- Linear guide rails
- GLD-4-SST
- 410
Material
AISI 304 stainless steel.

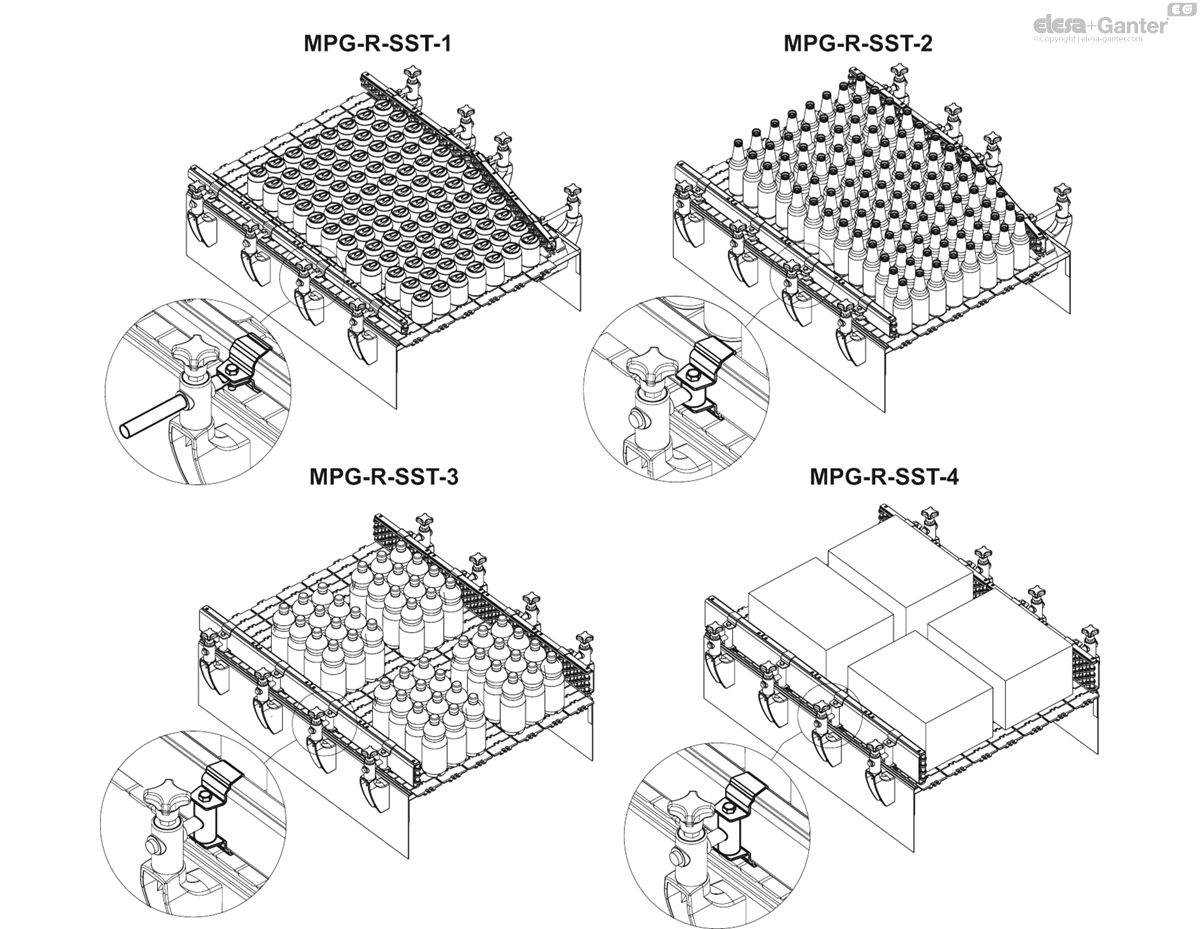

Standard executions
- MPG-R-SST-1: for one-track roller side guides.
- MPG-R-SST-2: for two-track roller side guides.
- MPG-R-SST-3: for three-track roller side guides.
- MPG-R-SST-4: for four-track roller side guides.
Features and applications
The MPG-R-SST guide rail clamps are used for fixing the GLD-SST side guides.
They are supplied in kits including clamps, pin, screw and nut (MPG-R-SST-1), or clamps, screws and spacer (MPG-R-SST-2 / MPG-R-SST-3 / MPG-R-SST-4).
Supplied not assembled.
Accessories on request
MPG-P: fixing pin (419513 MPG-P16-M10x17) for use in combination with MPG-R-SST-2 / MPG-R-SST-3 / MPG-R-SST-4 clamps.
