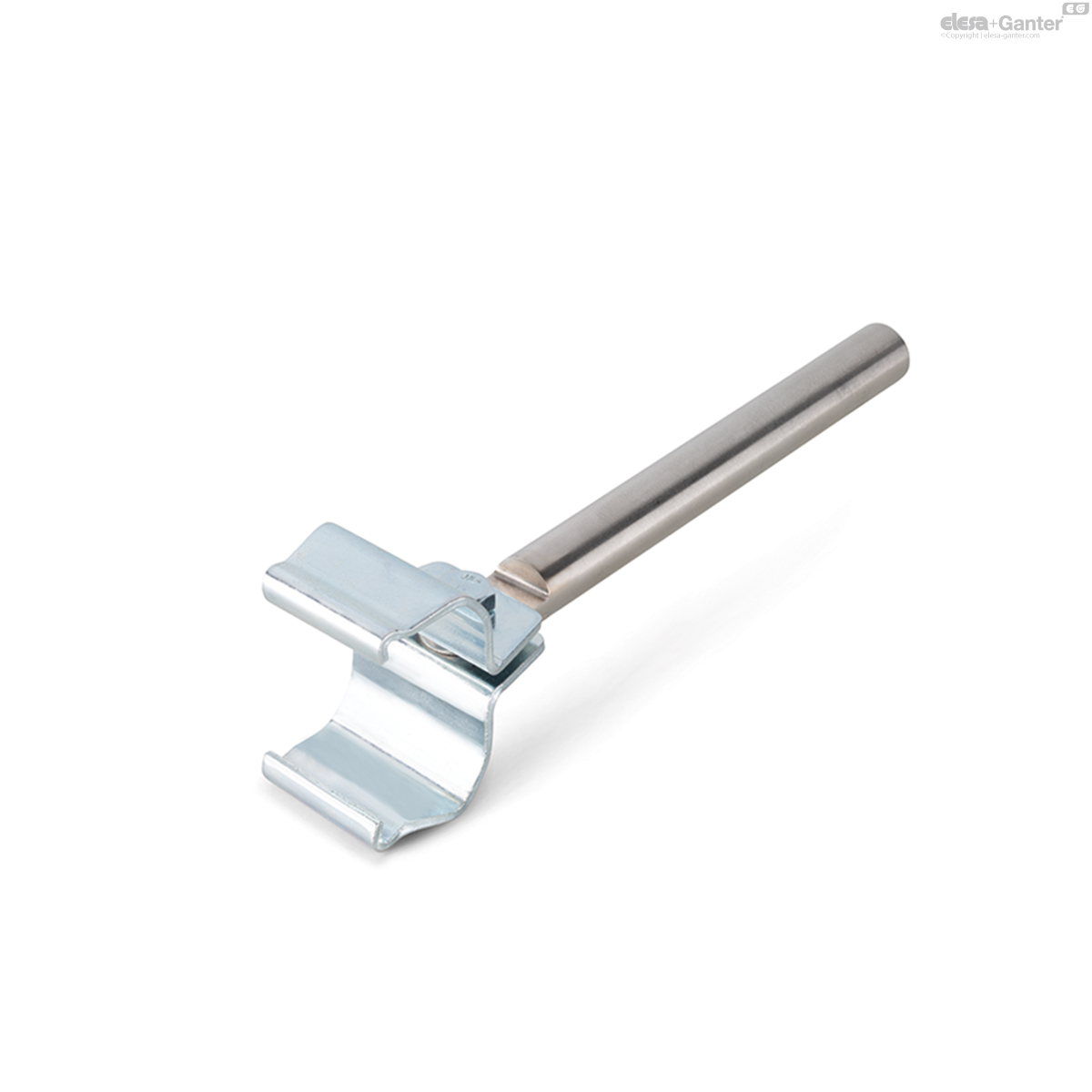

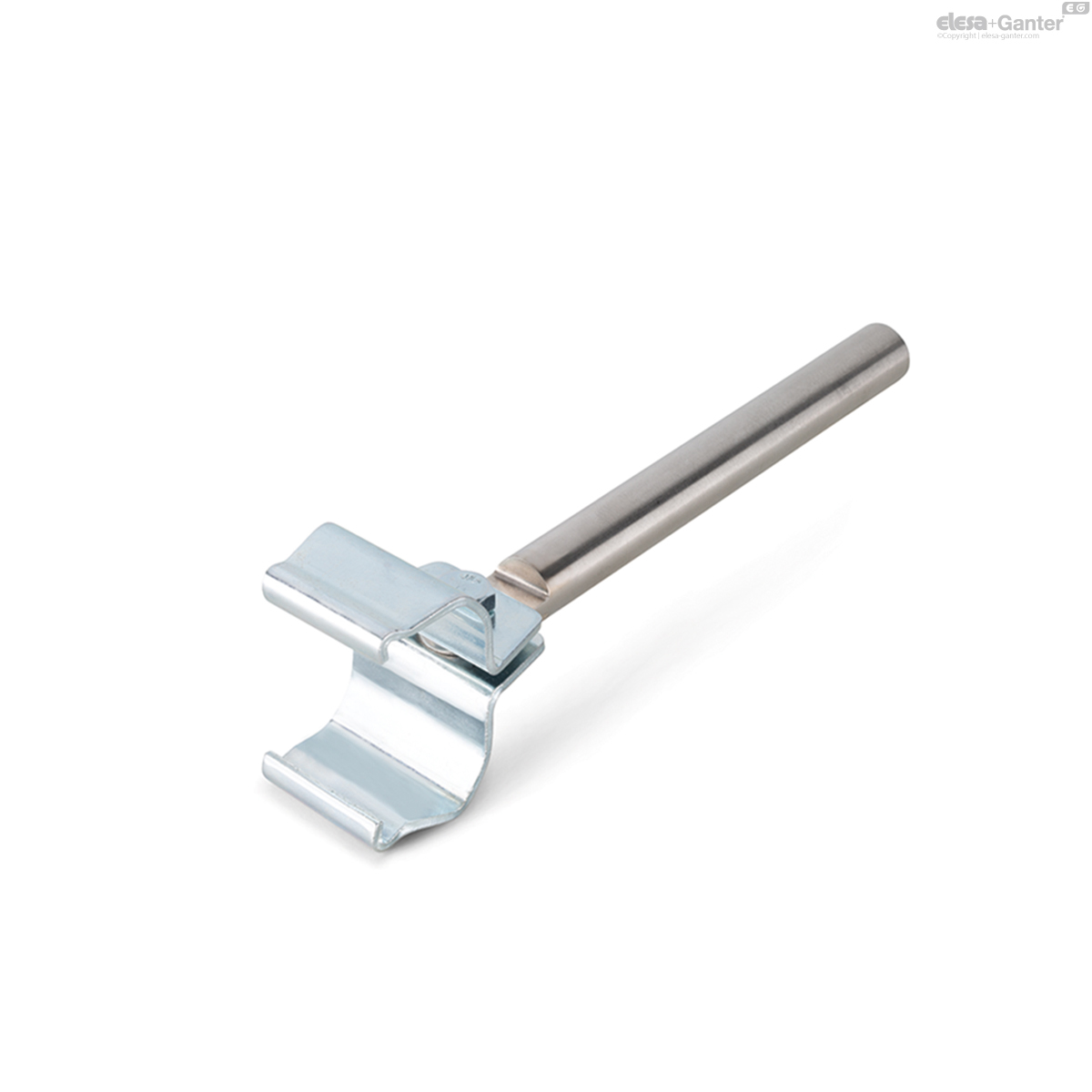

MPG-R-AZ-1
For one-track roller side guides
for GLD-AZ side guides, steel
Eta: 1-2 weeks All sizes and variants of MPG-R-AZ
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

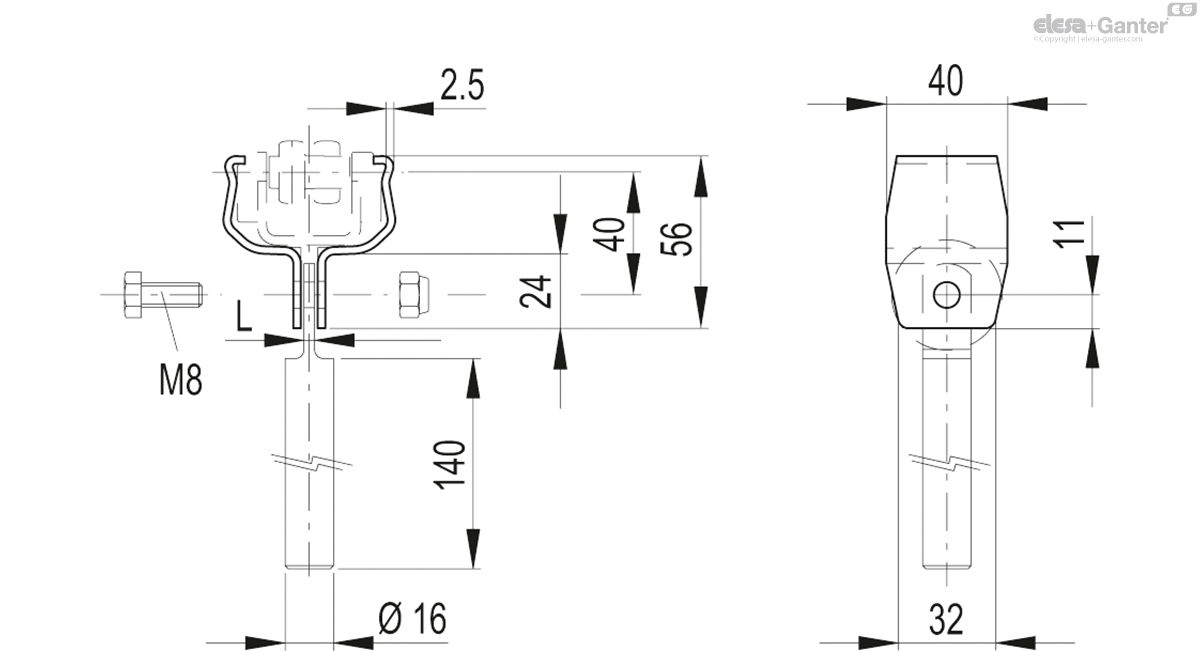

Technical datasheet
Technical data
- Catalogue
- 419351
- L
- 3.5
- Linear guide rails
- GLD-1-AZ
- 350
Material
Zinc-plated steel.
Standard executions
- MPG-R-AZ-1: for one-track roller side guides.
- MPG-R-AZ-2: for two-track roller side guides.
- MPG-R-AZ-3: for three-track roller side guides.
- MPG-R-AZ-4: for four-track roller side guides.
Features and applications
The MPG-R-AZ guide rail clamps are used for fixing the GLD-AZ side guides.
They are supplied in kits including clamps, pin, screw and nut (MPG-R-AZ-1), or clamps, screws and spacer (MPG-R-AZ-2 / MPG-R-AZ-3 / MPG-R-AZ- 4).
Supplied unassembled.
Accessories on request
MPG-P: fixing pin (419513 MPG-P16-M10x17) for use in combination with MPG-R-AZ-2 / MPG-R-AZ-3 / MPG-R-AZ-4 clamps.
