872-60-50-NC
GN 872 Clamping Jaws
for Power Clamps GN 864 / GN 865 / GN 866, Steel
Eta: 1-2 weeks All sizes and variants of GN 872
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

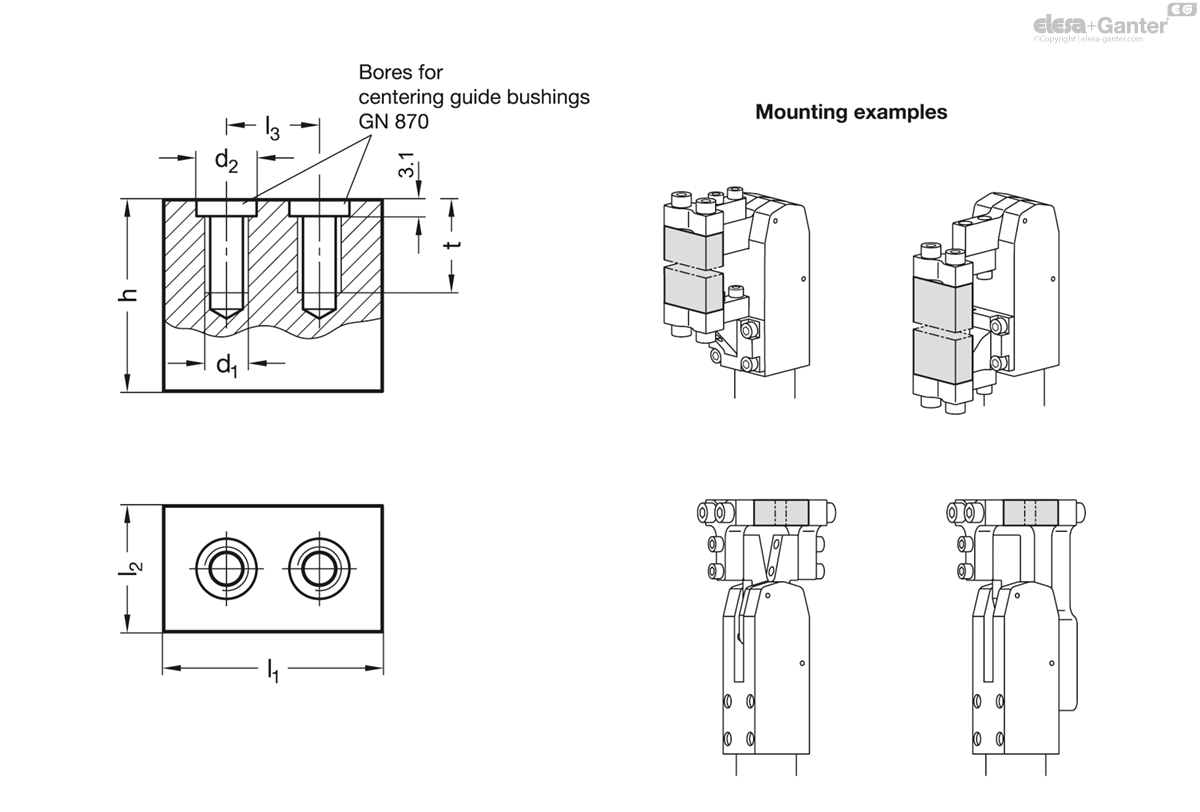

Technical data
- Catalogue
- GN 872-60-50-NC
- l1
- 60
- h
- 50
- d1
- M 10
- d2 H8/h6
- 13
- l2
- 20
- l3 ±0.01
- 40
- t
- 15
- 470
Steel C45
Chemically nickel plated NC
Clamping jaws GN 872 are designed to be modified by the user into individual clamping designs, such as prisms and radii. They are also suitable for welding.
The fastening thread and centering bores are adapted to the dimensions of the clamping arms and static holders to enable quick and easy assembly.
Centering guide bushings GN 870 are not included.
- Centering Guide Bushings GN 870
