VVA-17-S Silicone rubber, without support

VVA-17-S

Silicone rubber, without support

Diameter 17mm, with or without support, rubber
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of VVA-17

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
VV.45005
d
17
d1
3.8
d2
9
h
11
h1
1
F*
[Kg]
0.6
Volume#
[mm3]
213
1

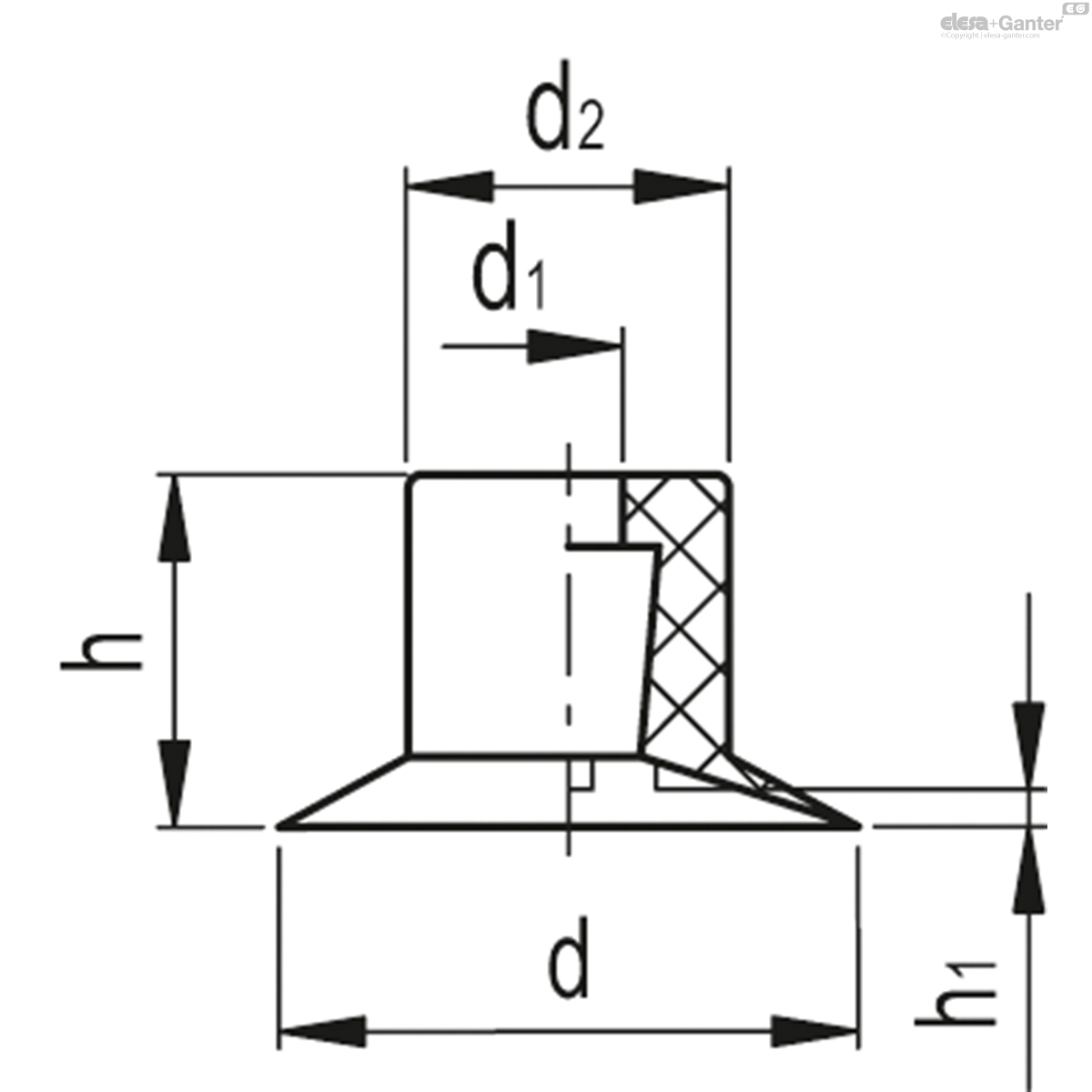

VVA-17-S drawing
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
video

Material

Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).

AVP nickel-plated bracket.

Standard executions

  • VVA-17-A: oil-proof rubber, without support.
  • VVA-17-N: natural rubber, without support.
  • VVA-17-S: silicone rubber, without support.
  • VVA-17-T-A: oil-proof rubber, with support.
  • VVA-17-T-N: natural rubber, with support.
  • VVA-17-T-S: silicone rubber, with support.

Applications

They are widely used in the paper converting sector, in particular for the handling of paper sheets and labels.

See Technical Data for vacuum cups .
