MI.404/40 N-8 MI.404 Control knurled knobs

MI.404/40 N-8

MI.404 Control knurled knobs

With pointer, Duroplast
  • Icons/__logo__RoHS__.png
  • Icons/__logo__PF__.png
  • Icons/__logo__g11020__.png
  • Icons/__logo__ELE_OD__.png

Eta: 1-2 weeks All sizes and variants of MI.404

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
66853
D
40
dH10
8
L
20.5
l1
4
h
17.5
h1
7
f
M5
16

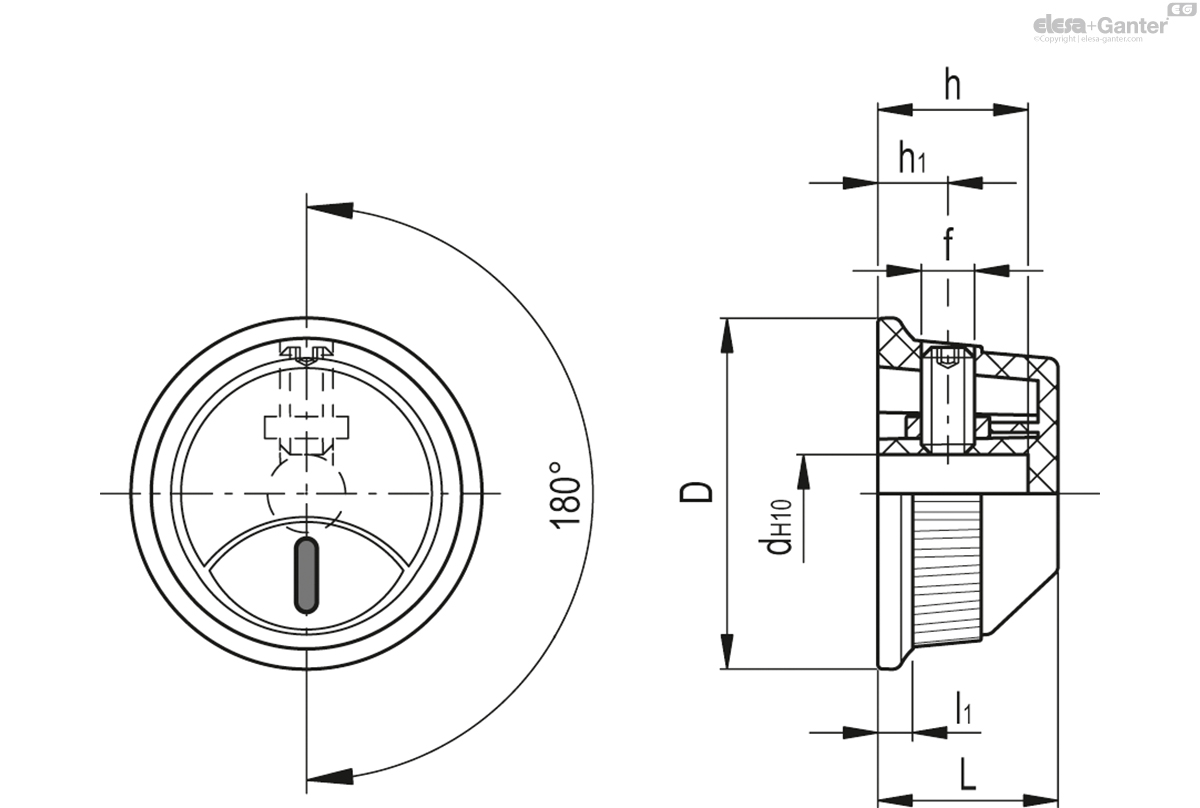

MI.404/40 N-8 drawing

Material

Phenolic based (PF) Duroplast, black colour, glossy finish.

White pad-printed index line, placed at 180° from the transverse pressure screw.

Standard execution

Plain blind hole, fixing by means of a transverse pressure screw according to UNI 5929-85 in AISI 304 stainless steel (headless screw with hexagonal socket and cupped end) which screws into the AISI 304 stainless steel nut.

Supplied.
