3492-8-M4-B-NI-GS GN 3492 Mounting Blocks

3492-8-M4-B-NI-GS

GN 3492 Mounting Blocks

Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

Eta: 1-2 weeks All sizes and variants of GN 3492

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 3492-8-M4-B-NI-GS
b1
8
d1
M 4
b2
7
d2 For screw
M 3
h1
2.5
h2
9.5
Length l
25
m1
6
m2
16
m3
1.5
5

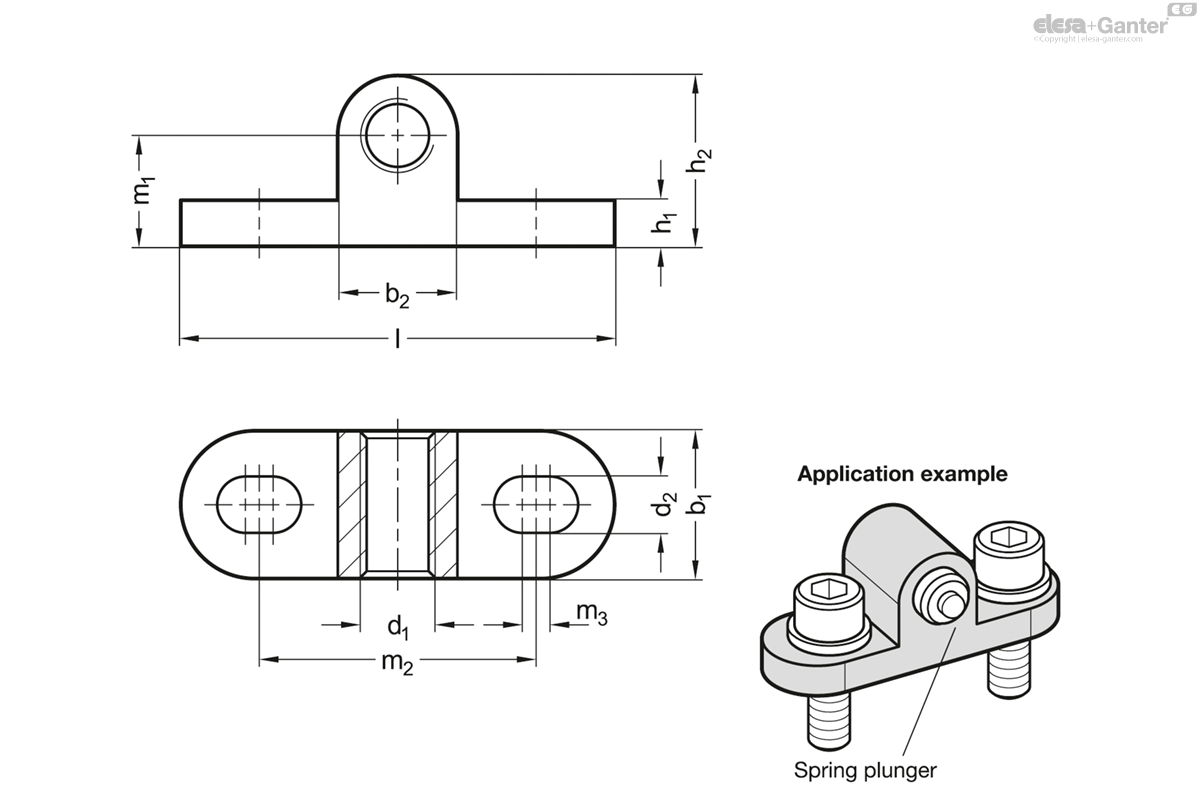

3492-8-M4-B-NI-GS drawing

Type

  • Type B: Mounting on both sides

Stainless steel precision casting AISI CF-8 NI

Matte shot-blasted finish GS

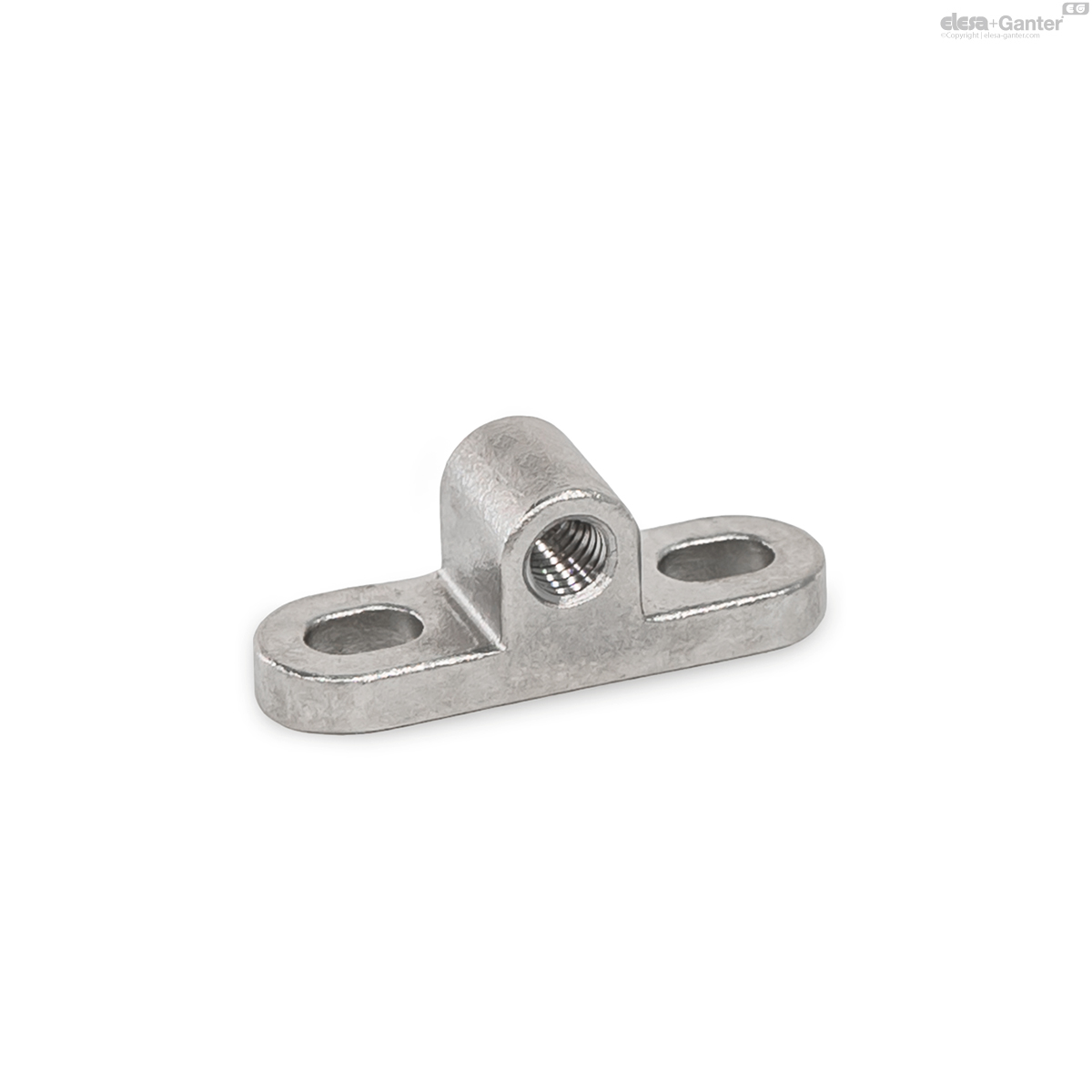

Mounting blocks GN 3492 quickly and easily fasten standard parts with external thread, such as spring plungers or setting bolts, perpendicular to the mounting plane. The slotted holes and the locating thread allow for positioning of the mounting blocks in two directions.

To prevent unintentional adjustment, the standard part can be secured with a clamping thread lock, a lock nut or a grub screw.
