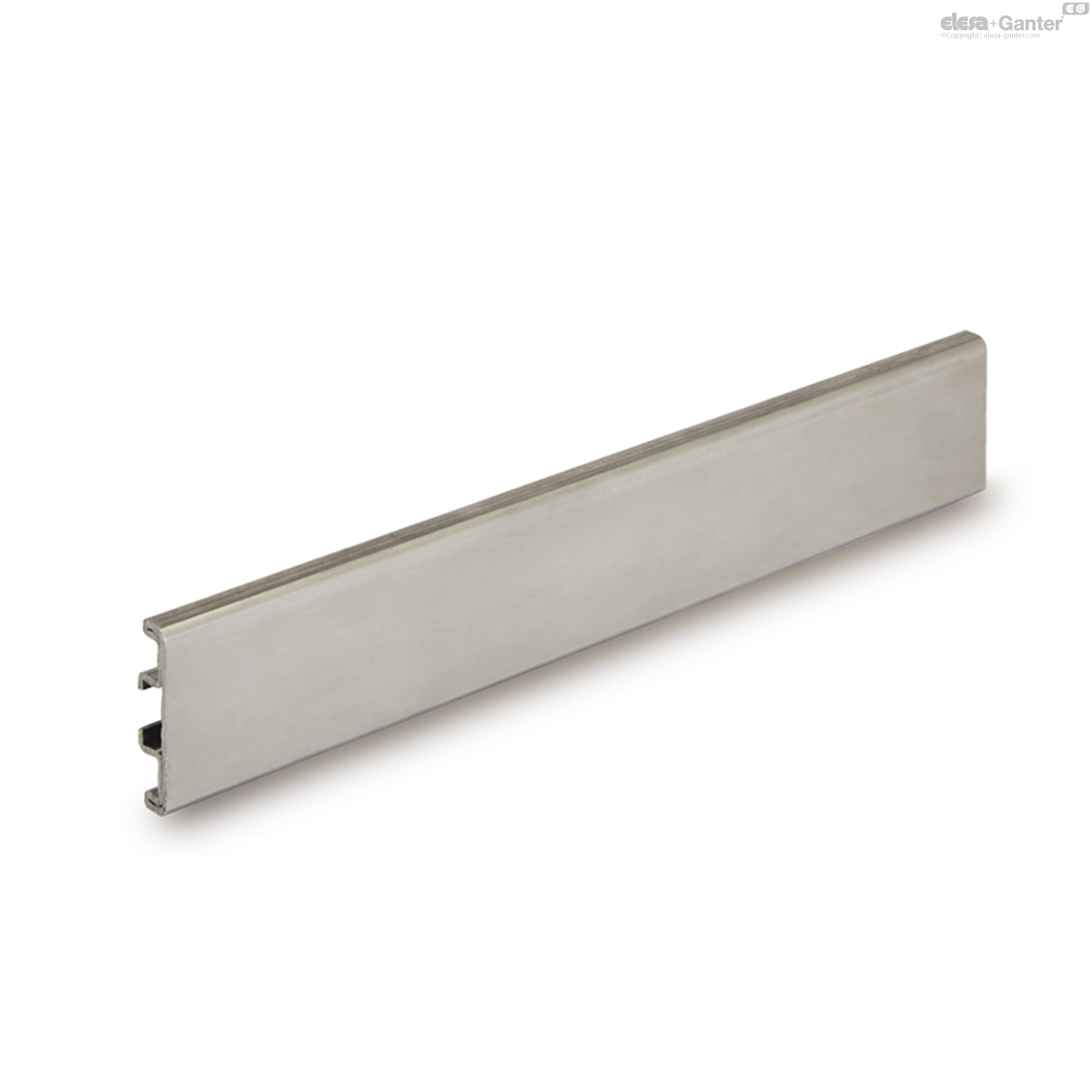

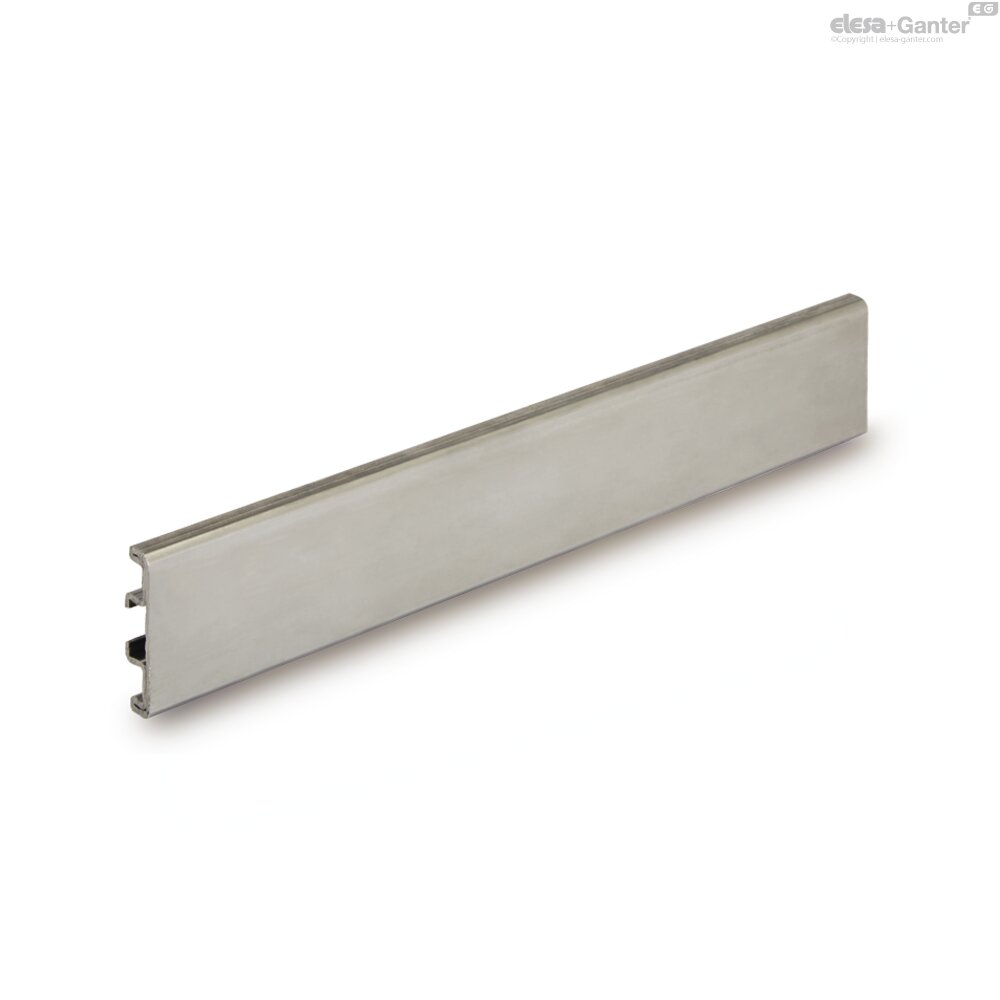

PRB-GLB-40-1500 PRB-GLB Profile for side guides

PRB-GLB-40-1500

PRB-GLB Profile for side guides

for GLB, stainless steel
All sizes and variants
  • INOX
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
419186
L
1500
weight
1820

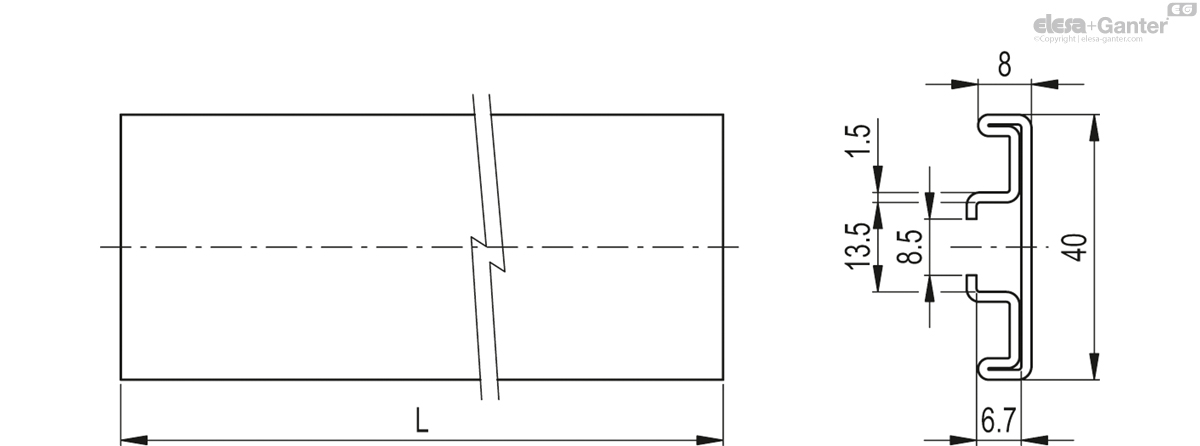

PRB-GLB-40-1500 drawing
PRB-GLB-40-1500 drawing
PRB-GLB-40-1500 drawing

Material

AISI 304 stainless steel.

Features and applications

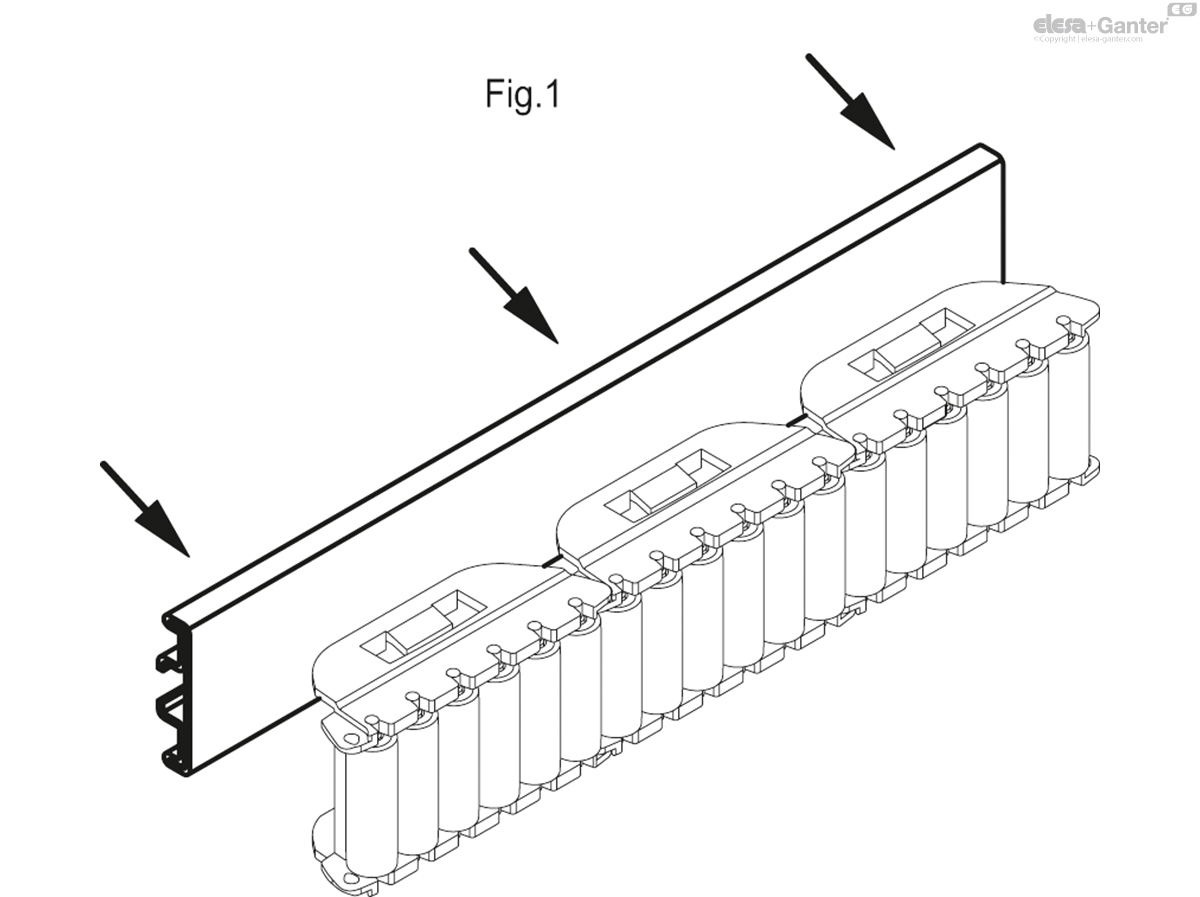

PRB-GLB profile is used for the assembly of GLB-1 and GLB-2 side guides (Fig.1).

Supplied in bars of 1500 or 3000 mm length.




Accessories on request

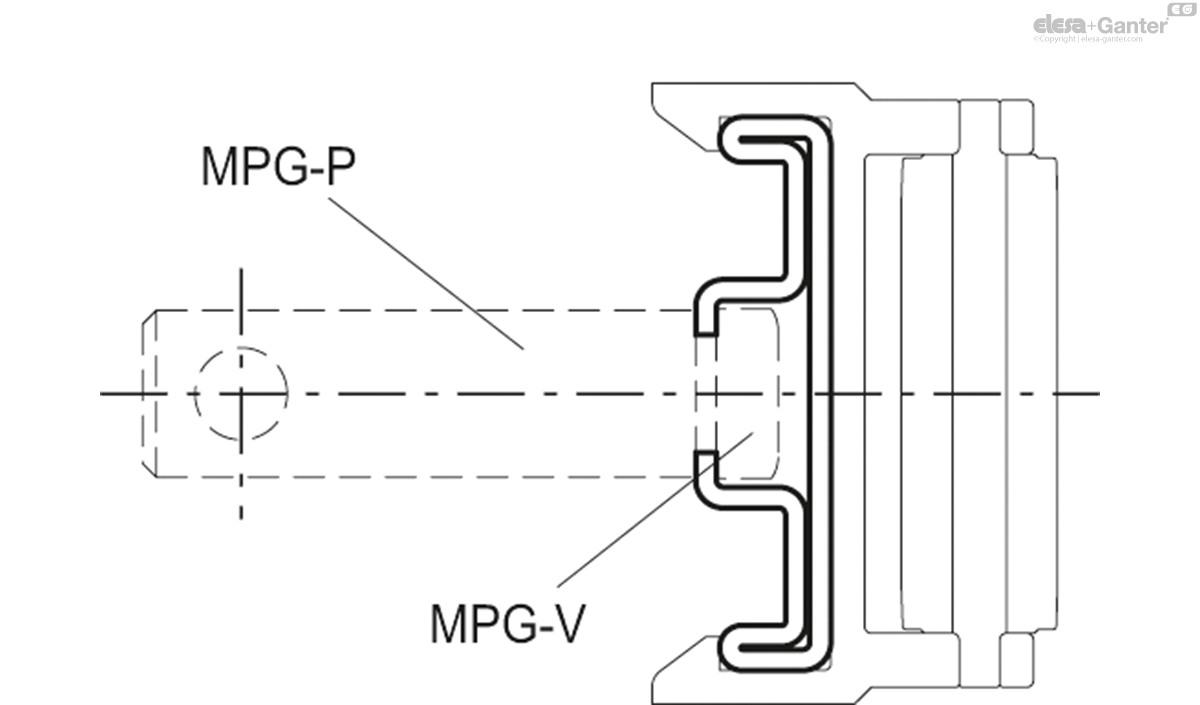

  • MPG-V: zinc-plated steel hammer head screw.
