1135-M8-12-ST
GN 1135-ST Steel
Eta: 1-2 weeks All sizes and variants of GN 1135
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 1135-M8-12-ST
- d1
- M 8
- l1
- 12
- d2 -0.07
- 6.62
- d3
- 20
- d4
- 38
- d5
- 33.5
- h1
- 123.7
- h2
- 54.9
- h3
- 25.7
- h4
- 42.5
- k1
- 11
- k2
- 68
- k3
- 46
- l2
- 17.8
- l3
- 8
- Max. torque
in Nm - 2
- Nominal load in kN
F1 - 2.1
- Nominal load in kN
F2 - 0.9
- Nominal load in kN
F3 - 0.8
- 612
Steel ST
- Pin, shackle
- Heat-treated, manganese phosphated
Stainless steel NI
- Pin, AISI 630
- Precipitation hardened
- Shackle, AISI 316Ti
Threaded segments
- Stainless steel AISI 630
- Precipitation hardened
Push button
Aluminum, orange anodized
Spring
Stainless steel

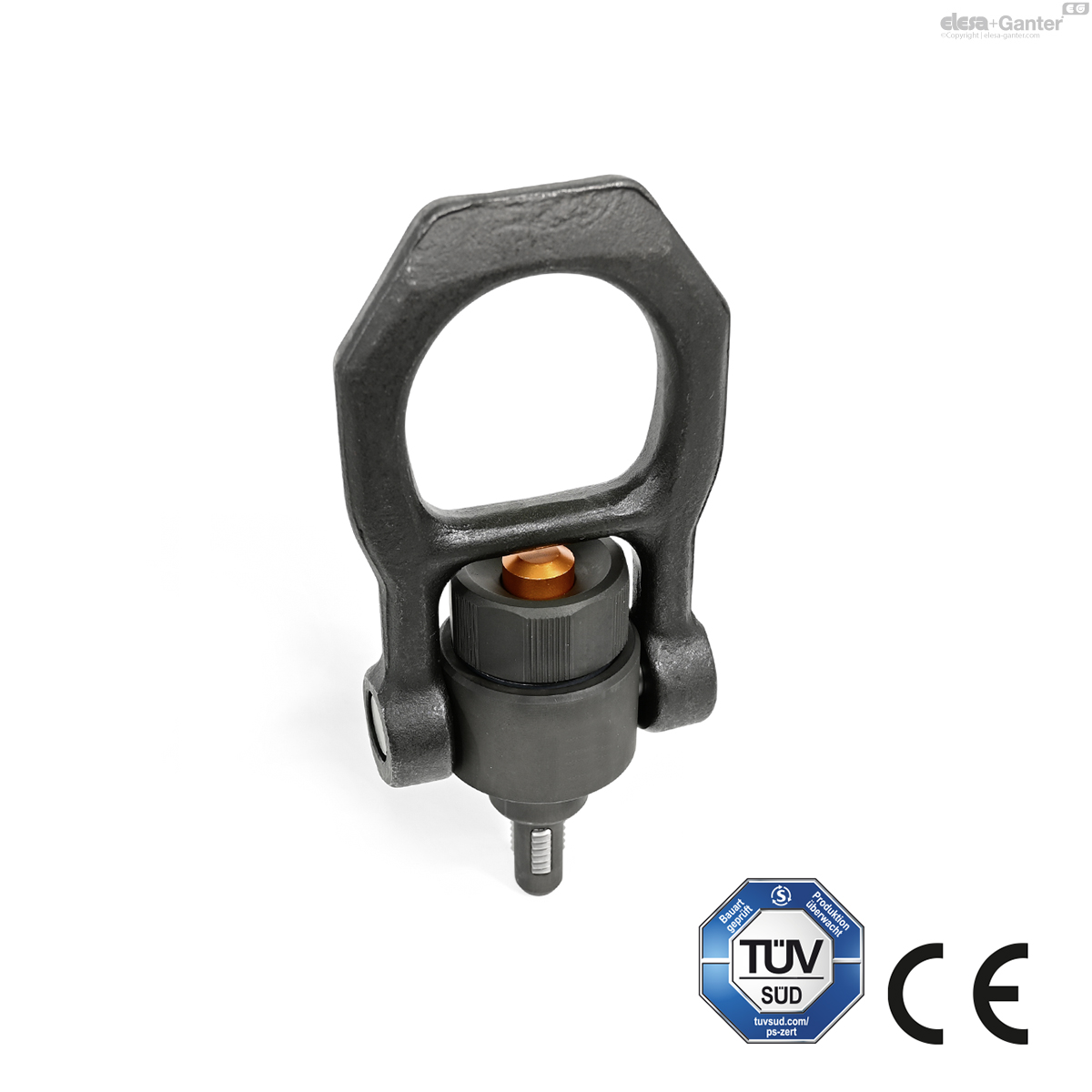

Threaded lifting pins GN 1135 are support elements designed for quick and easy use. Pressing the operation button unlocks the threaded segments, allowing the pin to be moved in or out of the mounting thread. This eliminates the time-consuming process of screwing in or out encountered with typical lifting gear, such as lifting eye bolts.
Assuming sufficient material strength, only true-to-gauge threaded holes are required to make use of the threaded lifting pins.
The shackle swivels by 180°, fully rotates around the pin and always aligns itself in the direction of load without causing the pin to turn. This prevents the threaded lifting pin from being screwed out of the thread and the workpiece can be lifted safely. A safety bar protects the button from unintentional operation.
For further application guidelines, see the operating instructions enclosed with every threaded lifting pin
