842-360-AS-NI

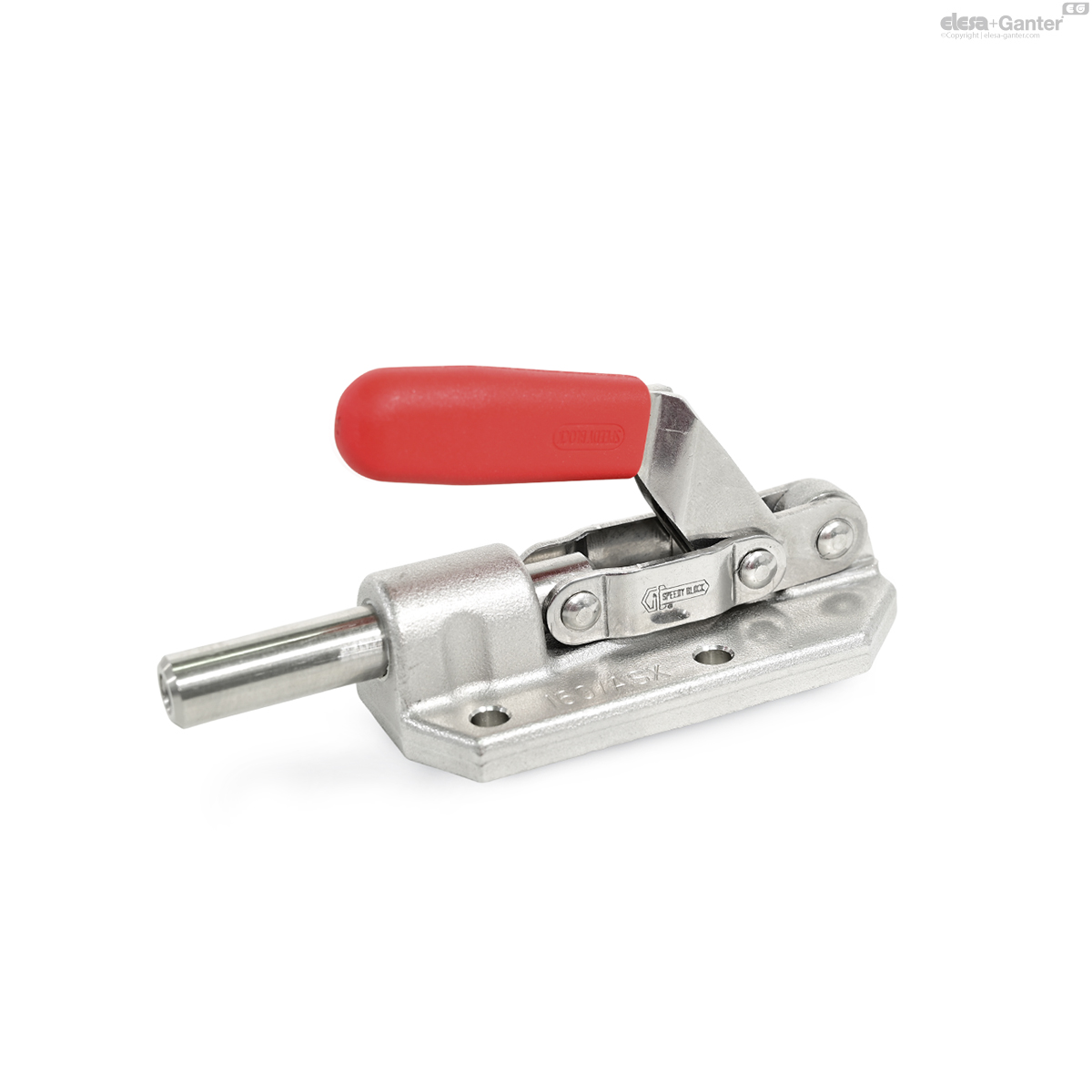

GN 842-NI Stainless steel
Steel / Stainless Steel, for Push-Pull Clamping
Eta: 1-2 weeks All sizes and variants of GN 842
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

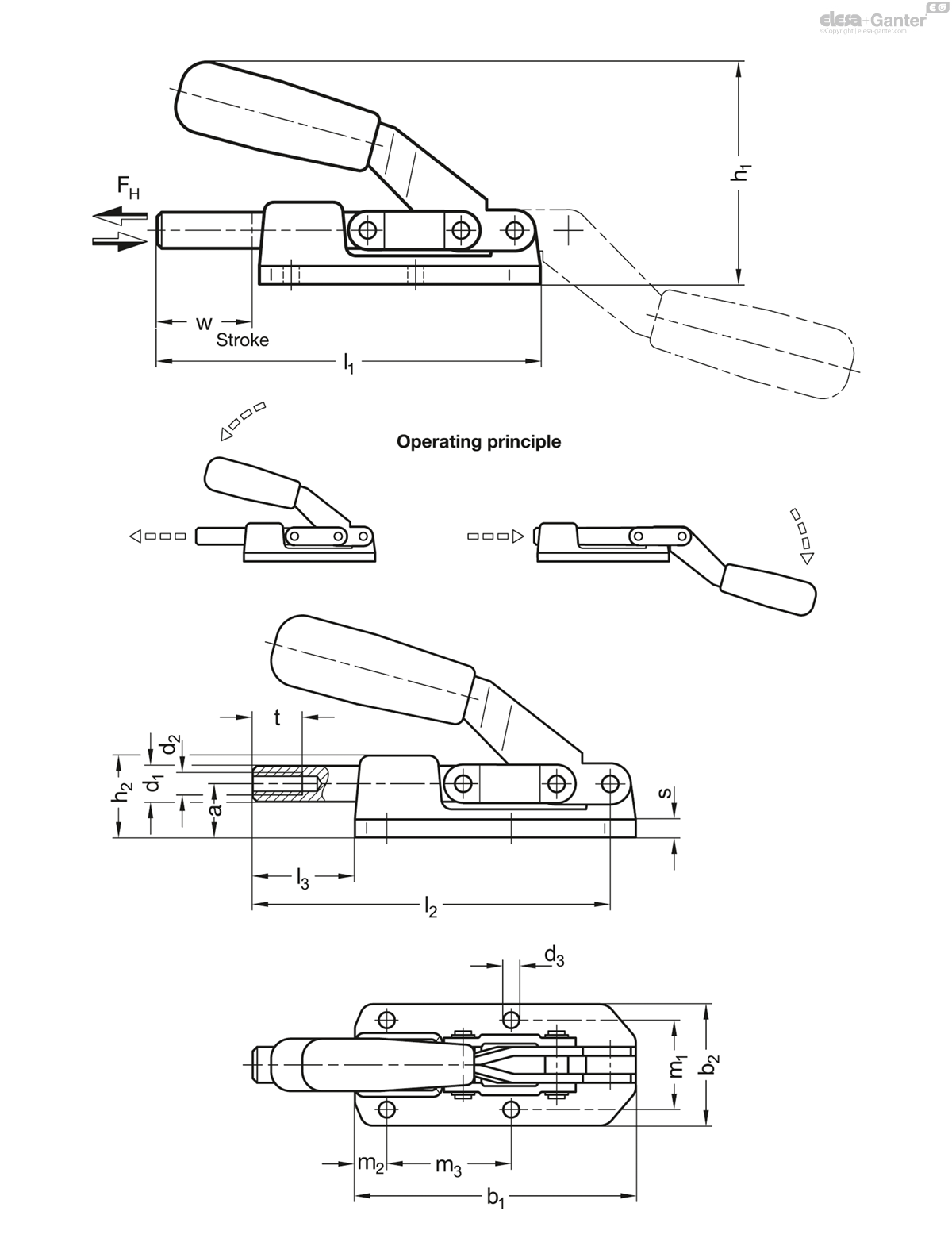

Technical datasheet
Technical data
- Catalogue
- GN 842-360-AS-NI
- Size
- 360
- FH in N
- 5600
- a
- 25
- b1
- 90
- b2
- 45.5
- d1
- 12
- d2
- M 8
- d3
- 5.5
- h1 ≈
- 75
- h2 ≈
- 34.5
- l1
- 122
- l2 ≈
- 114
- l3
- 32
- m1
- 33.5
- m2
- 30
- m3
- 36.5
- s
- 7
- t
- 15
- w
- 32
- 490
Type
- Type AS: Body forged
Steel
- Body manganese phosphated
- Sheet metal, case-hardened steel C10
Zinc plated, blue passivated
- Plunger steel St 37
Zinc plated, blue passivated
- Bearing pins (rivets)
Case-hardened
Zinc plated, blue passivated
Stainless steel NI
- Body AISI 304
- Sheet metal AISI 304
- Plunger AISI 303
- Bearing pins (rivets) AISI 304
All moving parts
Lubricated with special grease
Solid designed plastic handle
Red, oil resistant
Push-pull type toggle clamps GN 842 can be used for very high holding capacities thanks to their massive and sturdy body.
On the size 70, the mounting holes are provided with cylindrical countersinks for the use of hexagon socket head screws DIN 912-M4.
- Clamping Screws
