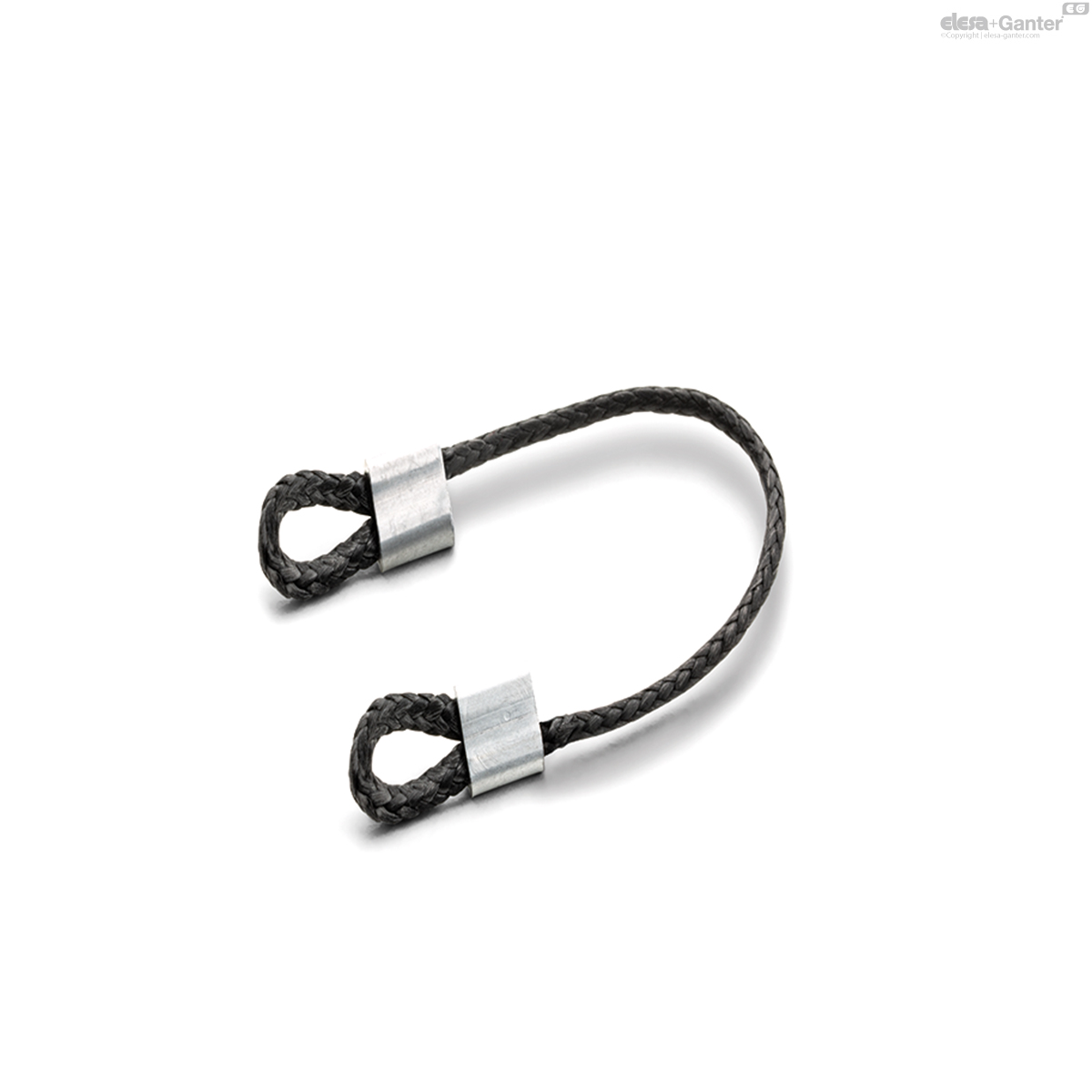

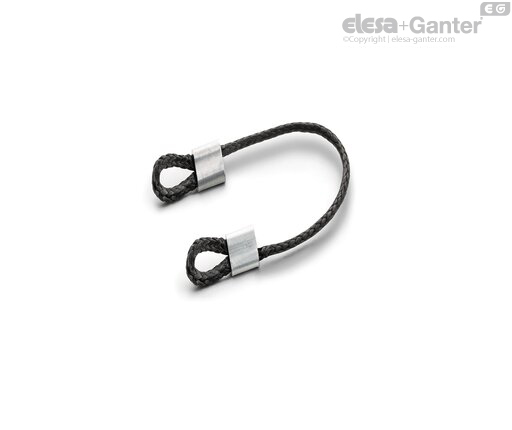

CV-T-150 CV-T Without rings and without plates

CV-T-150

CV-T Without rings and without plates

Polyethylene and stainless steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__g6030__.png
  • Icons/__logo__HMWPE__.png

Eta: 1-2 weeks All sizes and variants of CV-T

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
76915
l
150
Max. static load
[N]
300
5

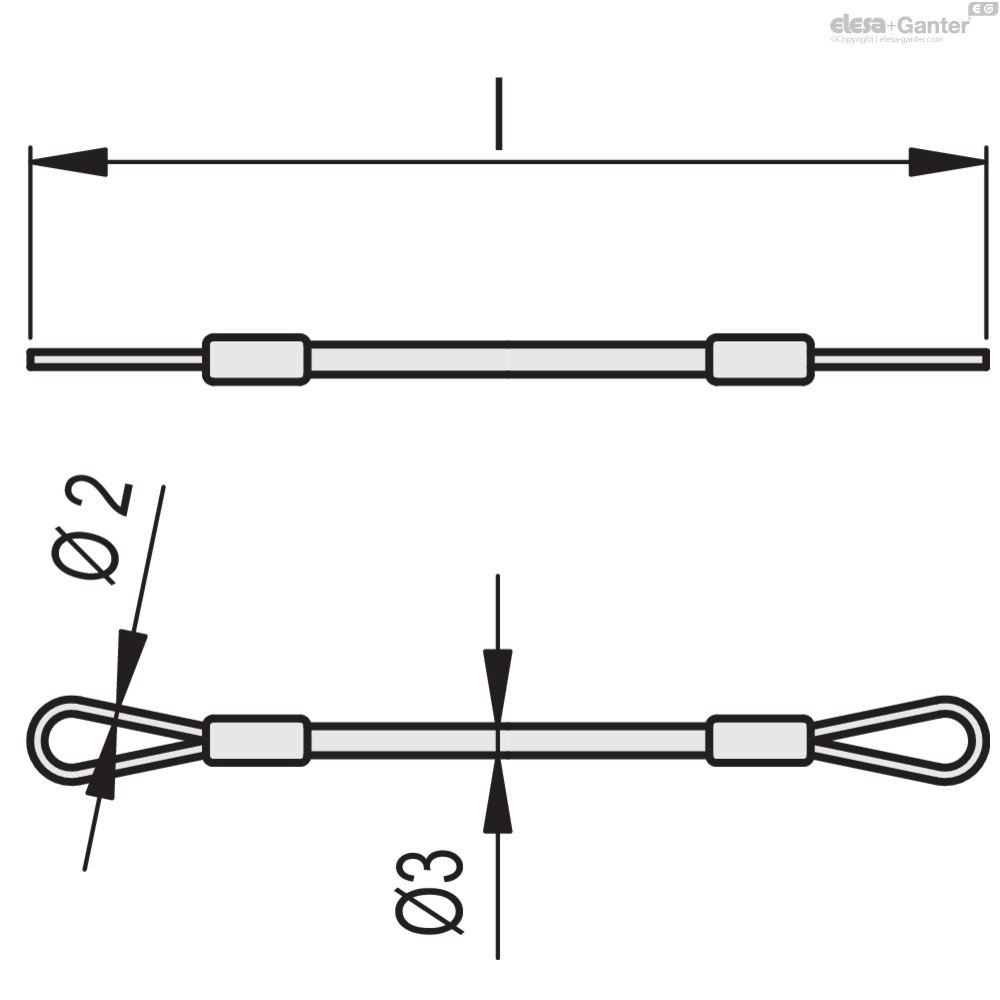

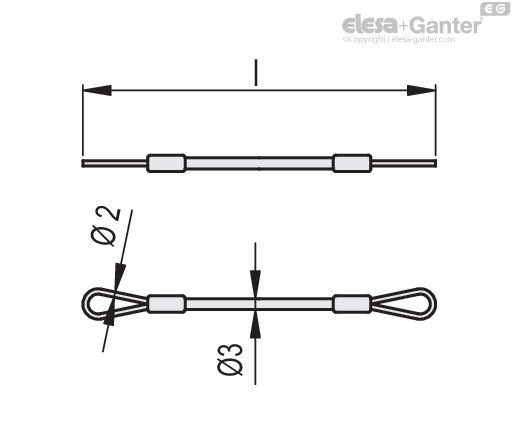

CV-T-150 drawing
CV-T-150 drawing

Cable

High-modulus polyethylene (HMWPE), black.

Standard executions

AISI 304 stainless steel fixing plate.

NERINOX treated stainless steel ring with two coils.

  • CV-T-2A: cable with two clamping rings.
  • CV-T-A-P: cable with one ring and one clamping plate.
  • CV-T-2P: cable with two clamping plates.
  • CV-T: cable without rings and without plates.
  • CV-T-P: cable without rings and with one plates.

Features and applications

CV-T cables are light yet remarkably tough.

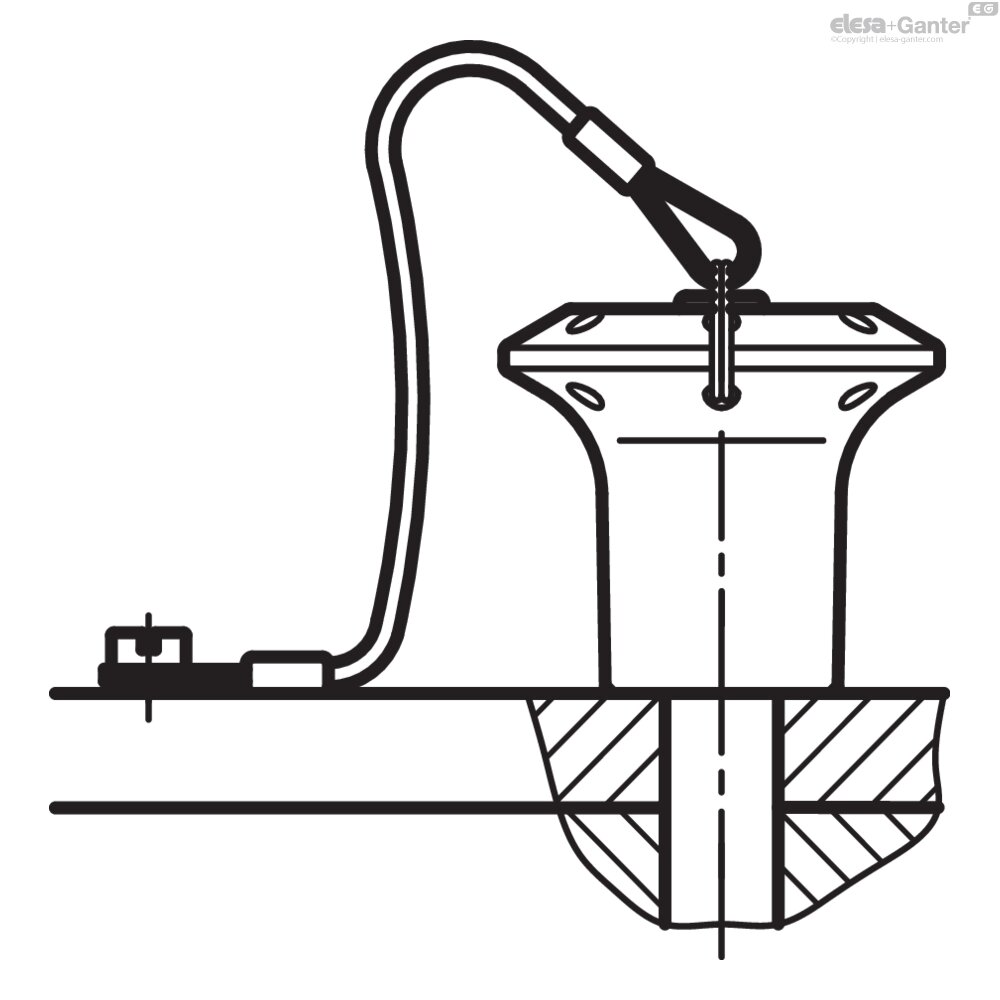

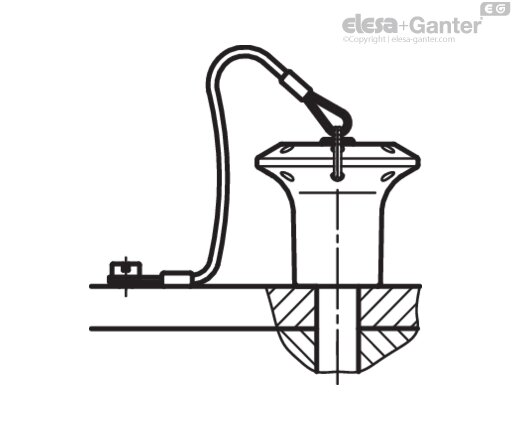

They are mainly used in combination with the different types of self-locking pins or in cases where you want to make small components or tools unmissable so that they are always available and at hand.

In particular, they can be used in place of the CT-S ball chain, when a particular tear resistance is required.
