RE.C7-080-RBL
RE.C7 Wheels for the general public
Eta: 1-2 weeks All sizes and variants of RE.C7
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

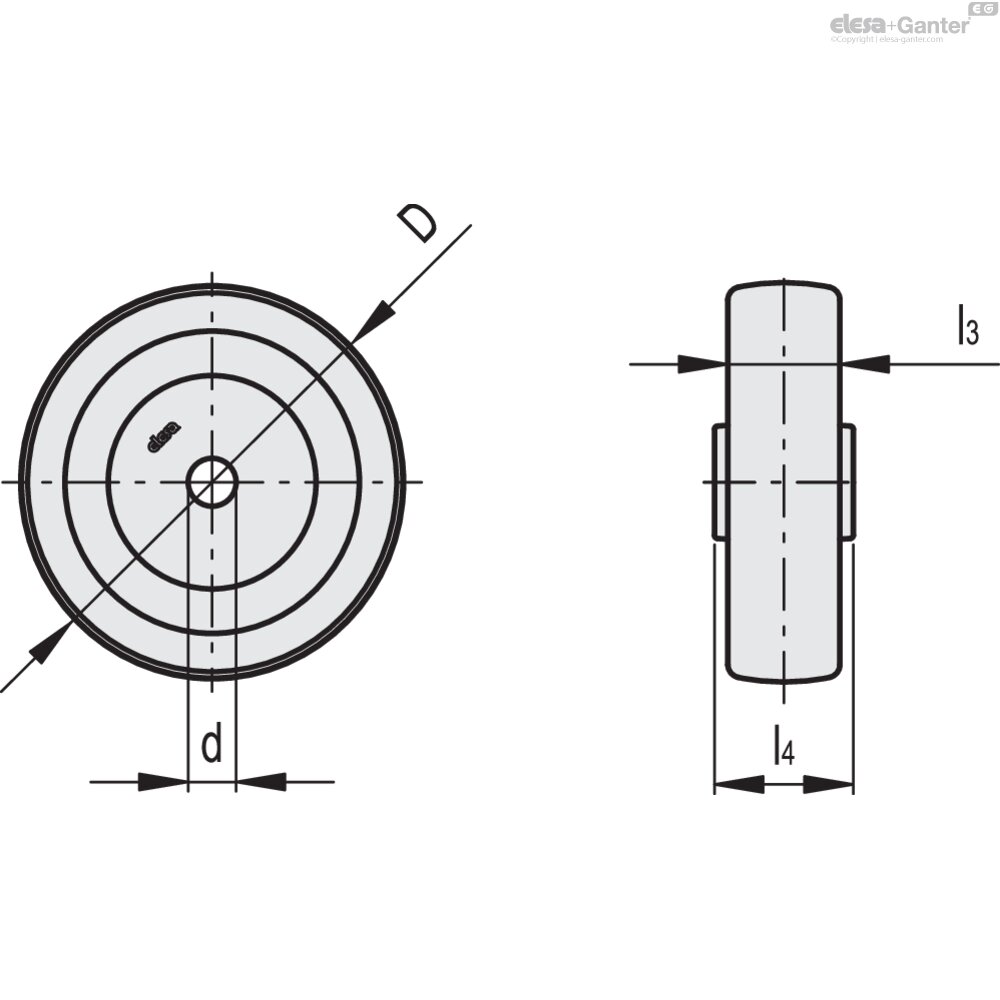

Technical datasheet
Technical data
- Catalogue
- 452091
- D
- 80
- d
- 8
- l3
- 24
- l4
- 28
- Dynamic carrying capacity#
[N] - 550
- 170
Covering
Grey anti-trace rubber.
Wheel centre body
Polypropylene-based (PP) technopolymer, with polyamide thread guards (D = 40 mm) or with metal thread guards (D = 50, 60, 80 mm).
Rolling action
Hub with pass-through hole.
Applications
Wheels for the general public, excellent rolling resistance and elasticity features.
For selection parameters see Technical data
RE.C7 wheels are also supplied with steel sheet bracket RE.C7-C.
Environmental conditions
Suitable for use in humid environments and in the presence of medium-aggressive chemical environments; use in environments with the presence of organic, chlorinated solvents, hydrocarbons and mineral oils is not recommended.
