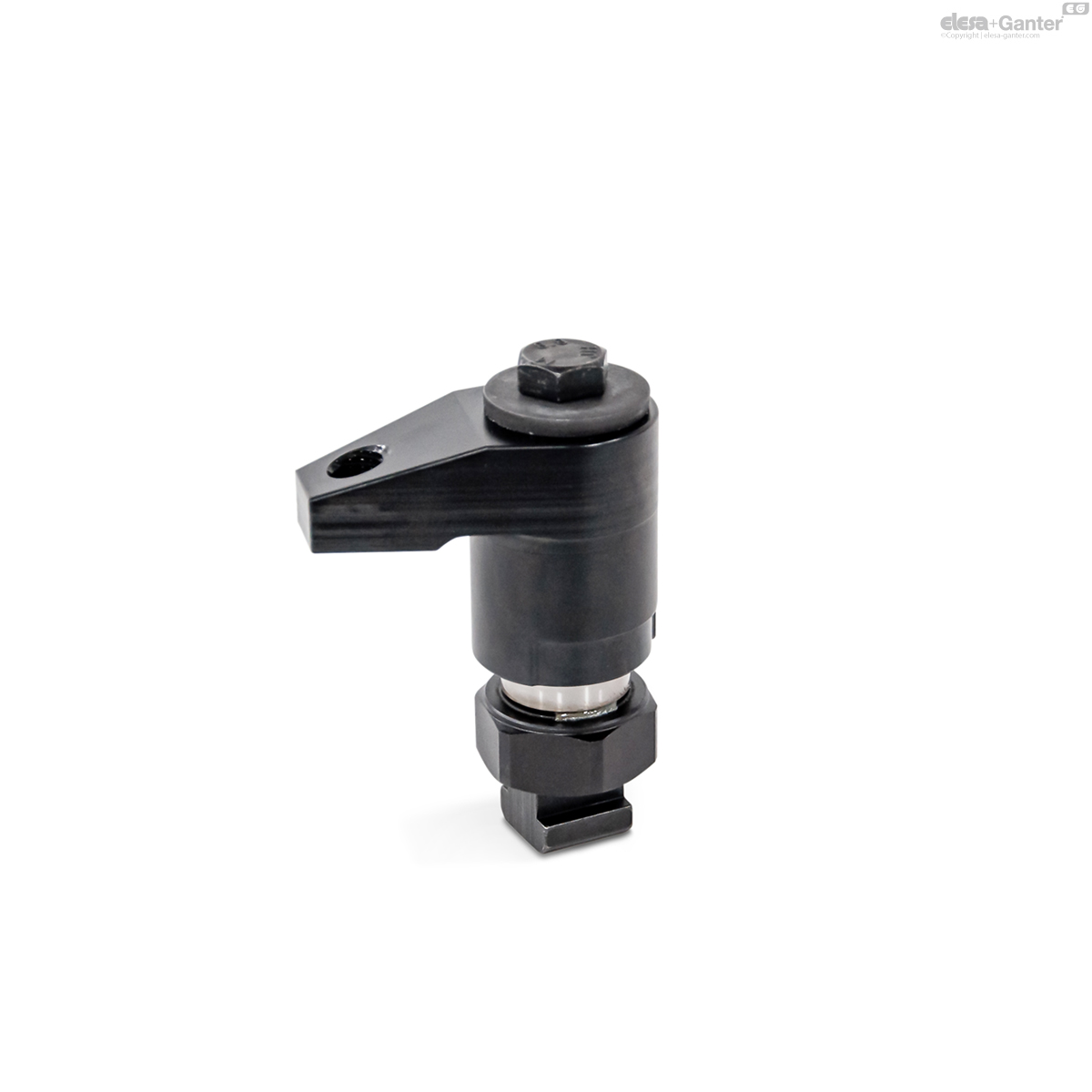

9192-40-20-S GN 9192-S With clamping screw

9192-40-20-S

GN 9192-S With clamping screw

  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 9192

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 9192-40-20-S
d1
40
w Stroke
20
FH in kN
10
b1
40
b2
17
d2
M 12
d3
M 12
h1 min.
50
h1 Max.
70
h2
15
h3
36
l1
75
l2
55
l3
43
l4
35
A/F
36
876

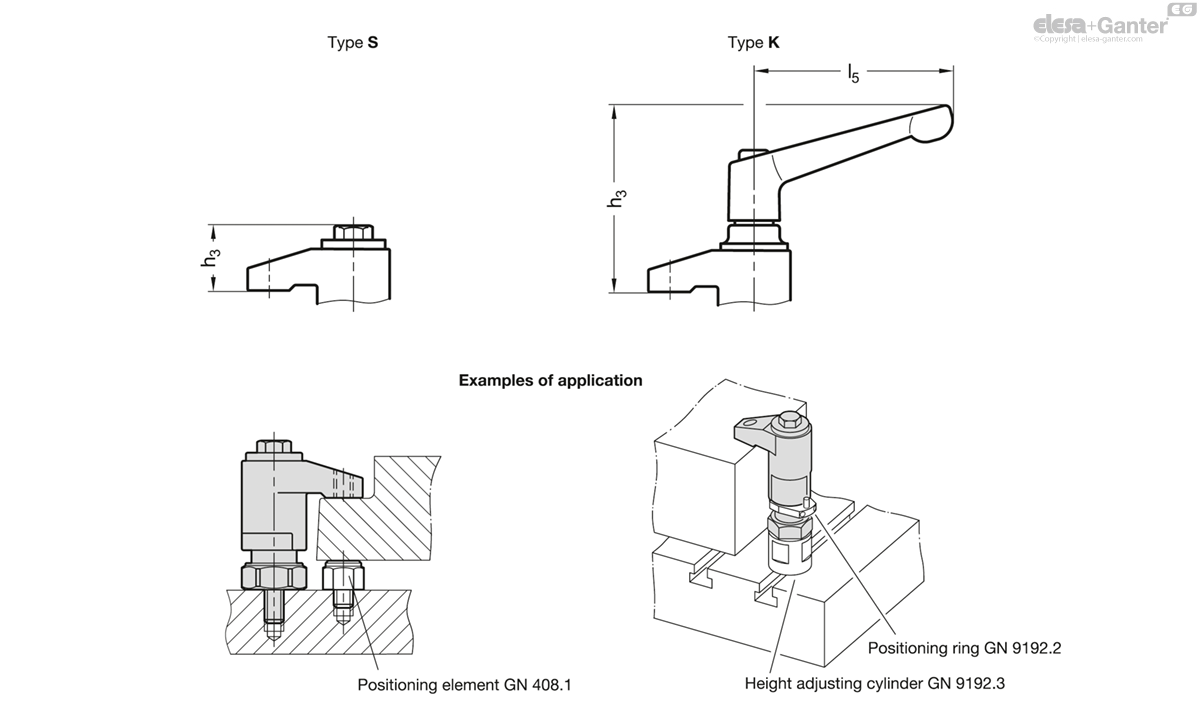

9192-40-20-S drawing

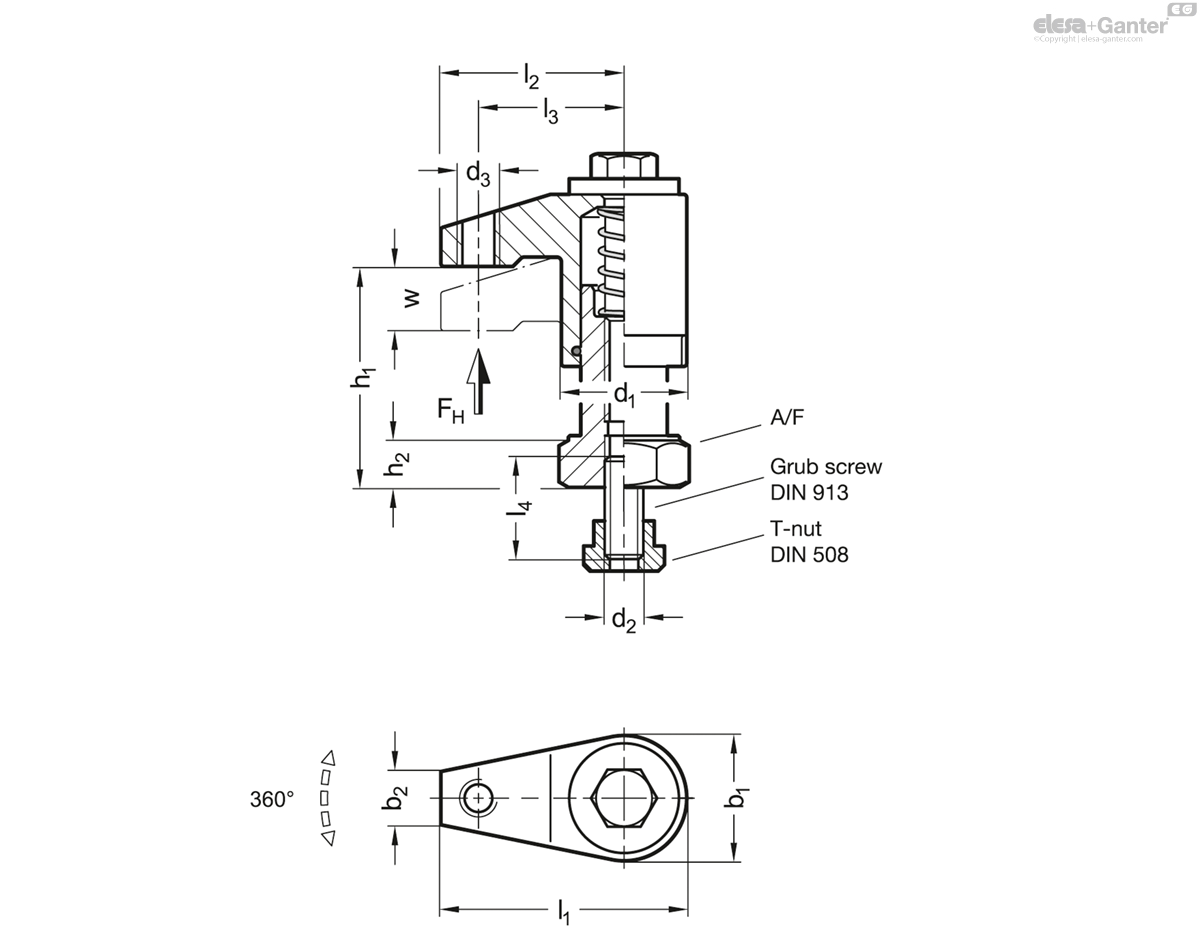

9192-40-20-S drawing

Types

  • Type S: With clamping screw
  • Type K: With adjustable hand lever with increased clamping force

Base

Steel

  • Case-hardened
  • Blackened

T-Nut

  • High quality steel, blackened
  • Property class 10

Grub screw DIN 913

Steel, blackened

Adjustable hand lever

with increased clamping force (Type K)

  • Zinc die casting

Powder coated

Black RAL 9005, textured finish

  • Threaded insert and bushing

Nitrided and blackened steel

Down-thrust clamps GN 9192 are compact clamping elements for quick and secure clamping in tool and fixture construction. Rotating and tightening the clamping screw or the adjustable hand lever moves the clamping arm downwards to clamp the workpiece.

The clamping arm can be swiveled 360° by hand so that workpieces can be inserted and removed from above quickly and easily. The thread on the clamping arm d3 can be used for positioning elements and clamping pads.

Positioning ring GN 9192.2, available as an accessory, limits the swiveling range of down-thrust clamps to 110° left or right via a positioning pin. The position of the ring can be adjusted to ensure that the clamping position is reached reliably when the clamp swivels over the positioning pin.

Down-thrust clamps can be screwed in directly, e.g. in a mounting plate, or fastened to machine tables with T-slots. Height adjusting cylinders GN 9192.3 can be used to increase the clamping height. The adjustable hand lever (type K) is supplied loose.
