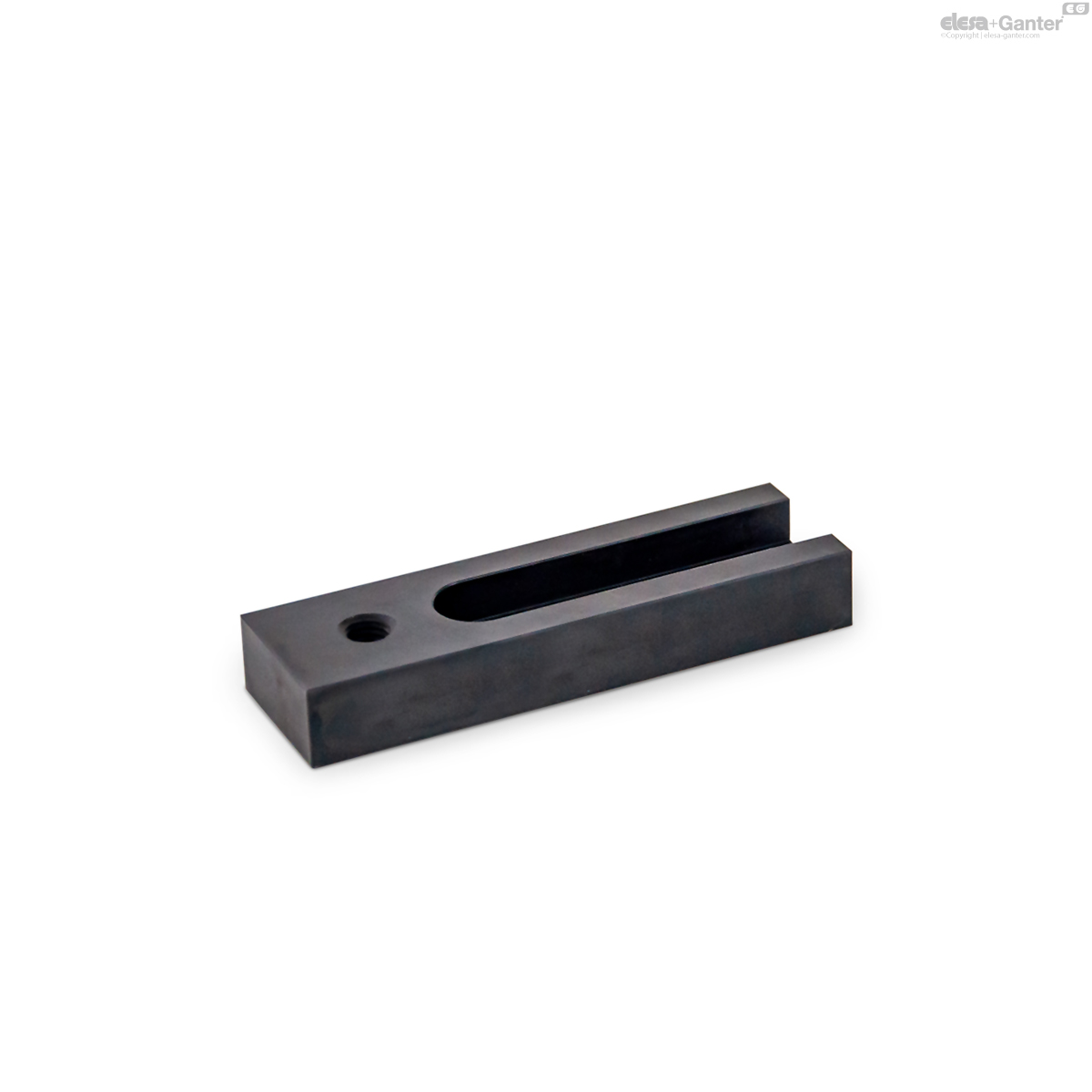

9190.3-30-100-M8 GN 9190.3 Slotted Support Blocks

9190.3-30-100-M8

GN 9190.3 Slotted Support Blocks

for Side Clamps GN 9190 / GN 9190.1 / GN 9190.2
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 9190.3

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 9190.3-30-100-M8
b1
30
l1
100
d
M 8
b2
15
b3
9
h1
15
h2
6.5
l2
63
l3
20
For
side clamp slot
width a
GN 9190
10
For
side clamp slot
width a
GN 9190.1
10
For
side clamp slot
width a
GN 9190.2
10
246

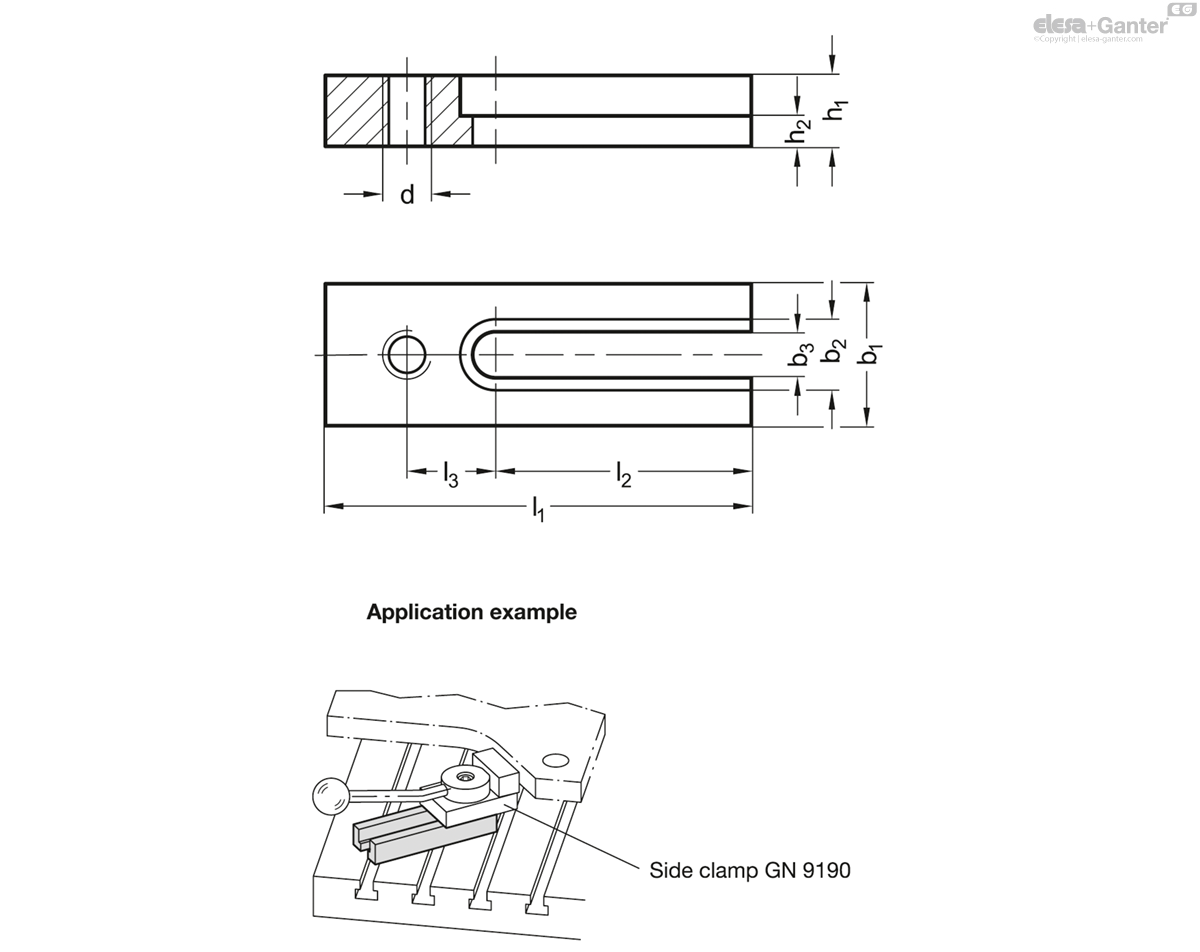

9190.3-30-100-M8 drawing

Steel

  • Tempered
  • Blackened

Slotted support blocks GN 9190.3 are provided as accessory for side clamps GN 9190 / GN 9190.1 / GN 9190.2.

They can also be used to fasten side clamps across the T-slot in any position.
