BSA-N51-14 BSA-N51 Bases for spindle locking

BSA-N51-14

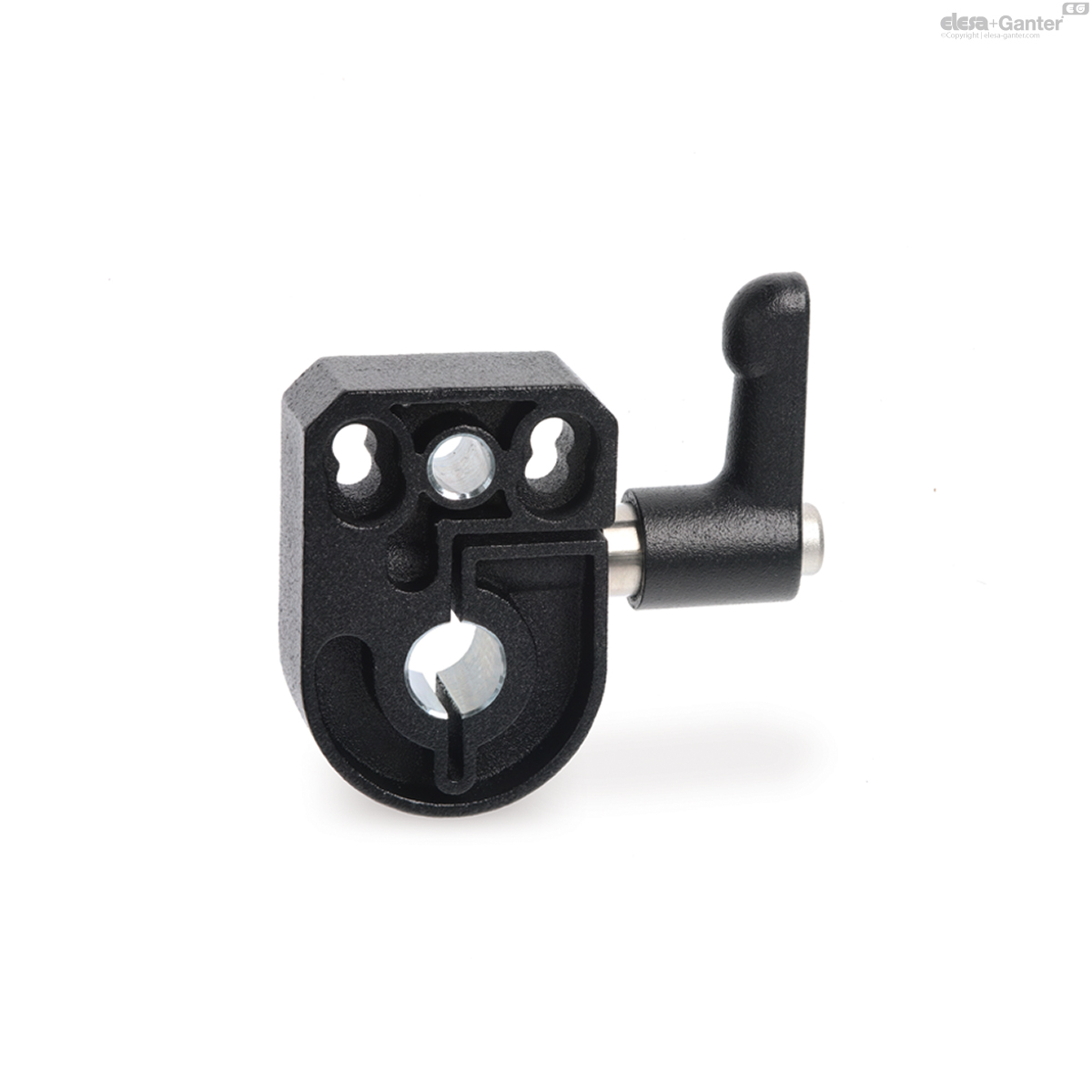

BSA-N51 Bases for spindle locking

for DD51 position indicators, zinc alloy
  • RoHS

In stock All sizes and variants of BSA-N51

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
CE.85921
dH7
14
dF9
14
97
BSA-N51-14 drawing

Material

Die-cast zinc alloy bases for spindle locking, epoxy resin coating, black colour, matte finish.

GN 302.1 adjustable handle with lever body in die-cast zinc alloy, black colour and AISI 303 stainless steel clamping element.

Features and applications

BSA-N51 locking bases allow an easy and quick locking of the spindles after their positioning. They are equipped with a Ø 6.1 mm hole to fit the referring pin of the indicator. They can be assembled with the handle either on the right or on the left and can be fitted to the machine by means of two M4 cylindrical-head screws (not included in the supply).
