TCC-CR-30-30-C33
TCC-CR Two-way connecting clamps
Eta: 1-2 weeks All sizes and variants of TCC-CR
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

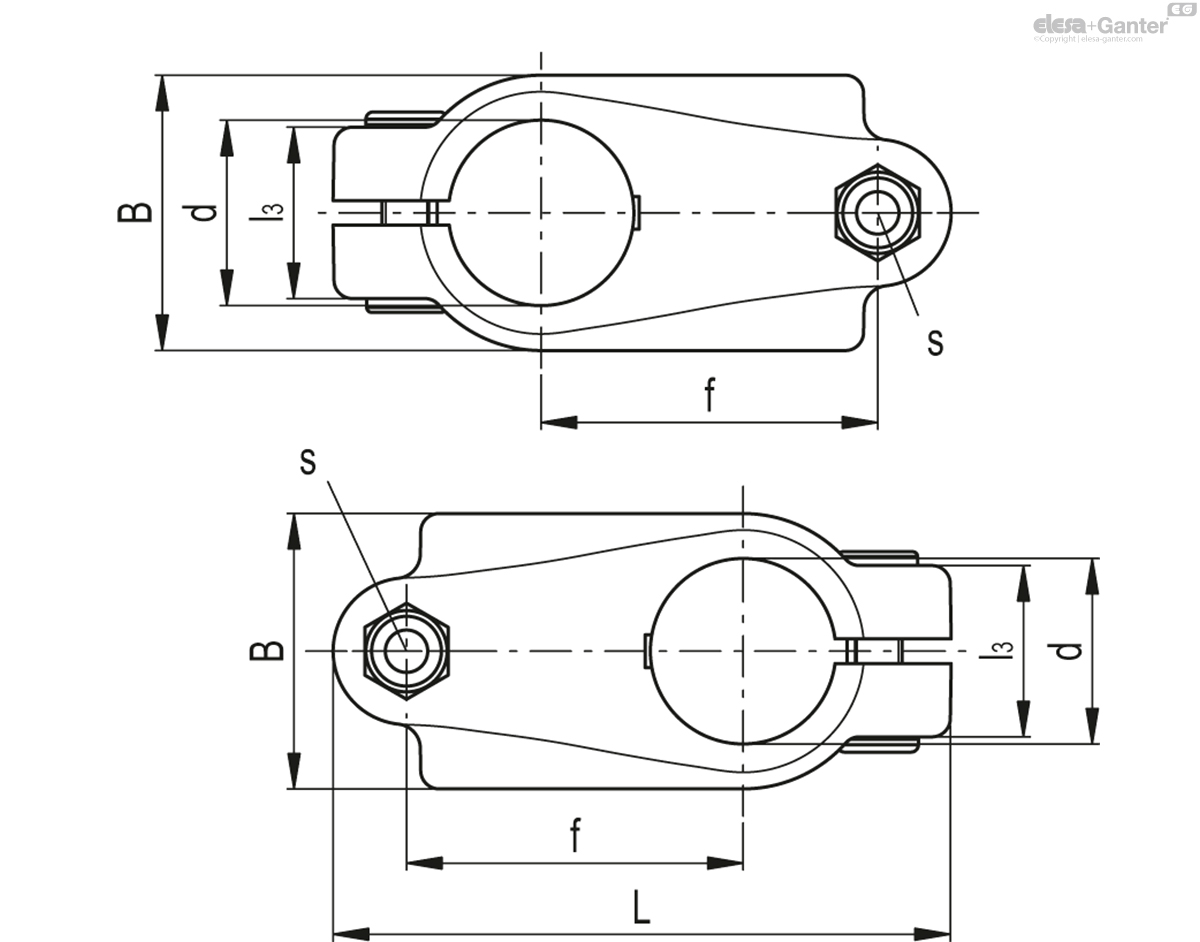

Technical data
- Catalogue
- 600221-C33
- d
- 30
- L
- 100.5
- B
- 45
- f
- 54.5
- l3
- 27
- s
- M8
- C#
[Nm] - 12
- F1*
[N] - 1350
- M1**
[Nm] - 21
- 122
Clamp
Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, resistant to UV rays, matte finish.
Screws and nuts (supplied)
Cylindrical-head screw with hexagon socket in AISI 304 stainless steel with anti-seizure treatment.
Self-locking nuts in AISI 304 stainless steel.
Features
Clamps for tubes with a diameter of 18 ± 0.2 and 30 ± 0.2 mm.
For smaller diameter tubes, the hole reduction sleeve TCC-A can be used (ordered separately).

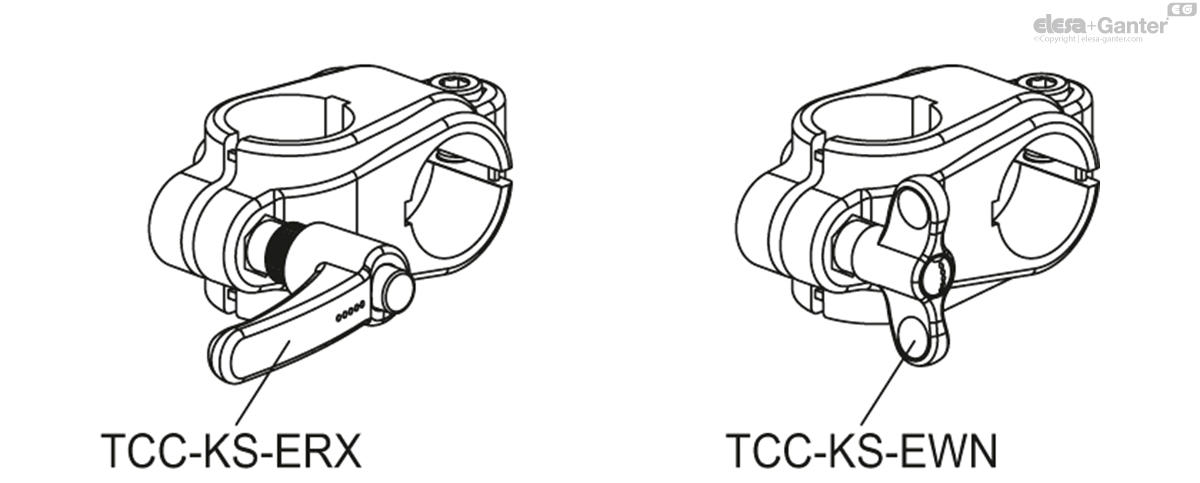

The 's' grub screws may be replaced by the kit TCC-KS.
Technical data

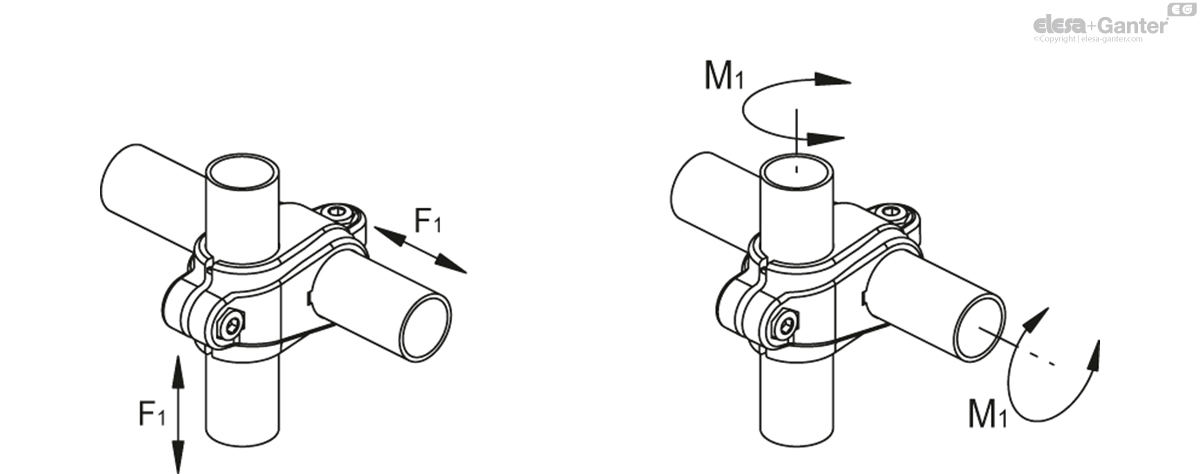

The resistance values shown in the table were measured during laboratory tests at ambient temperature with the screws tightened to the suggested torque 'C#'.
