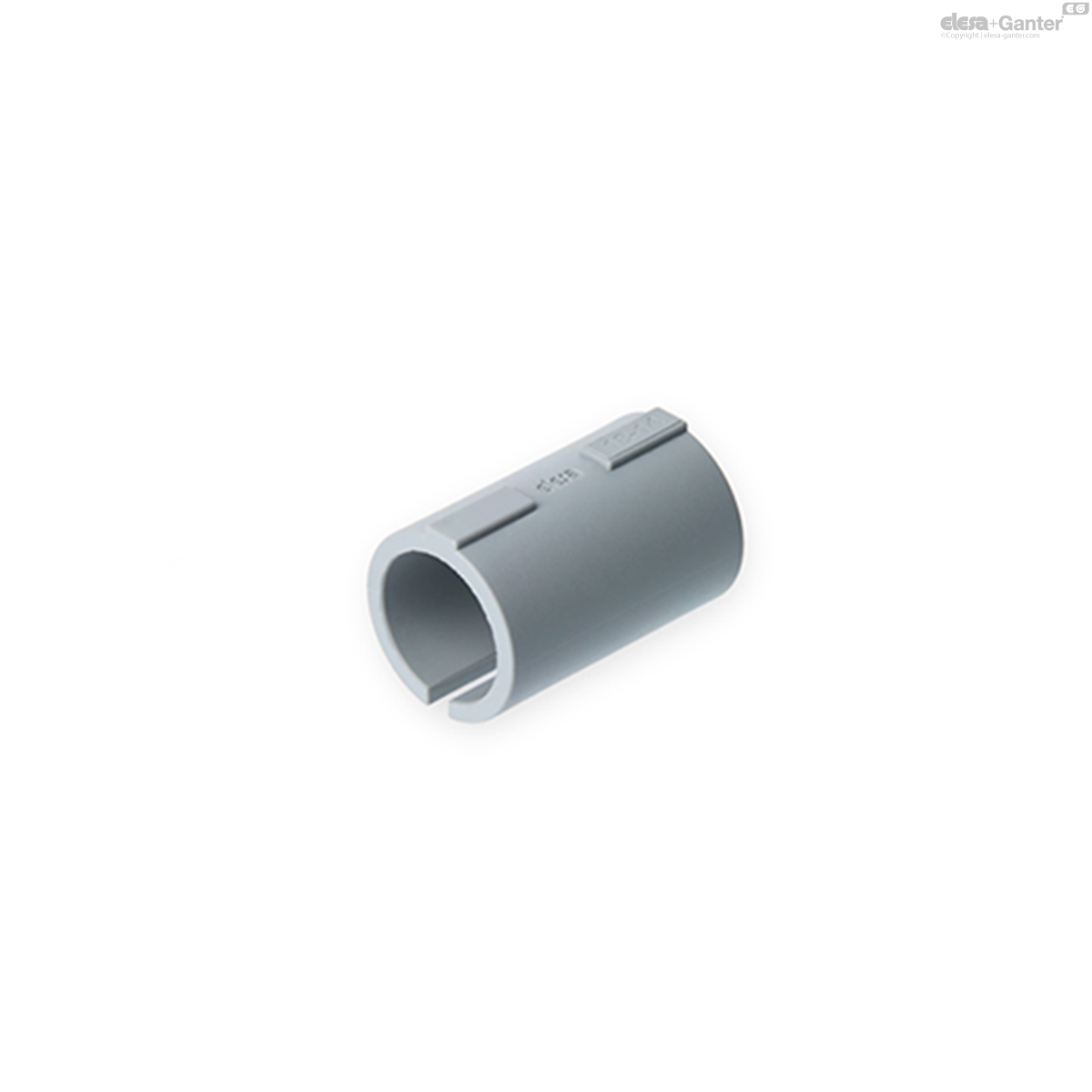

TCC-A-18-14-C33 TCC-A For round tubes

TCC-A-18-14-C33

TCC-A For round tubes

for TCC clamps, technopolymer
  • Icons/__logo__PA__.png
  • Icons/__logo__g10020__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__ELE_OD__.png
  • Icons/__logo_gda_winner_24__.png
  • Icons/__logo__gda_winner_24__.png

Eta: 1-2 weeks All sizes and variants of TCC-A

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
600102-C33
D
18
H
29
d1
14
8

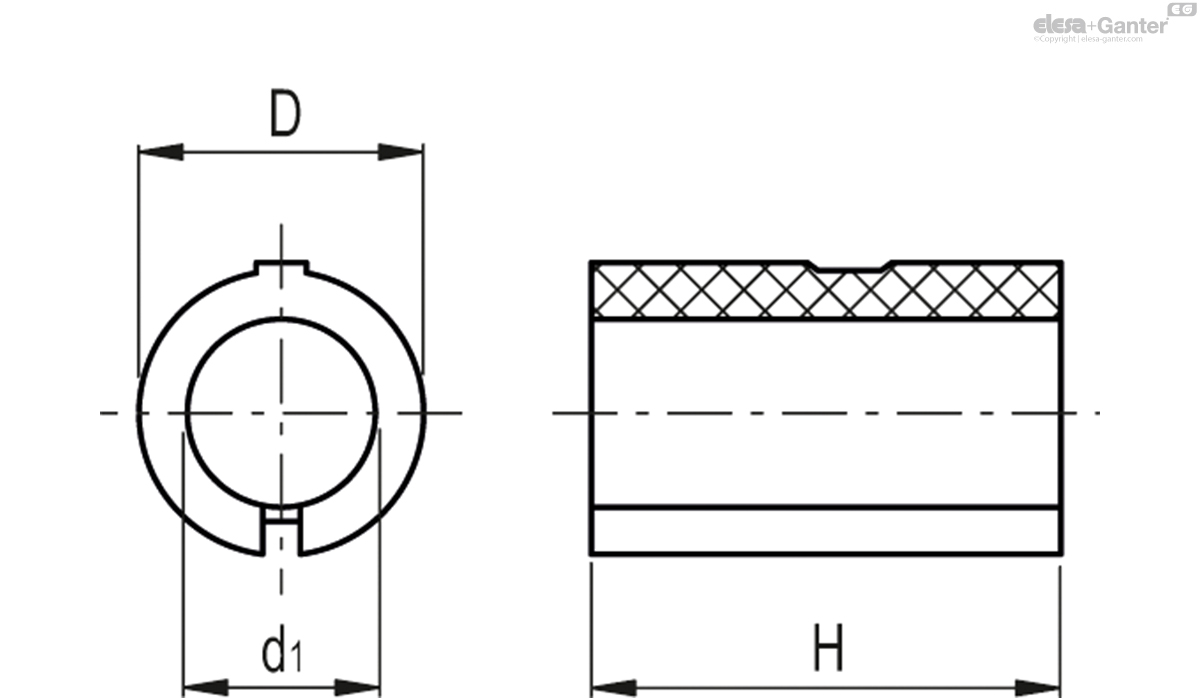

TCC-A-18-14-C33 drawing
TCC-A-18-14-C33 drawing
TCC-A-18-14-C33 drawing

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, matte finish.

Standard executions

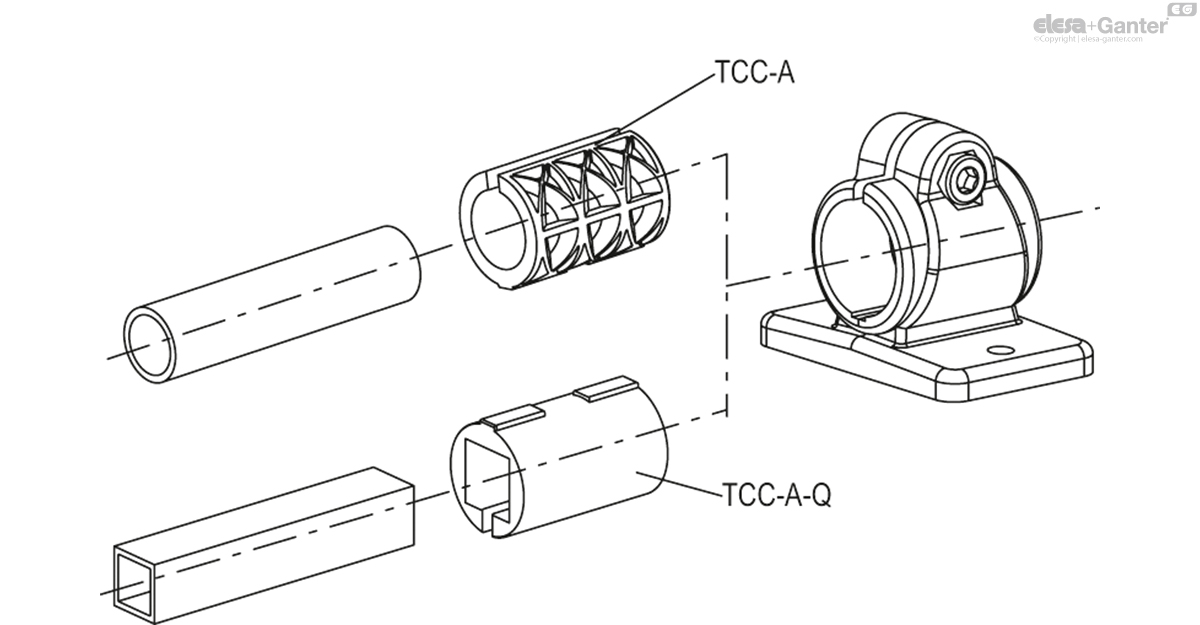

TCC-A: for round tubes with diameter of 'd1' ±0,2mm.

TCC-A-Q: for square section tubes 's' ±0,2mm.



Technical data

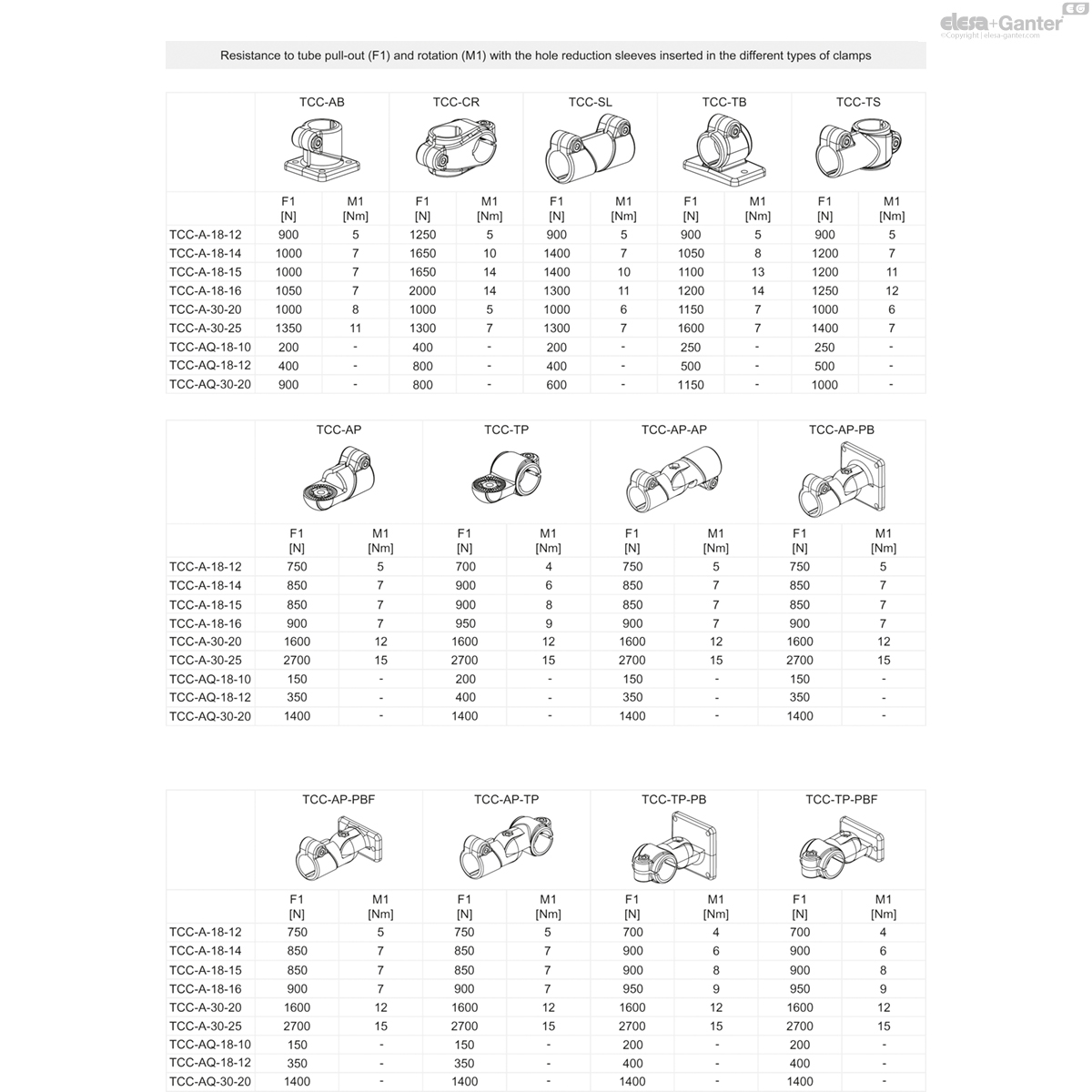

The resistance values shown in the table were measured during laboratory tests at ambient temperature with the screws tightened to the maximum torque of 5 Nm for TCC-A-18 and 12 Nm for TCC-A-30.
