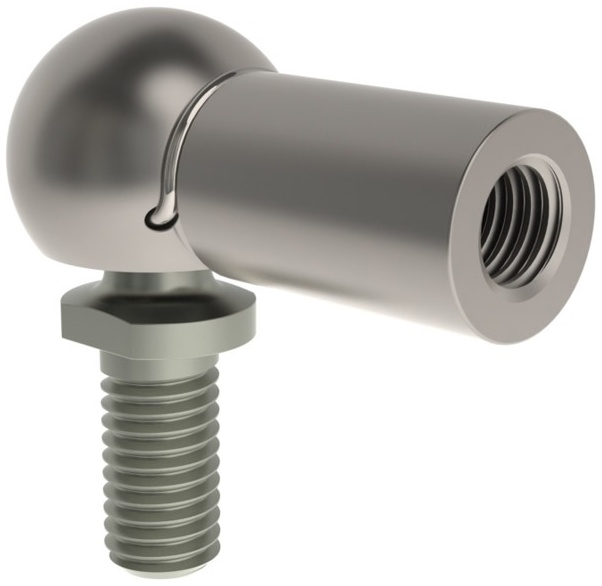

ST092220-6-5 (ST - M6 -M5x13 -E=22mm) 71802 Mounted Mounted angle joint

ST092220-6-5 (ST - M6 -M5x13 -E=22mm) 71802 Mounted Mounted angle joint

All sizes and variants

Eta: 1-2 weeks

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue: A108476
d1: 8
d2: M6
d3: 8.5
d4: M5
l2: 13
l3: 9
e: 22
a: 22
Material: Zinc plated steel

ST092220-6-5 (ST - M6 -M5x13 -E=22mm) drawing
