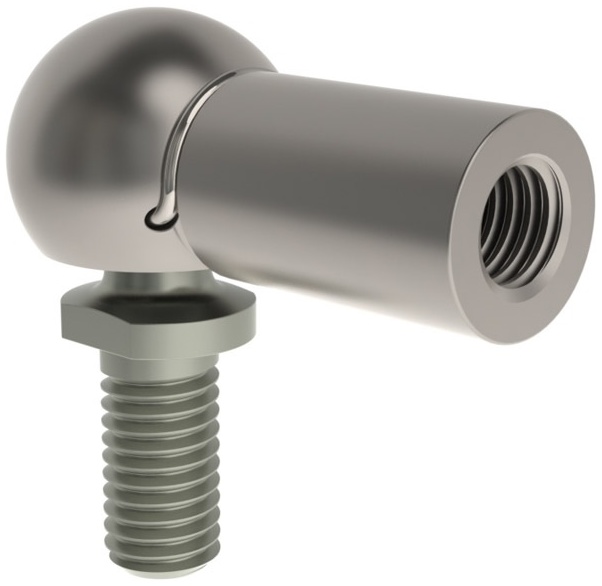

ST092220-10E (ST - M6-M8x13 - E=25mm) 71802 Mounted Mounted angle joint

ST092220-10E (ST - M6-M8x13 - E=25mm) 71802 Mounted Mounted angle joint

All sizes and variants

Eta: 1-2 weeks

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue: A108473
d1: 10
d2: M6
d3: 10
d4: M8
l2: 13
l3: 14.5
e: 25
a: 12
Material: Zinc plated steel

ST092220-10E (ST - M6-M8x13 - E=25mm) drawing
