330-M8X1-4-G-2

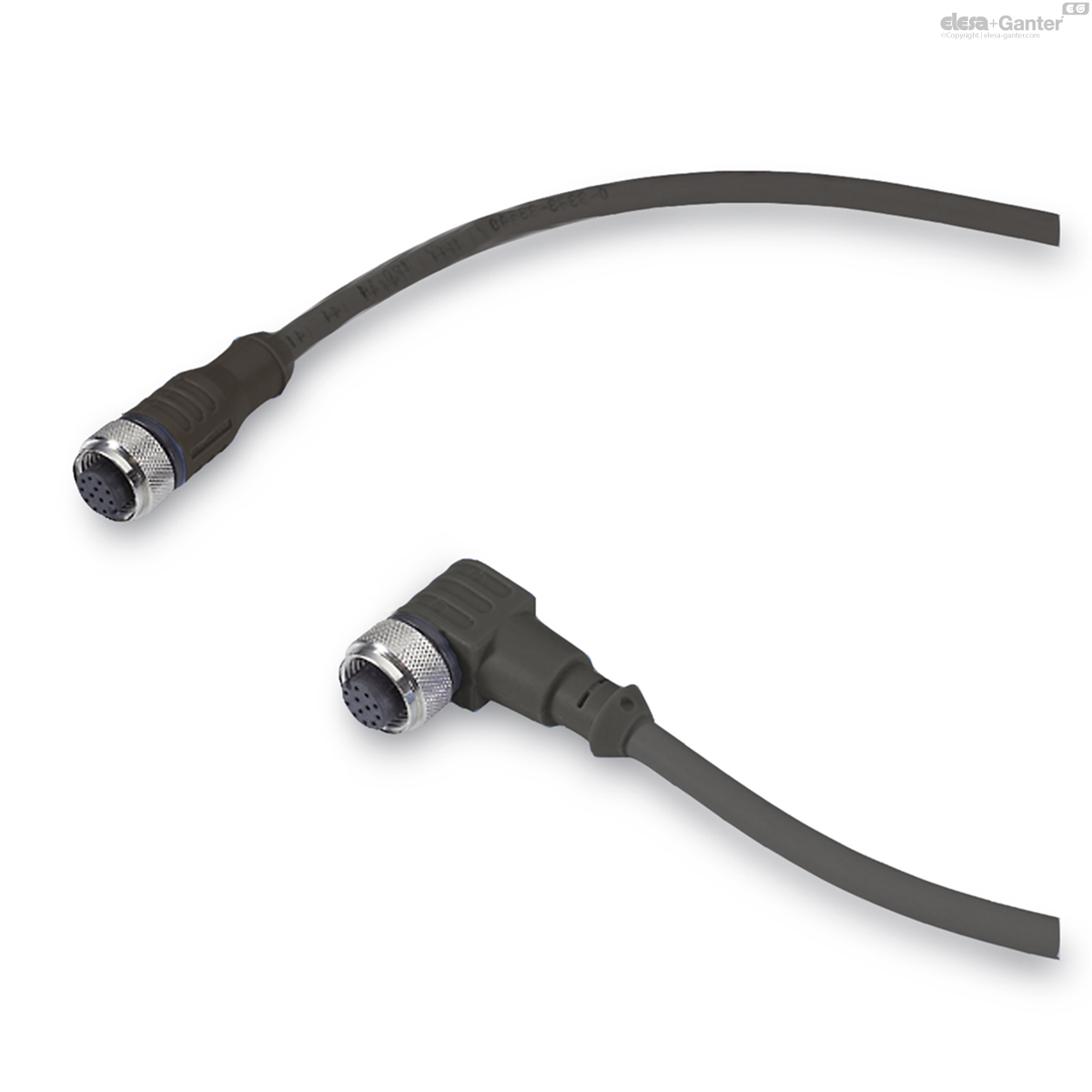

GN 330 Cables with Connector Coupling
Eta: 1-2 weeks All sizes and variants of GN 330
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 330-M8x1-4-G-2
- Connector
- M 8 x 1
- Number of contacts
- 4
- l1 in m cable length
- 2
- d2
- 9.6
- l2
- 35
- 18
Types

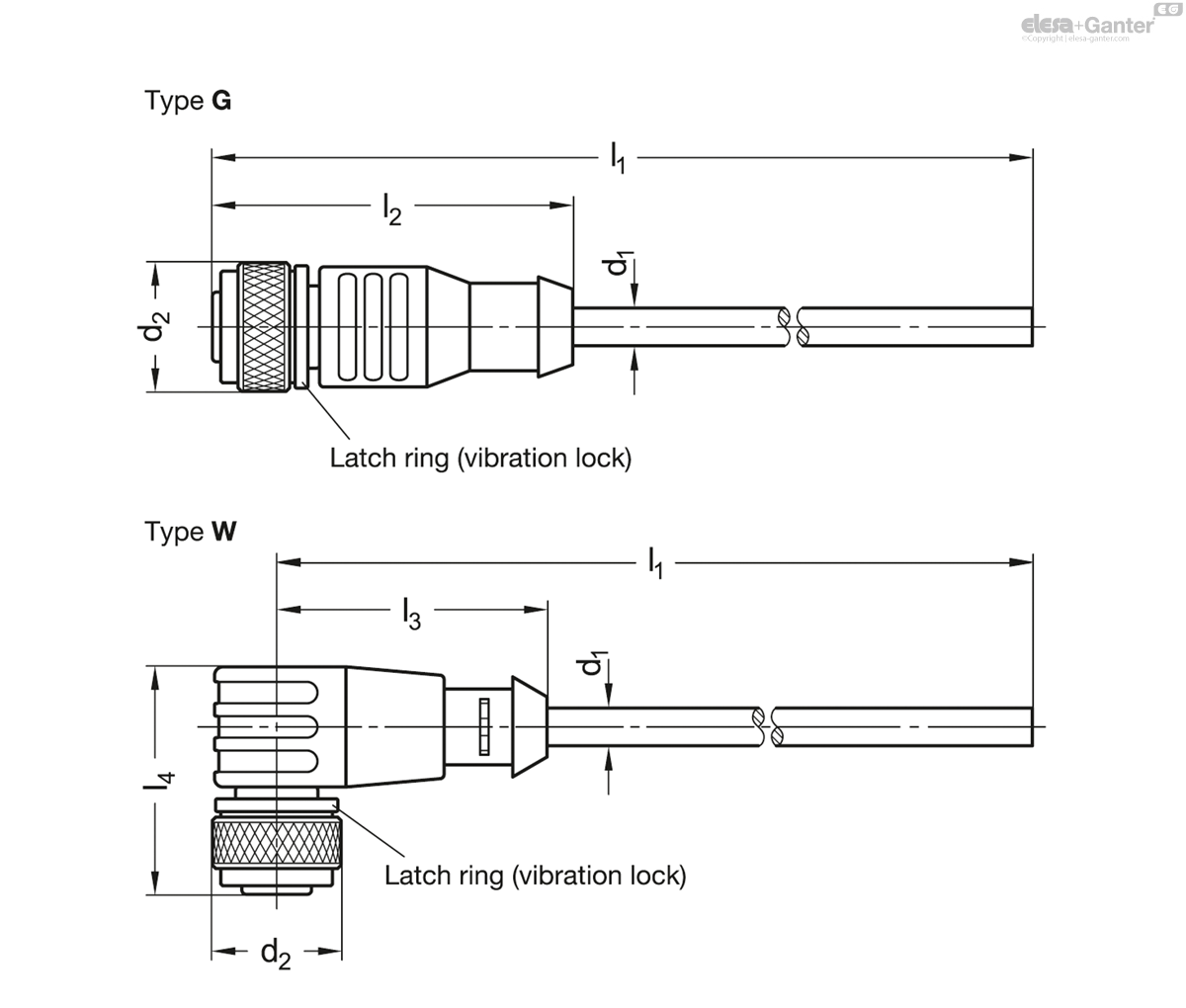

- Type G: Connector coupling straight
- Type W: Connector coupling 90° angled
Handle (Housing)
Plastic
Polyurethan-Elastomer TPU
Cable (Outer sheath)
Polyurethan PUR
black
Temperature resistance: -40 °C ... +90 °C
Insulating resistance: > 109 Ω
Degree of pollution: 3 / 2
according to EN 60664-1
Protection class: IP67
(in screwed condition)
according to EN 60529
Connecting nut M8x1 / M12x1
Brass, nickel plated
Cables with connector coupling GN 330 are used in conjunction with standard elements which have an electric switching function.
- other cable lengths l1
| Cable with plug-in connector | d Outside diameter | Cross-section | Operating voltage acc. to IEC 60 664-1 | Current load rating acc. to IEC 60512-3 | Contact assignment |
| 3-pole (3-wire) with M8x1 | 4 | 3 x 0.25 mm2 | max. 60 V | 4 A |  |
| 4-pole (4-wire) with M8x1 | 4.3 | 4 x 0.25 mm2 | max. 60 V | 4 A |  |
| 4-pole (4-wire) with M12x1 | 5 | 4 x 0.34 mm2 | max. 250 V | 4 A |  |
| 5-pole (5-wire) with M12x1 | 5 | 5 x 0.34 mm2 | max. 60 V | 4 A |  |
| 8-pole (8-wire) with M12x1 | 6 | 8 x 0.25 mm2 | max. 30 V | 2 A |  |
| 12-pole (12-wire) with M12x1 | 6 | 12 x 0.14 mm2 | max. 30 V | 1.5 A |  |
This adaptable cable, suitable for drag chains, features and outer jacket made of PUR and a core insulation made of polypropylene. It is free of PVC, silicon and halogens. UL and CSA approvals are available.
The cable is also resistant to oil, chemical, hydrolysis, microbes and welding sparks and flame retardant under IEC 60332-2-2 which makes the cable the perfect choice in many applications.
