827.1-M10X1-NG GN 827.1 Stainless Steel-Knurled nuts
for Stainless Steel-Adjusting screws GN 827
Expected delivery time 5-7 working days
Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

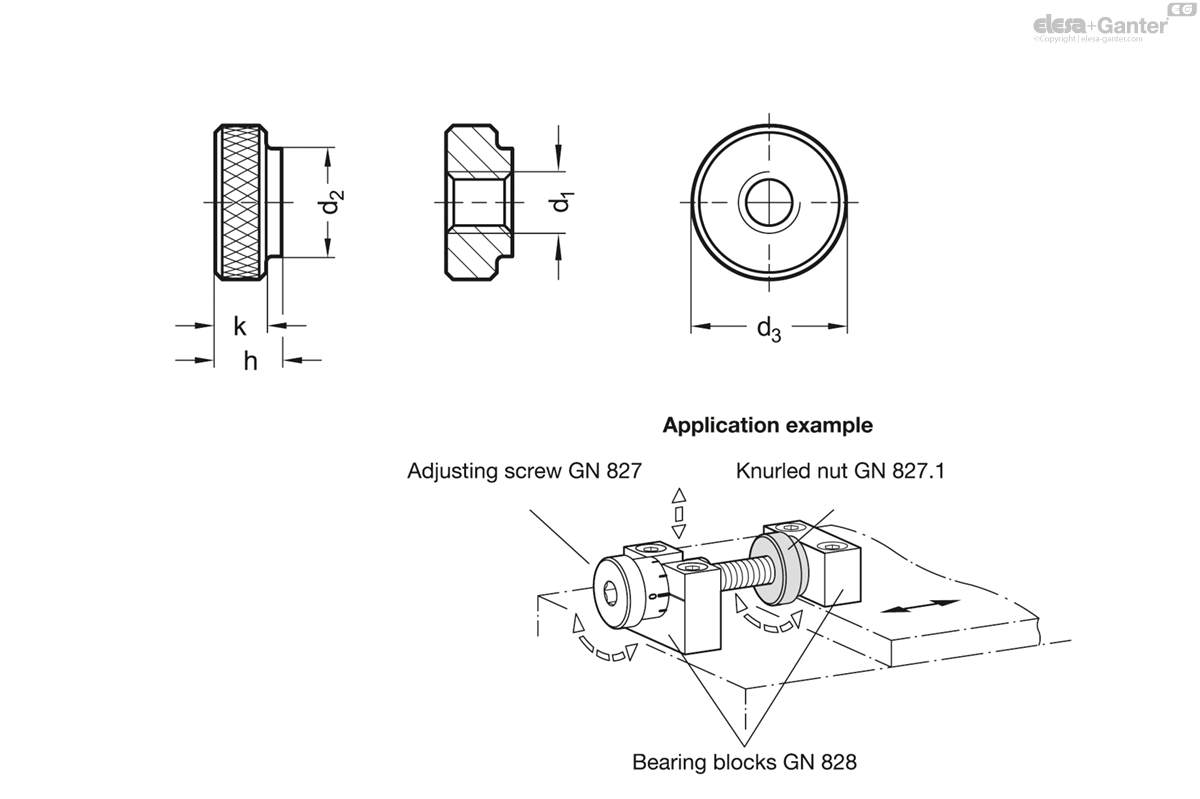

Technical data
- Catalogue
- GN 827.1-M10x1-NG
- d1
- M10x1
- d2
- 16
- d3
- 24
- h
- 9
- k
- 7
- 23
Stainless Steel AISI 304 NG
matte shot-blasted
Stainless Steel-Knurled nuts GN 827.1 are used with Stainless Steel-Adjusting screws GN 827 to secure settings and positions in place by counterlocking.
For processing and assembly equipment on which attachments and mechanisms must be regularly exchanged, particularly simple adjustments can be achieved by combining adjusting screws GN 827 knurled nuts GN 827.1 and bearing blocks GN 828 of the types UA and UB to ensure that settings are retained even between uses.
