70.2-NBR-20-SW GN 70.2 Rubber Caps

70.2-NBR-20-SW

GN 70.2 Rubber Caps

for Retaining Magnets
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 70.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 70.2-NBR-20-SW
d1
20
d2
21
h
5
s
0.5
1

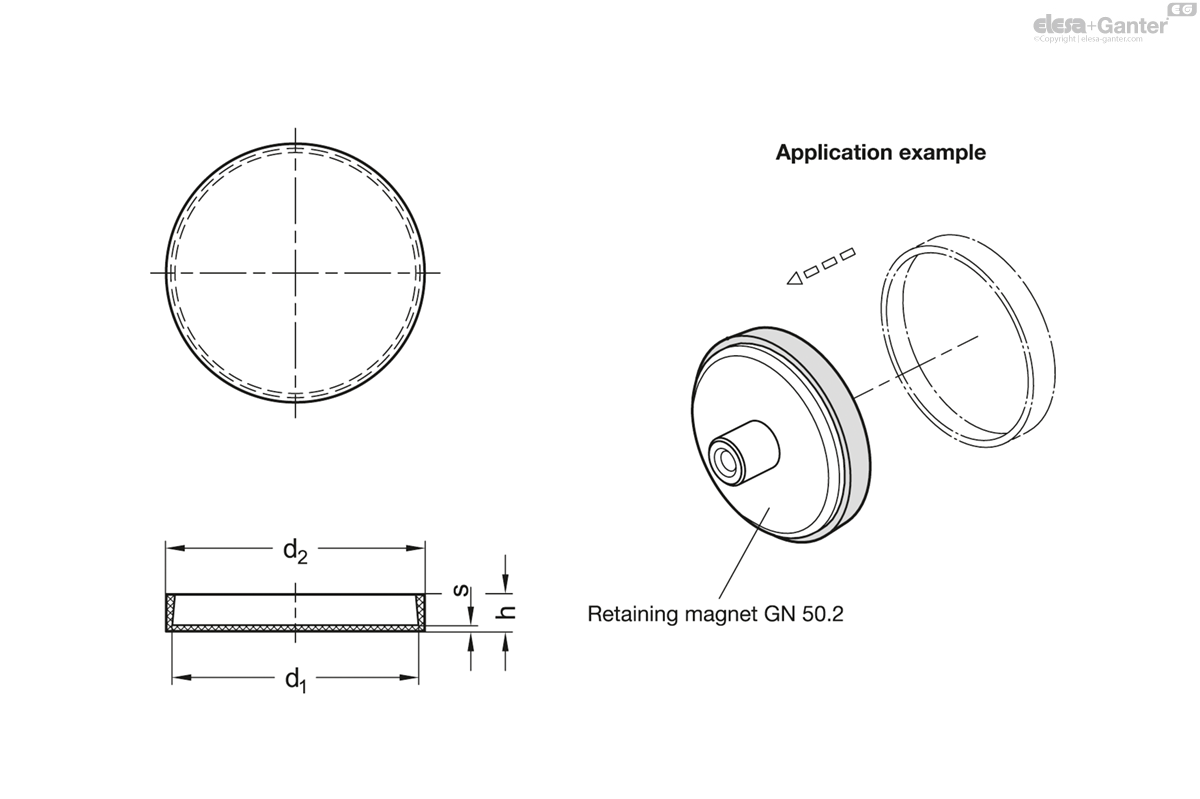

70.2-NBR-20-SW drawing

Rubber

Acrylonitrile butadiene rubber NBR

  • Black SW
  • 75±10 Shore A
  • Temperature resistant -30 °C up to 100 °C

Rubber caps GN 70.2 can be used with all non-rubberized retaining magnets. The inner diameter values d1 are matched to the respective outer diameters of the magnets. The specified nominal magnetic forces of the magnets are reduced due to the 0.5 mm wall thickness of the caps.

Rubber caps protect surfaces from being damaged by the magnet. They also prevent hard, loud contacts, and the increased friction reduces sideways slippage.

The rubber caps are easily affixed to the magnet by hand and can be removed again, if necessary.
