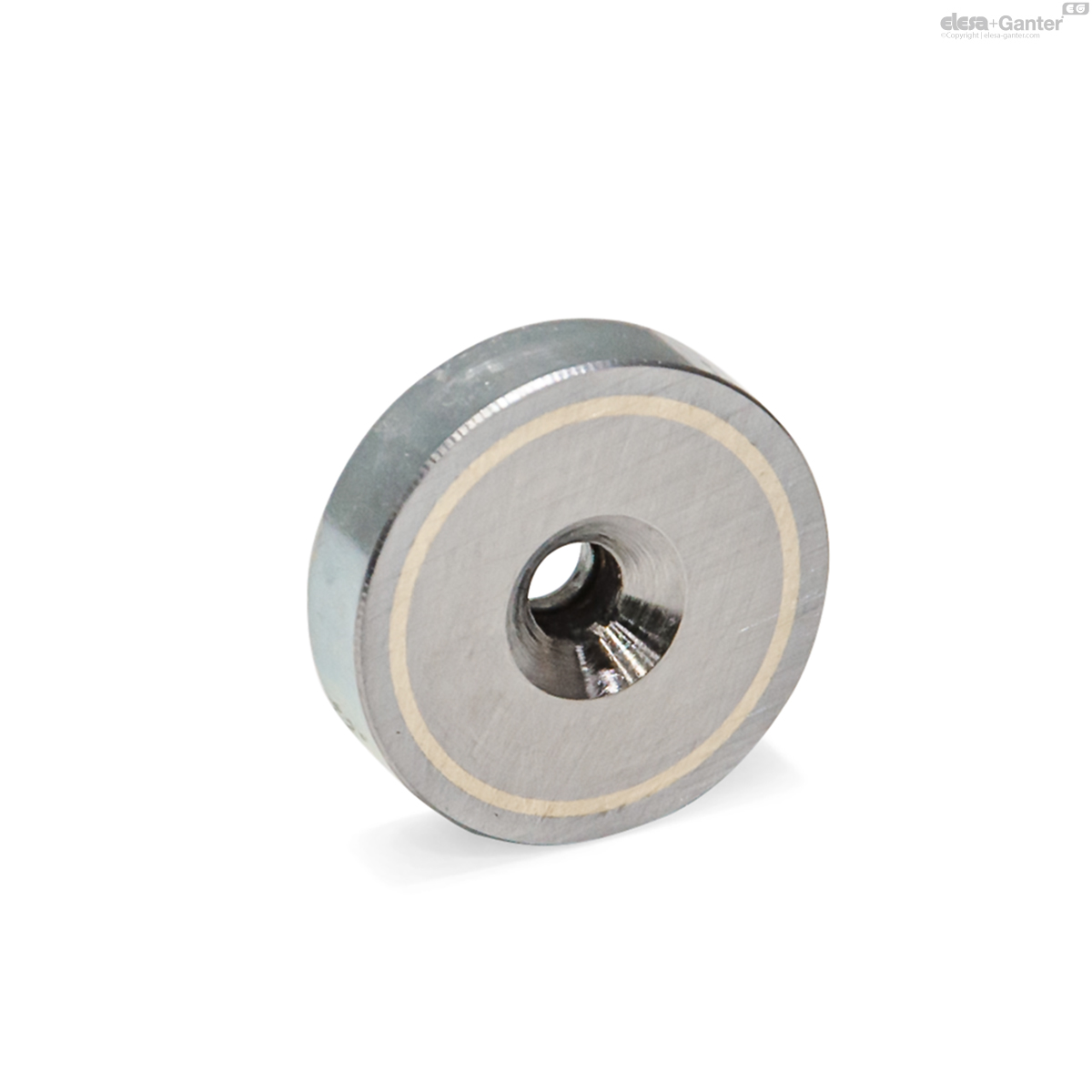

58-AN-38-ZB GN 58-ZB Zinc plated

58-AN-38-ZB

GN 58-ZB Zinc plated

with Countersunk Bore
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 58

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 58-AN-38-ZB
d1 Nominal dimension
38
d1
Actual dimension
38.1 ±1
d2
4.8
d3
10.5
h
10.5 ±0.3
Nominal adhesive forces in N
80
83

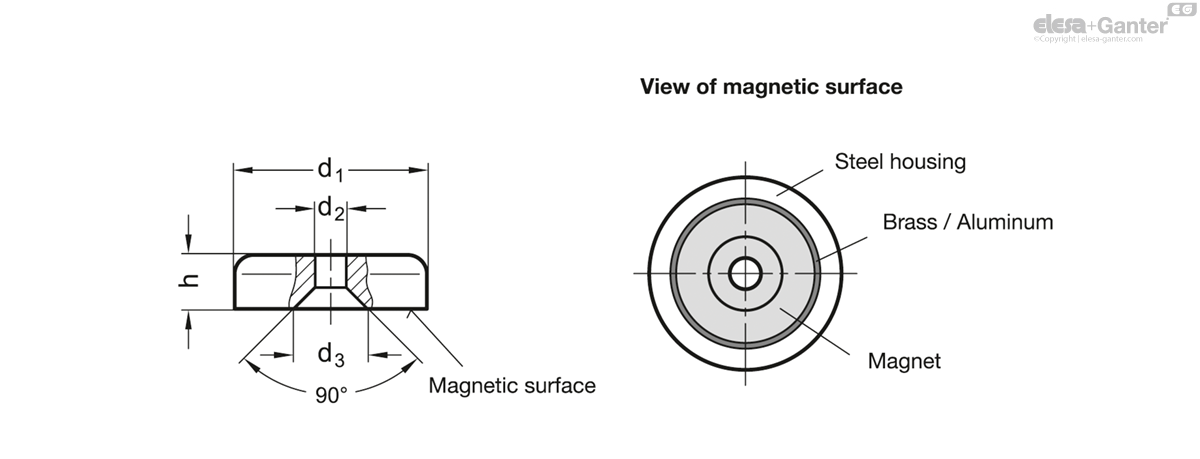

58-AN-38-ZB drawing

Housing

Steel

Material of the magnet

AlNiCo AN

Aluminum, Nickel, Cobalt

Finish

zinc plated ZB

temperature resistant up to 200 °C

red, lacquered RT

temperature resistant up to 180 °C

Pot magnets GN 58 are combined with a steel housing and insulation of brass / aluminum into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

To ensure that the magnetic properties are not impaired negatively, the fixing screws should be made of non-magnetic material , like for example Stainless Steel, brass or plastic.

For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.
