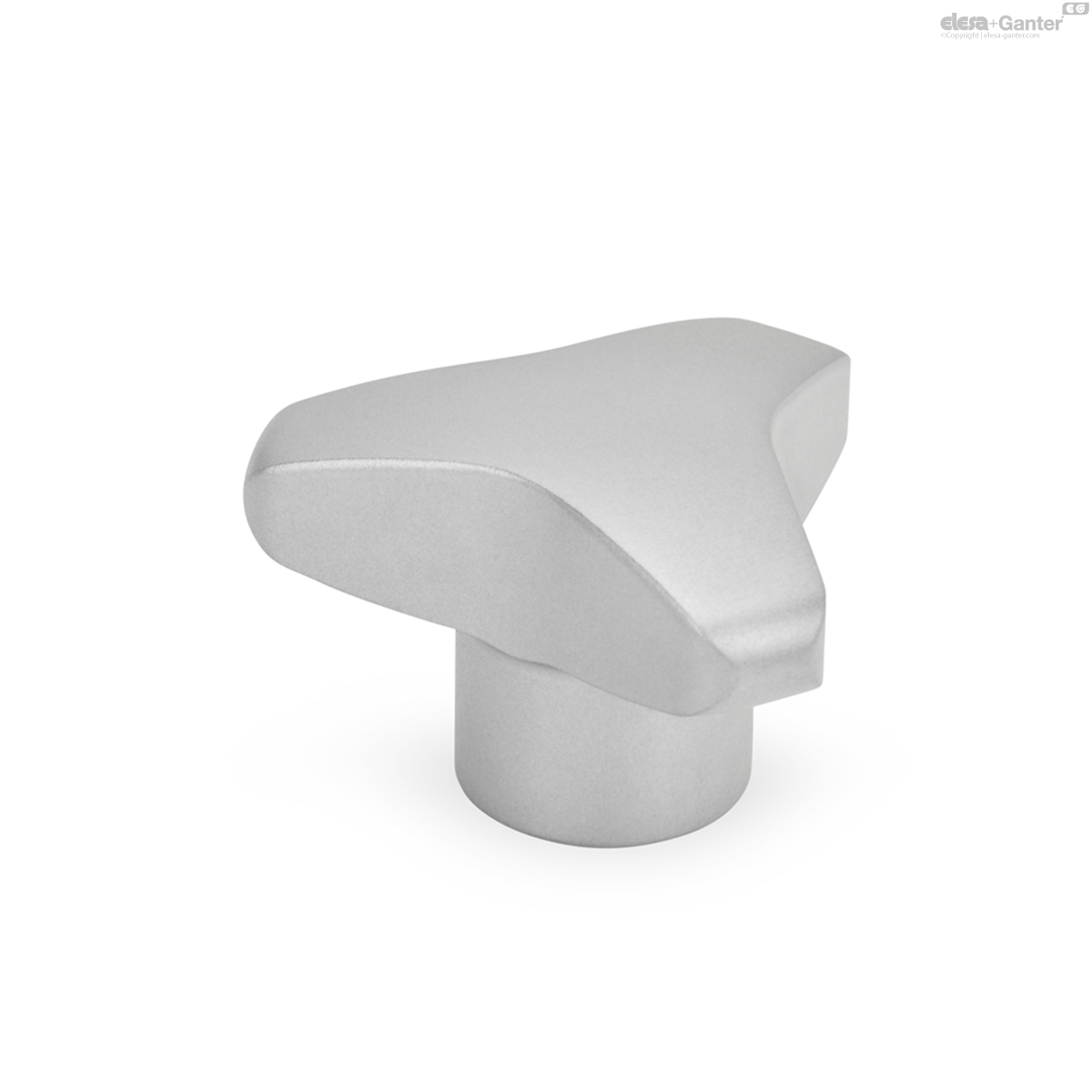

5345-32-M6-E GN 5345 Three-Lobed Knobs

5345-32-M6-E

GN 5345 Three-Lobed Knobs

Material AISI 303 (A1)
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 5345

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 5345-32-M6-E
d1
32
d2
M 6
d4
15
h1
21
h2
11
t1 min.
12
41
5345-32-M6-E drawing

Types

  • Type A: without bore
  • Type E: with threaded blind bore
  • Type D: with threaded through bore
  • Type C: with plain blind bore H7

Stainless Steel AISI 303 (A1)

matte shot-blasted

Stainless Steel-Three lobe knobs GN 5345 have a smooth and sealed surface. They are particularly suitable for use where hygiene requirements are high. Their shape allows relatively high torques to be applied.

  • highly polished (PL) (only type D and E)
