50.2-HF-63-14-M4

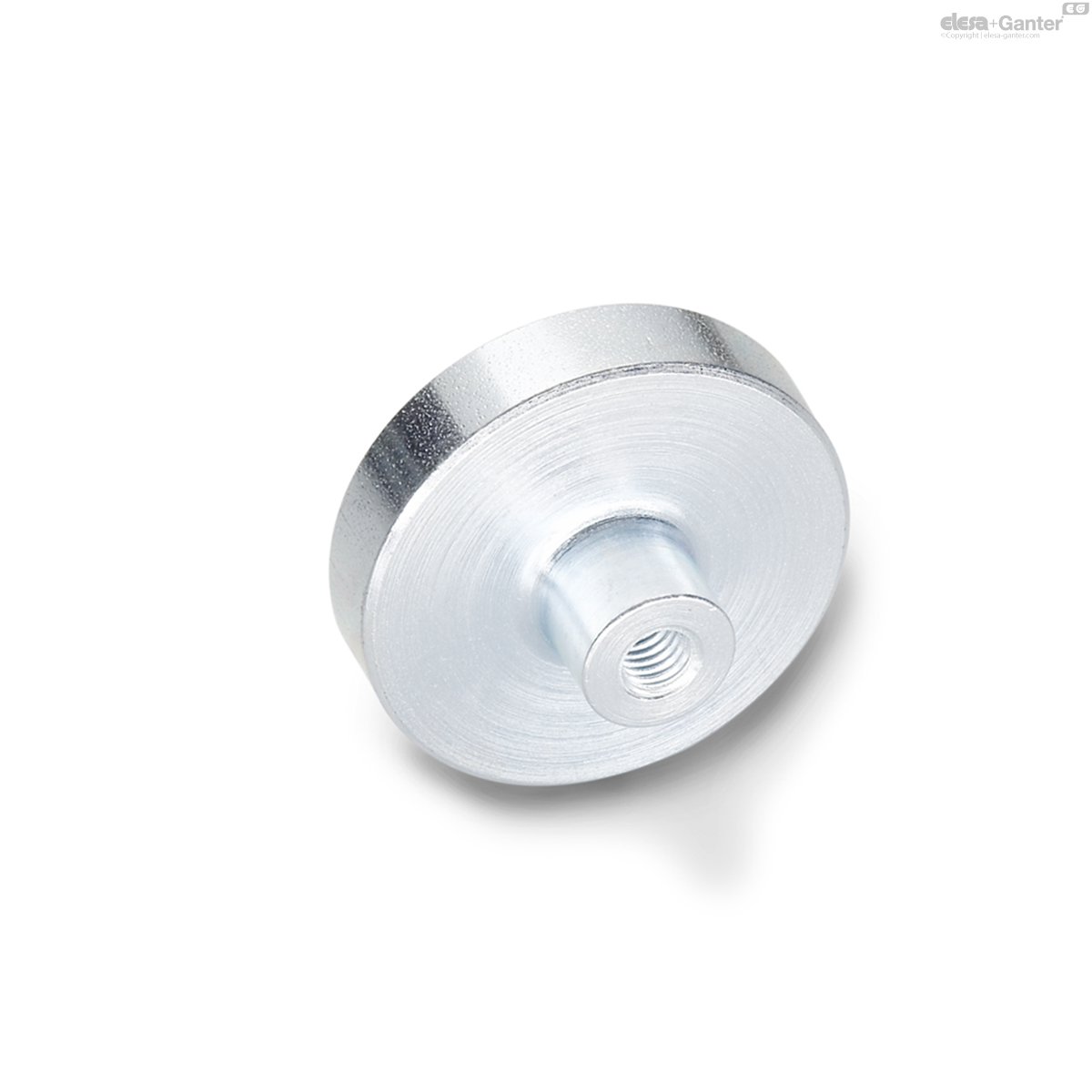

GN 50.2 Retaining magnets
disc-shaped, with female thread
Eta: 1-2 weeks All sizes and variants of GN 50.2
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 50.2-HF-63-14-M4
- d1
- 63 +0.3/-0.1
- h
- 14 +0.5/-0.2
- d2
- M 4
- d3
- 8 ±0.2
- l
- 8
- t
- 7
- Nominal adhesive forces in N
- 350
- 228
Housing
Steel, zinc plated
Materials of the magnet:
Hard ferrite HF
temperature resistant up to 200 °C
SmCo SC
Samarium, cobalt
temperature resistant up to 200 °C
NdFeB ND
Neodymium, iron, boron
temperature resistant up to 80 °C
Retaining magnets GN 50.2 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
