50.2-HF-47-9-M6 GN 50.2 Retaining magnets

50.2-HF-47-9-M6

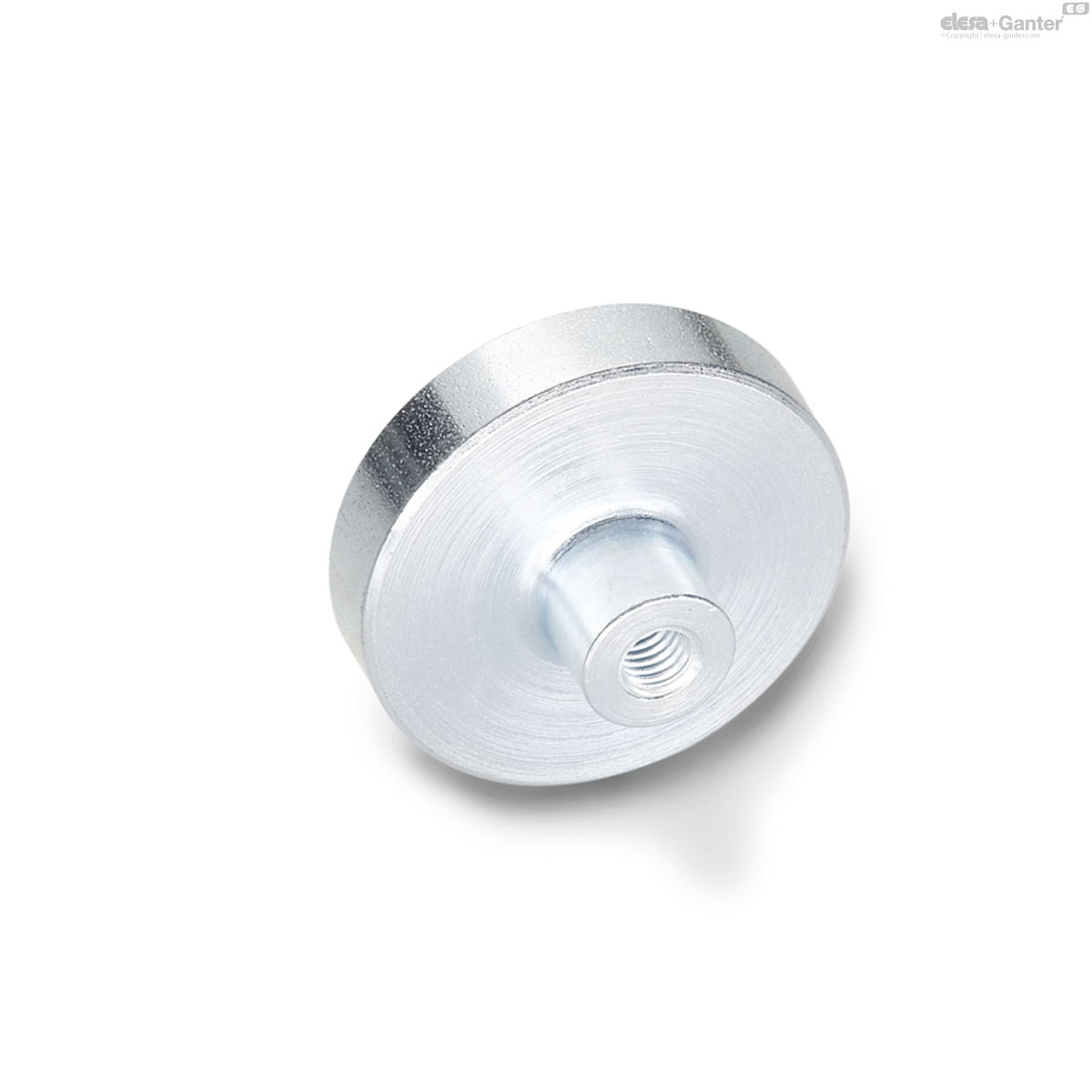

GN 50.2 Retaining magnets

disc-shaped, with female thread
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 50.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 50.2-HF-47-9-M6
d1
47 +0.2/-0.1
h
9 +0.4/-0.2
d2
M 6
d3
12 ±0.2
l
11.5
t
10
Nominal adhesive forces in N
180
91
50.2-HF-47-9-M6 drawing

Housing

Steel, zinc plated

Materials of the magnet:

Hard ferrite HF

temperature resistant up to 200 °C

SmCo SC

Samarium, cobalt

temperature resistant up to 200 °C

NdFeB ND

Neodymium, iron, boron

temperature resistant up to 80 °C

Retaining magnets GN 50.2 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
