761.1-100-T-ST
GN 761.1-ST Steel
Eta: 1-2 weeks All sizes and variants of GN 761.1
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 761.1-100-T-ST
- Size
- 100
- FH in N
- 1000
- a
- 8.3
- b1
- 52.5
- b2
- 21.5
- b3
- 24
- b4
- 29
- d1
- 5
- d2
- M 5
- d3
- 4.2
- h1
- 18
- h2
- 13.3
- h3
- 25
- l1
- 117.5
- l2 min.
- 22
- l3 min.
- 34.5
- l4
- 6.5
- l5
- 5.5
- l6
- 20
- m1
- 20
- m2
- 13
- m3
- 17.5
- r ≈ for w2 = 0
- 51
- s
- 1.5
- w1 Stroke
- 12
- w2 Adjustable range
- 7
- 62

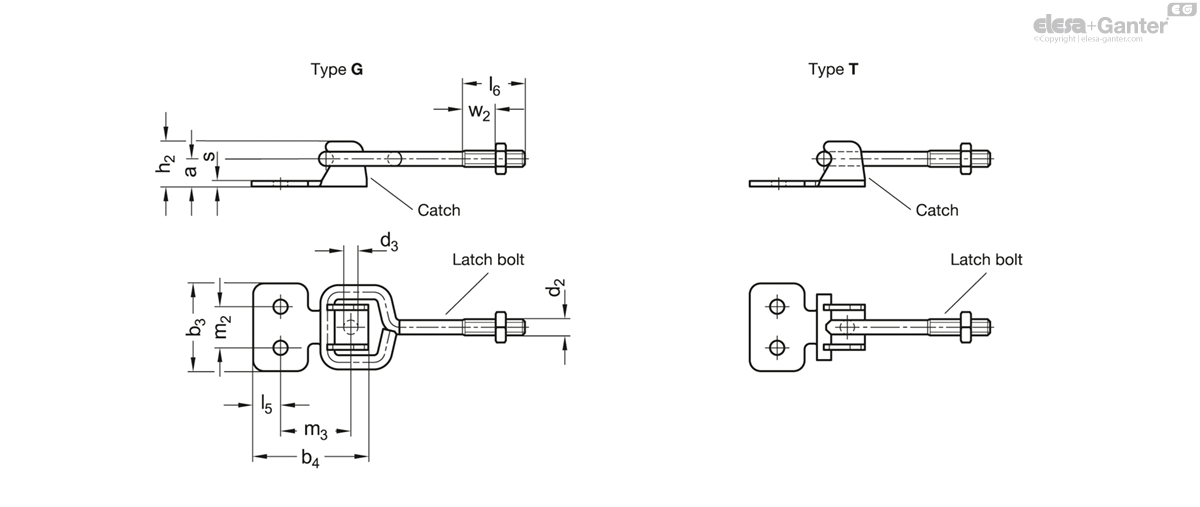

Types
- Type G: Latch bolt with loop, with catch
- Type T: Latch bolt with T-head, with catch
Version in Steel ST
Steel, zinc plated, blue passivated
Version in Stainless Steel NI
Stainless Steel AISI 304
Toggle latches GN 761.1 are especially suited for rapid closing and fastening of covers, container lids and boxes.

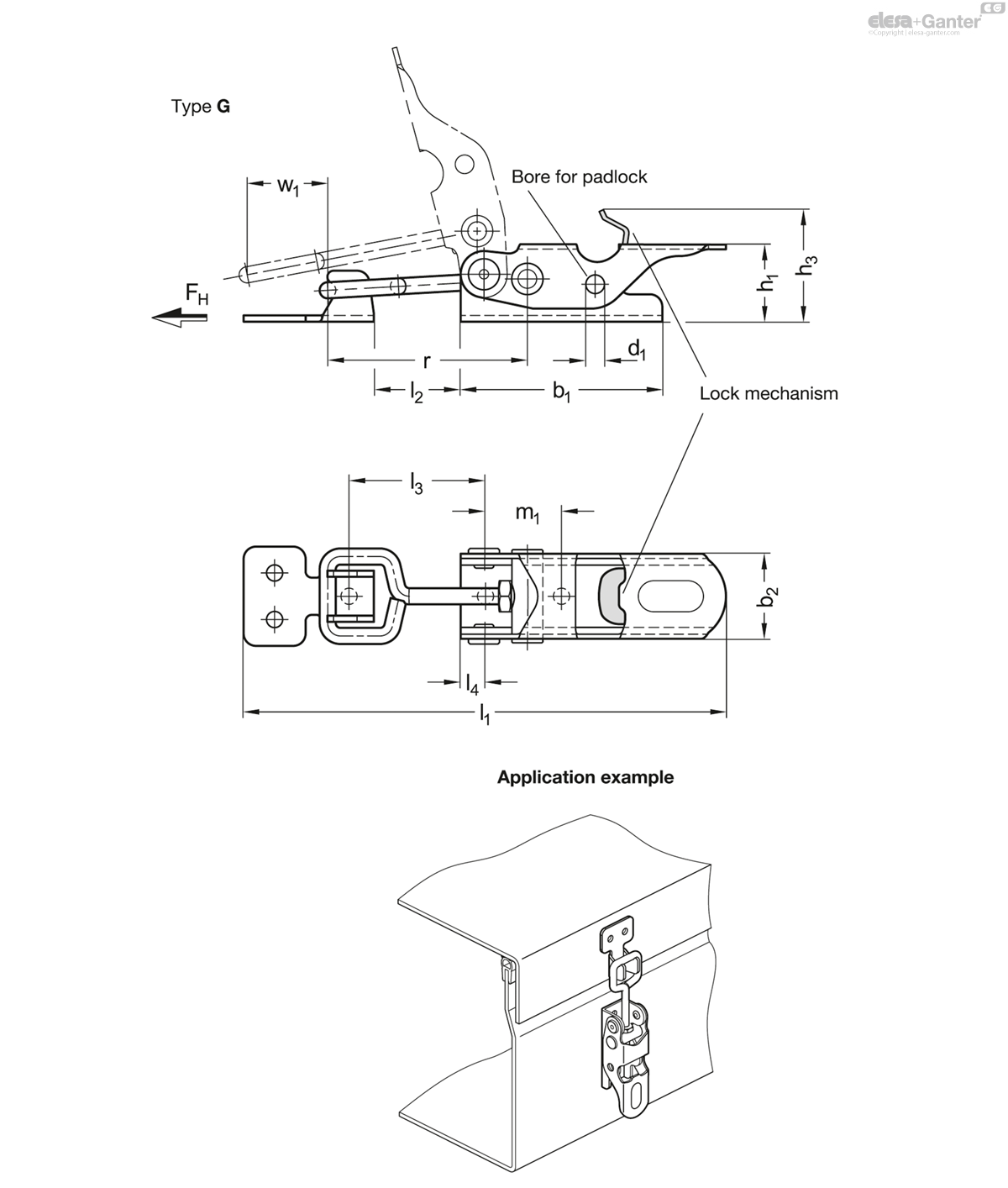

When the lever is closed, the eccentric configuration of the rod shaft causes the latch bolt to move towards the catch. At the end of the lever movement, the rod shaft has exceeded the eccentric dead center point, thereby automatically keeping the toggle latch closed.
For toggle latches GN 761.1 with lock mechanism, when the lever is closed, a safety hook clicks firmly into the base body. This prevents inadvertent or vibration-induced release from the clamping position. To open the latch, the safety hook can be unlocked with a single hand.
The latch bolts of the toggle latches can be adjusted within the adjustable range w2. The catch is included.
