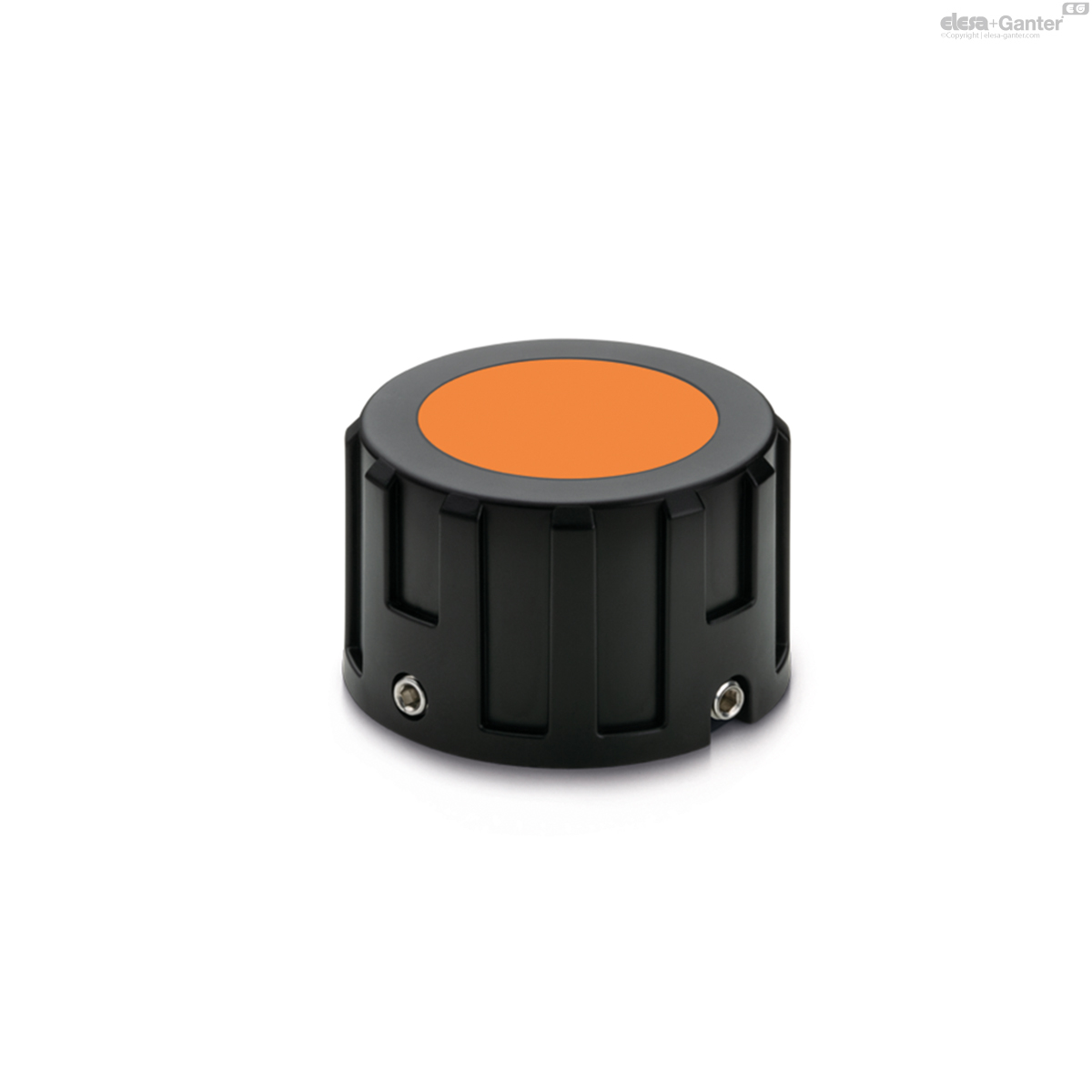

MDX.51-N-C2 MDX-51-N Without graphic symbol

MDX.51-N-C2

MDX-51-N Without graphic symbol

For DD51 and DD51-E indicators, technopolymer
  • PA
  • RoHS
  • g80
  • ELE OD

Eta: 1-2 weeks All sizes and variants of MDX-51

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
CE.85831-N-C2
D
32
L
20
d1
20.5
d2
M4
16

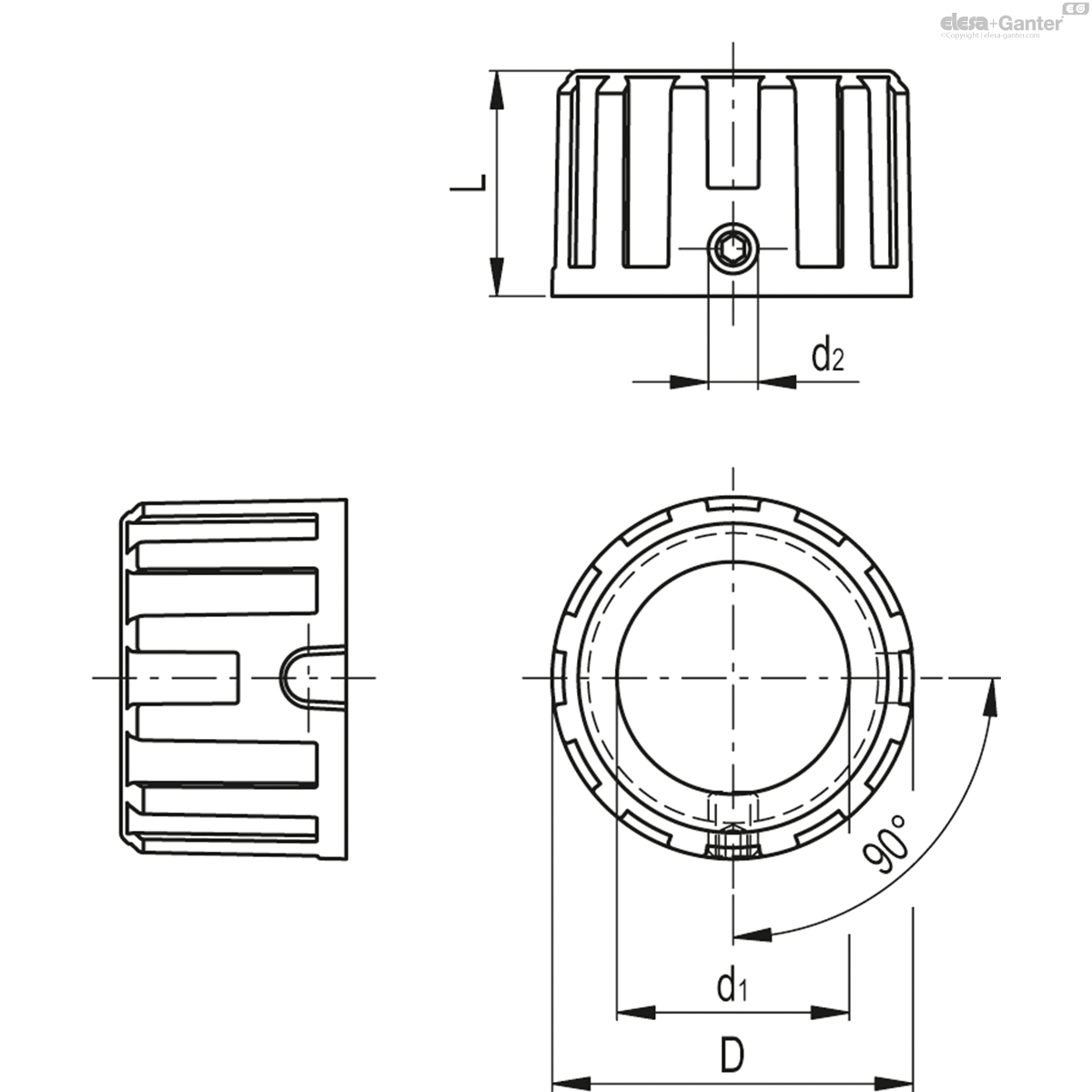

MDX.51-N-C2 drawing
MDX.51-N-C2 drawing

Knob

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Cap

Polypropylene based (PP) technopolymer, RAL 7021 (C9) black, RAL 2004 (C2) orange or RAL 7035 (C3) grey colour, matte finish, press-fit assembly.

Can be removed easily from the knob when not fitted to the indicator, if required.

Standard executions

  • MDX-51-N: no graphic symbol.
  • MDX-51-D: with arrow indicating clockwise increase.
  • MDX-51-S: with arrow indicating anti-clockwise increase.

Applications

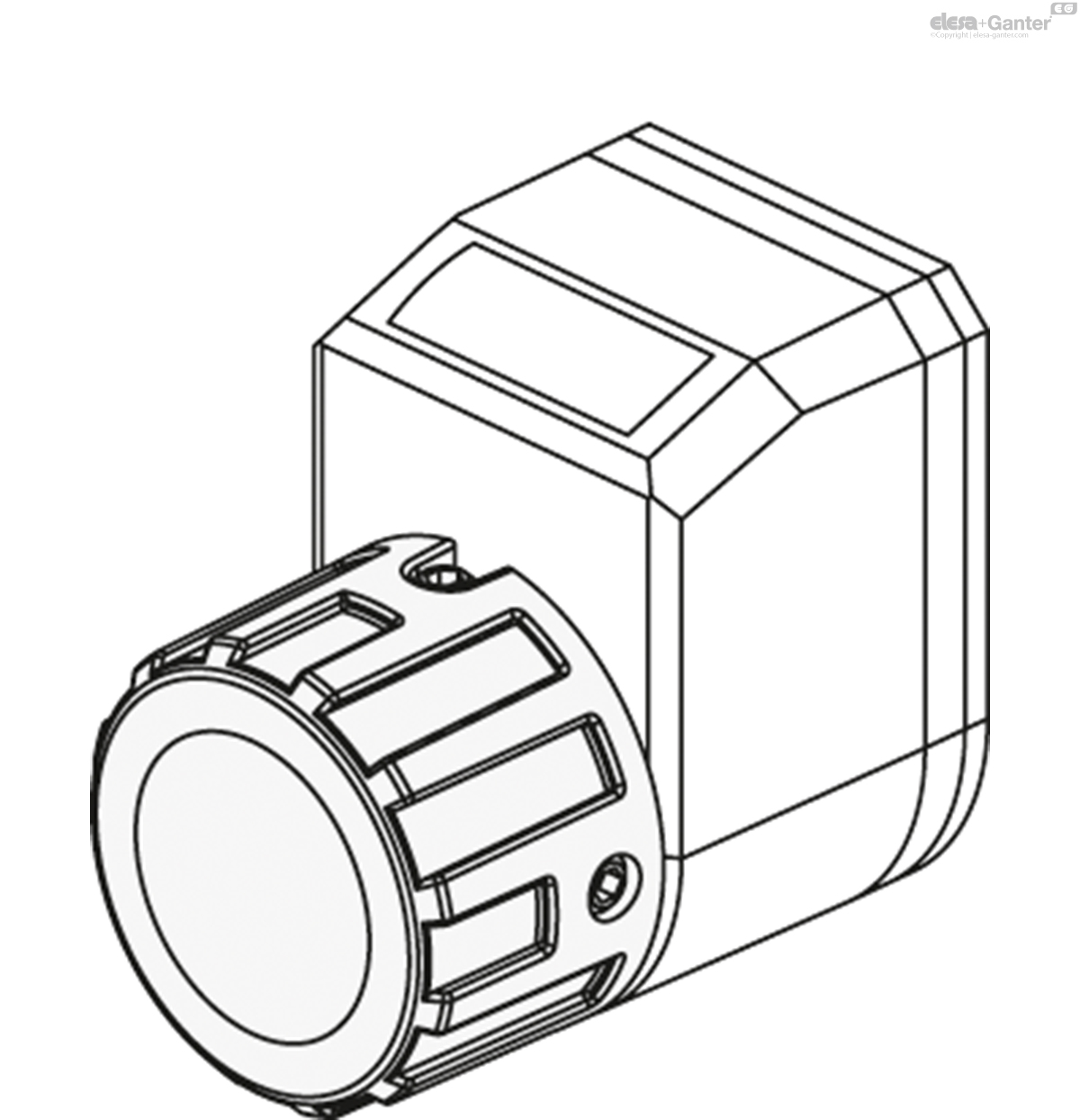

The MDX-51 knob is made to be fitted to mechanical position indicators DD51 and electronic position indicators DD51-E.

Accessories on request

CA.VCT: polypropylene-based (PP) technopolymer cap, in Elecolors colours, matte finish, press-fit assembly. For sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.

Assembly instructions

  • Remove the screw from the indicator boss and replace it with a longer stainless steel screw (M4x8 supplied).
  • Fit the knob to the indicator boss, fitting the slotted seat into the new screw.
  • Fix the knob to the indicator boss using the non-hexagonal socket head stainless steel grub screw with cup end, as per UNI 5929-85 (M4x6 supplied). Suggested tightening torque: 0.3 Nm
