6336-A4-32-M6-D-PL GN 6336 Star Knobs
Material no. AISI 316 (A4)
Eta: 1-2 weeks
Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

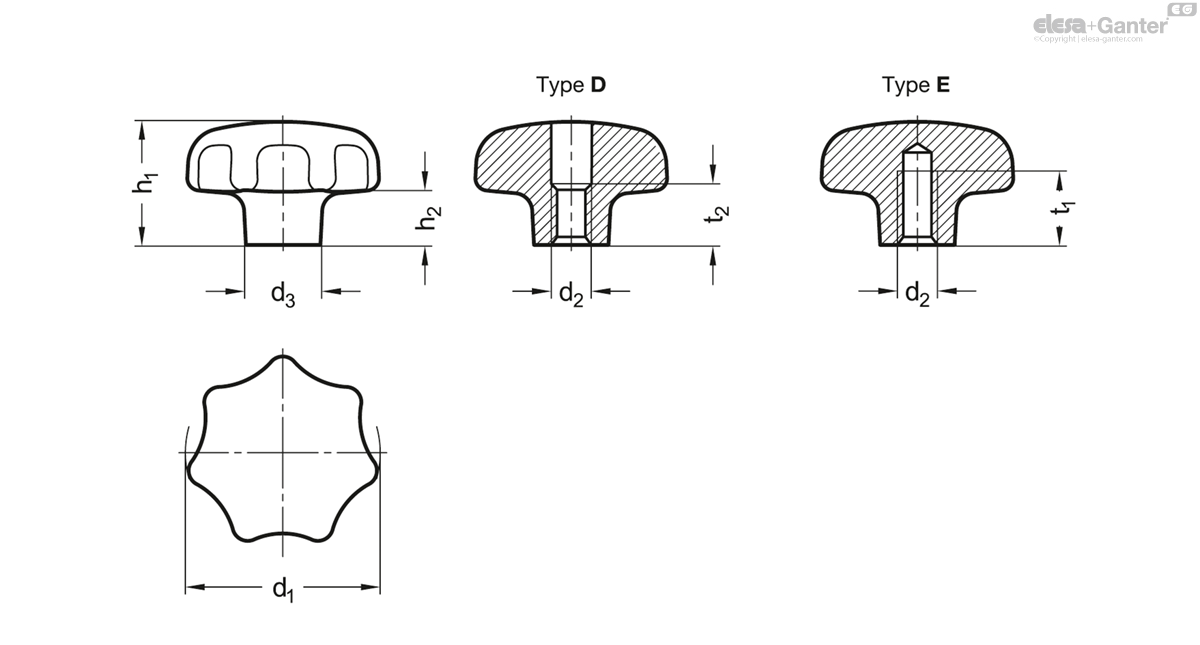

Technical data
- Catalogue
- GN 6336-A4-32-M6-D-PL
- d1
- 32
- d2
- M 6
- d3
- 12
- h1
- 20
- h2
- 9
- t2
- 10
- 55
Types
Types
- Type D: with threaded through bore
- Type E: with threaded blind bore
Stainless Steel precision casting A4
- AISI 316
- polished PL

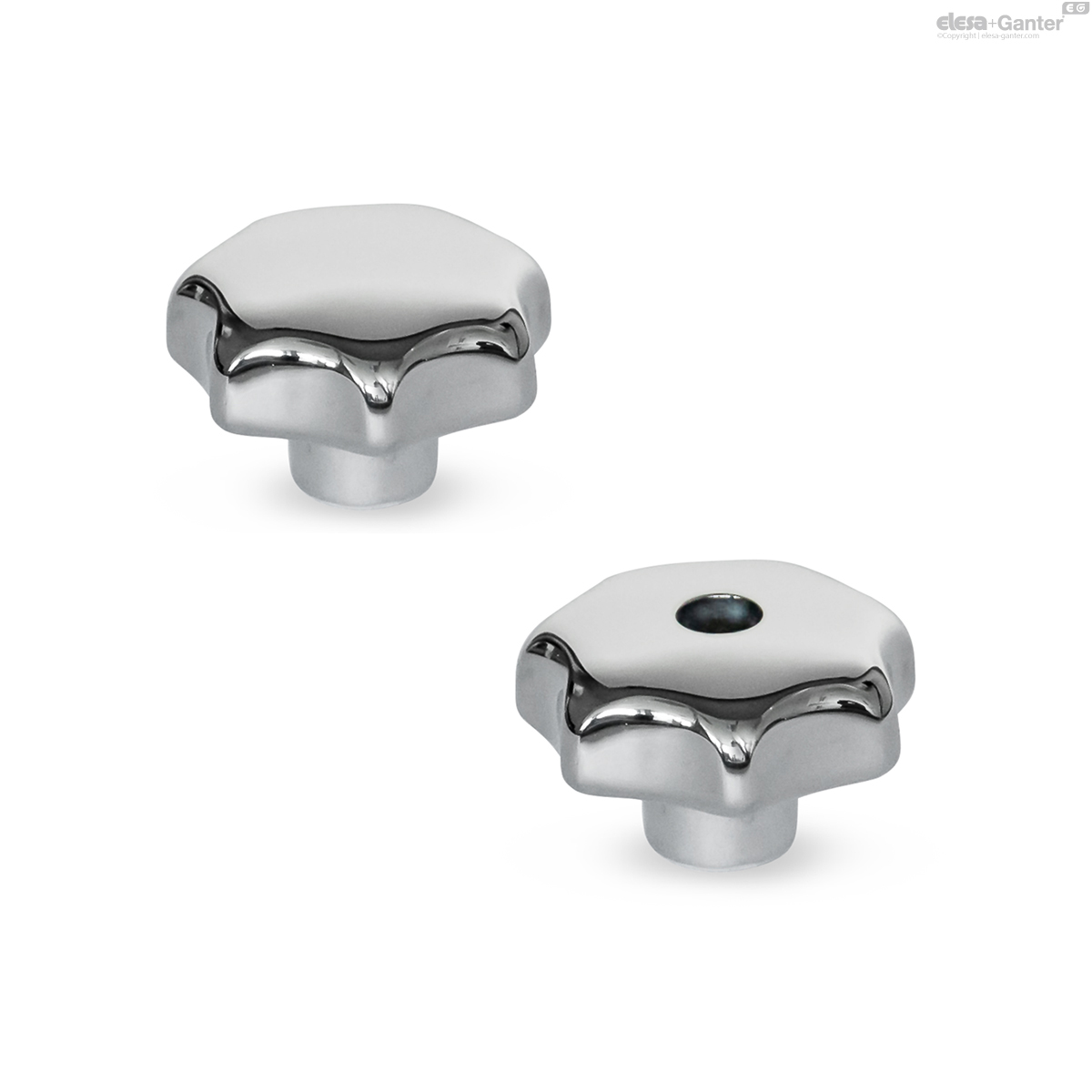

Stainless Steel-Star knobs GN 6336 satisfy the dimensions of the DIN 6336 but differ in terms of their non-scooping geometry, which makes cleaning easier and helps prevent possible build-up of dirt.
They are suitable for areas with special hygiene requirements and, thanks to the material used, for applications in highly corrosive environments.
