828-8-UB-20-AM GN 828-UB with groove, mounting from the front

828-8-UB-20-AM

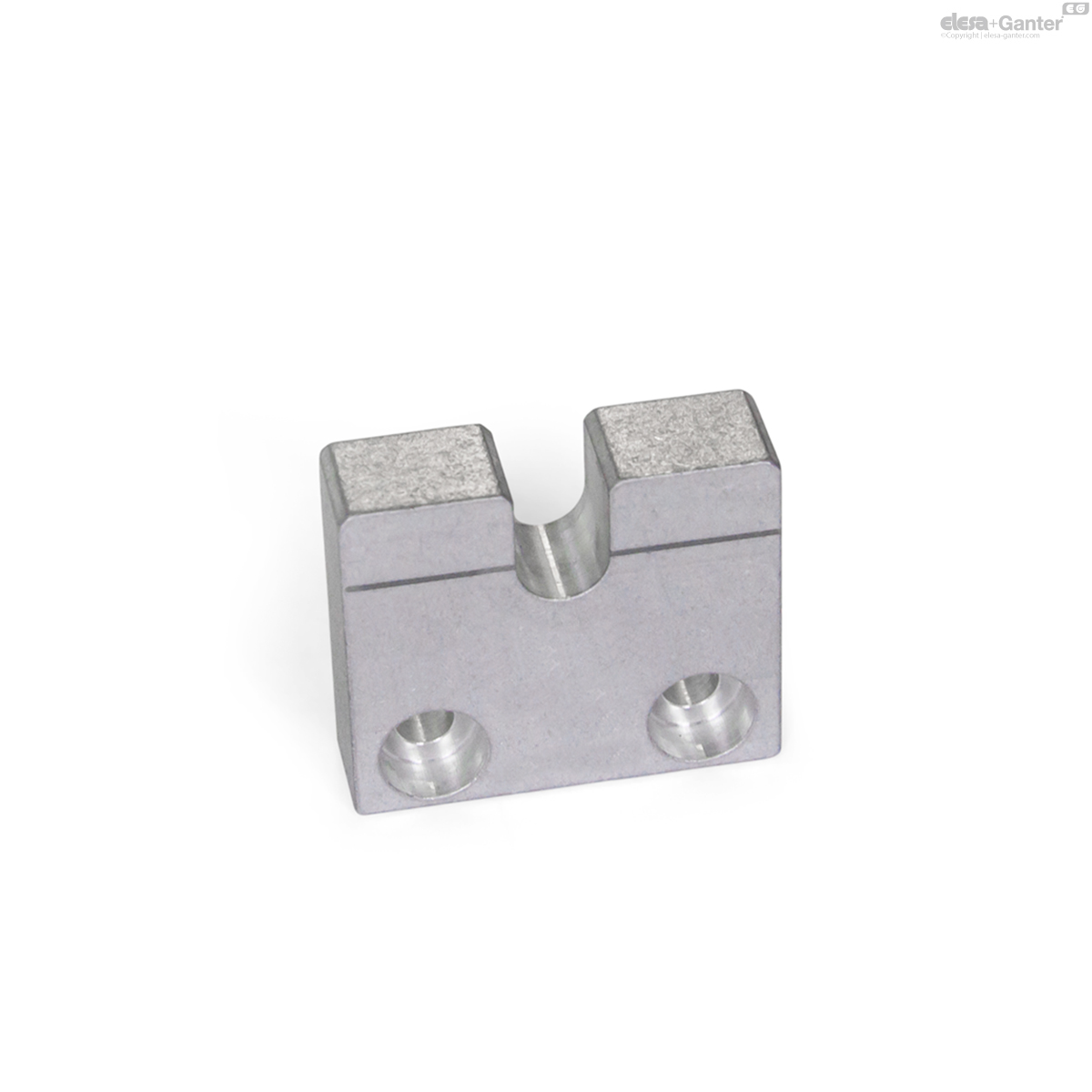

GN 828-UB with groove, mounting from the front

for Stainless Steel-Adjusting screws GN 827
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 828

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 828-8-UB-20-AM
d1 +0.6/+0.4
8
h1
20
b h11
12
d2
5.5
h2
8
h3
6
k
6.6
l
40
m
25
40

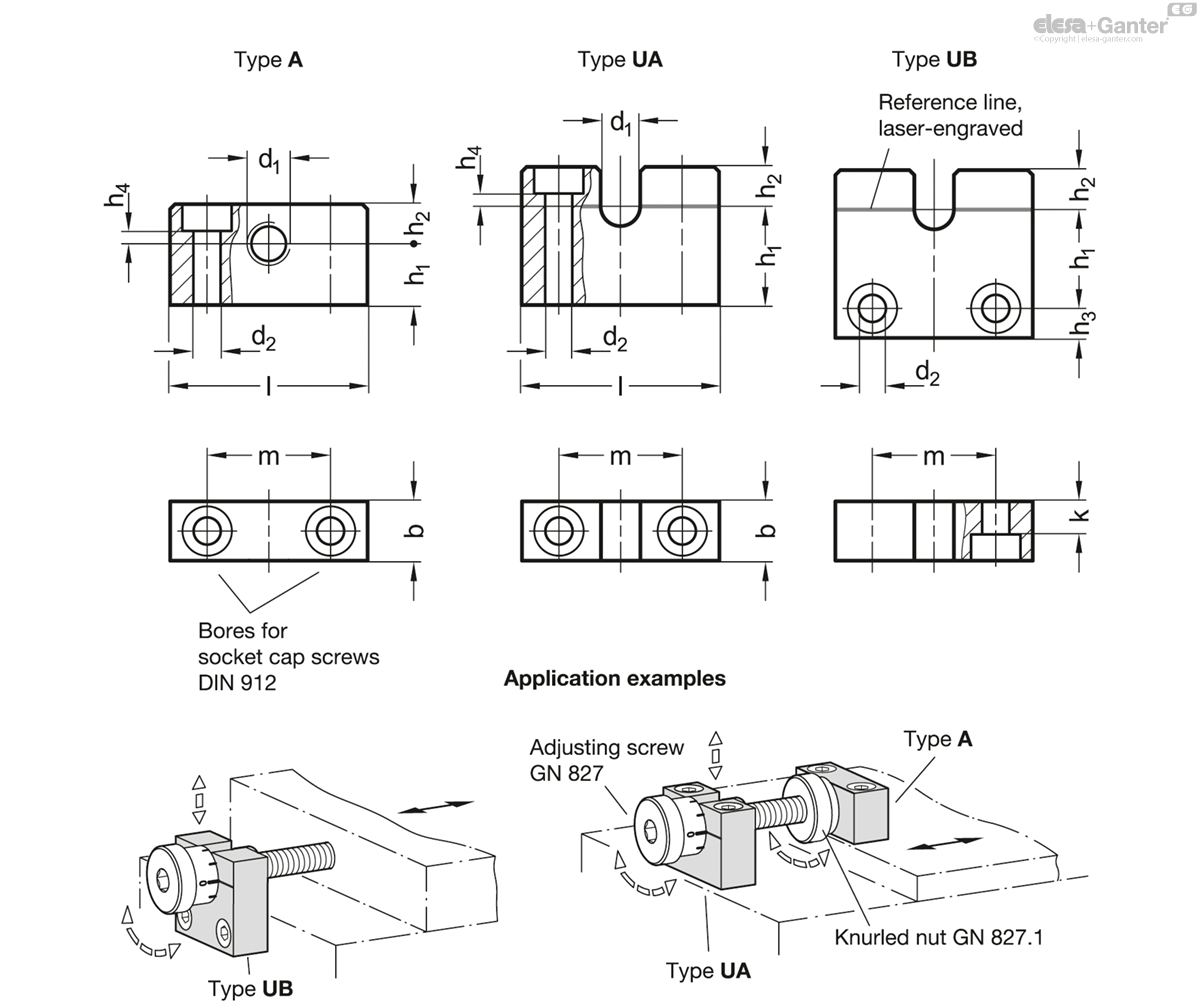

828-8-UB-20-AM drawing

Types

  • Type A: with thread, mounting from above
  • Type UA: with groove, mounting from above
  • Type UB: with groove, mounting from the front

Aluminum AM

matte ground

Reference line

laser-engraved, black discharged

Bearing blocks GN 828 are used in combination with Stainless Steel-Adjusting screws GN 827 for simple adjustment and positioning tasks.

For processing and assembly equipment on which attachments and mechanisms must be regularly exchanged, particularly simple adjustments can be achieved by combining adjusting screws GN 827 knurled nuts GN 827.1 and bearing blocks GN 828 of the types UA and UB to ensure that settings are retained even between uses.

On the opposing part, type A or threading already present in the mounting plate can be used.

  • Stainless Steel-Adjusting screws GN 827
