369.5-63-B10-A GN 369.5-A without slot

369.5-63-B10-A

GN 369.5-A without slot

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 369.5

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 369.5-63-B10-A
l ≈
63
d1 H9
B 10
d2
18
h1
28
h2 ≈
18
h3 ≈
74
h4 ≈
40
t +0.5
18
Ø Handle
18
For screws
DIN 912
M 5
90

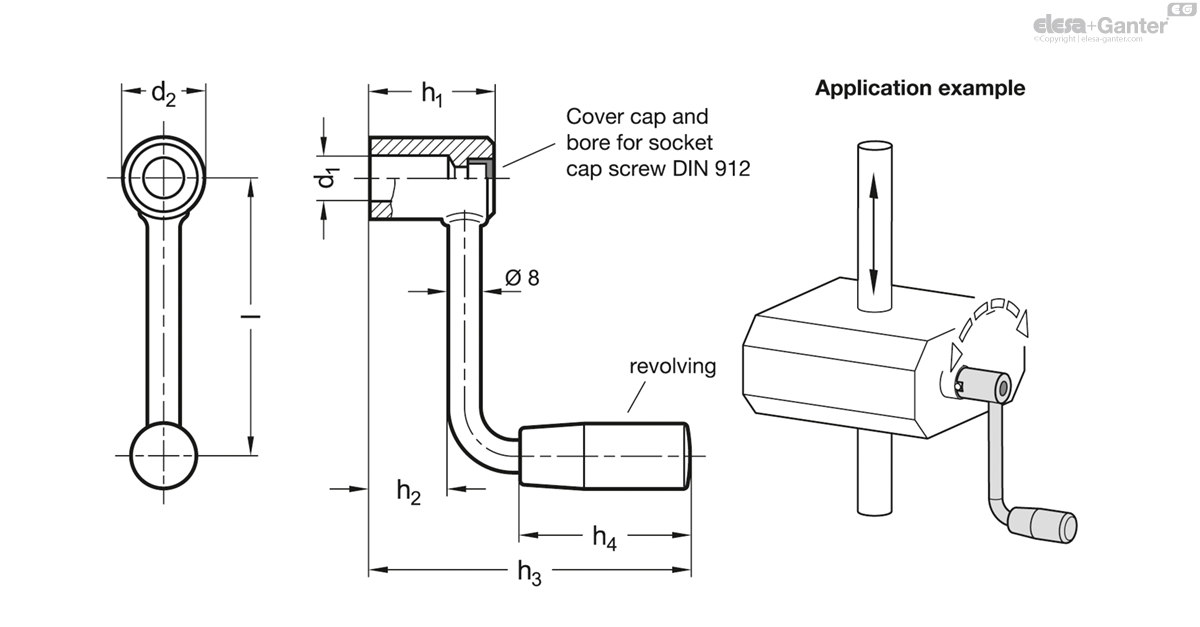

369.5-63-B10-A drawing

Types

  • Type A: without slot
  • Type N: with slot

Stainless Steel AISI 304

  • shot-blasted
  • Crank butt-welded

Cover cap

Plastic, black

Revolving handle

  • Plastic, Duroplast, black, shiny finish
  • temperature resistant up to 110 °C

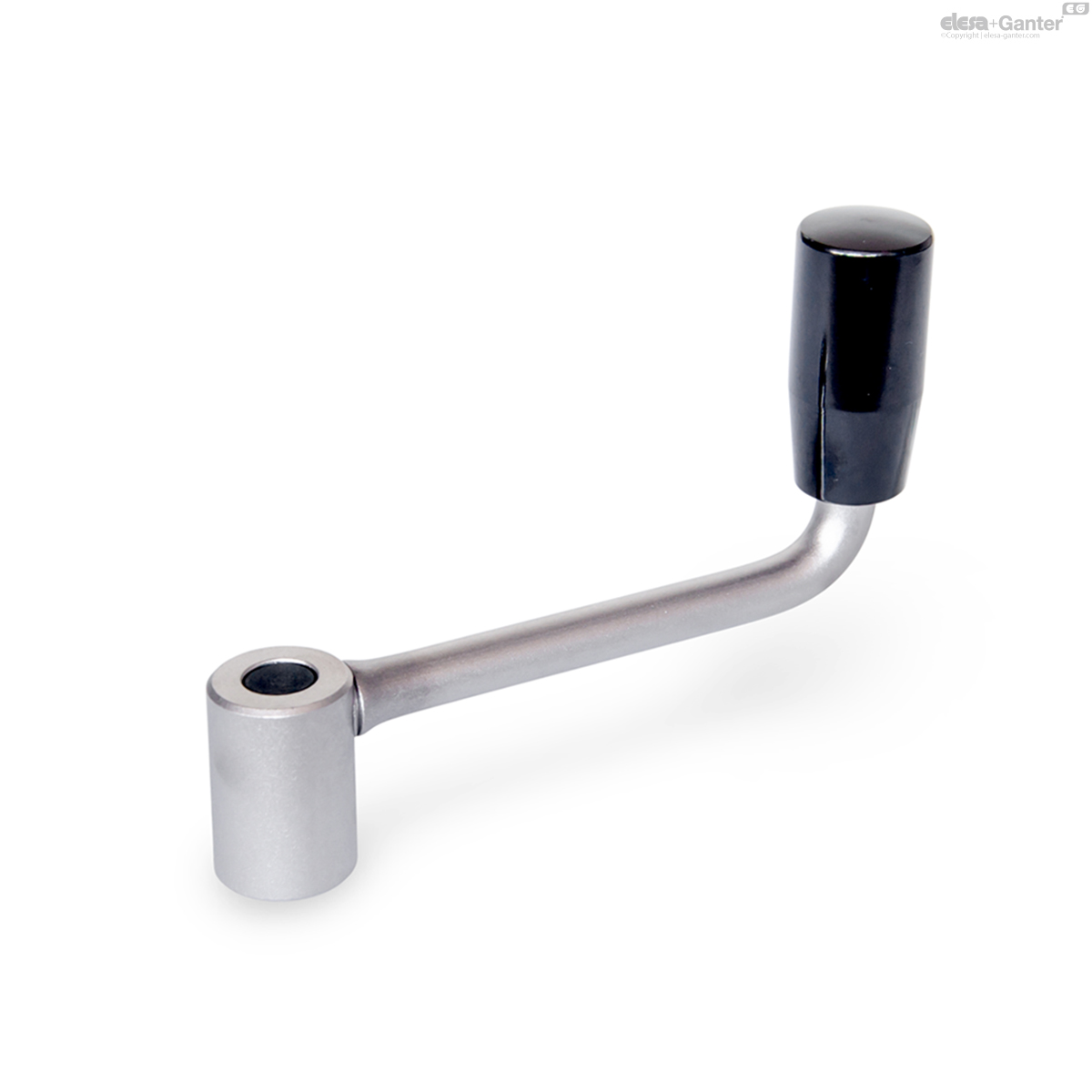

Stainless Steel-Cranks GN 369.5 feature a compact design and are used for light drive and positioning tasks. Thanks to the material used, the cranks are also suitable for more aggressive environments.

The slot of type N easily transfers the rotary movement to the shaft by means of a transverse pin mounted in the shaft. The crank can be connected removably or permanently fastened axially with a socket head cap screw DIN 912. Type A can be ordered with transverse holes for GN 110.

Thanks to a simple manufacturing process, it is relatively easy and inexpensive to produce these cranks as special designs.
