314-20-80-L-SU-NI GN 314 Stainless Steel-Locking pins

314-20-80-L-SU-NI

GN 314 Stainless Steel-Locking pins

with L-Handle, lockable
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 314

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 314-20-80-L-SU-NI
d1 -0.05
20
l1 +0.5
80
b1
12
b2
4
d2
23.7
d3
5
d4
35.5
d5
28
l2 ±1
7.5
l3
40.5
l4
65
Load in kN ≈
(Double sided
shear force)
see information
227
295

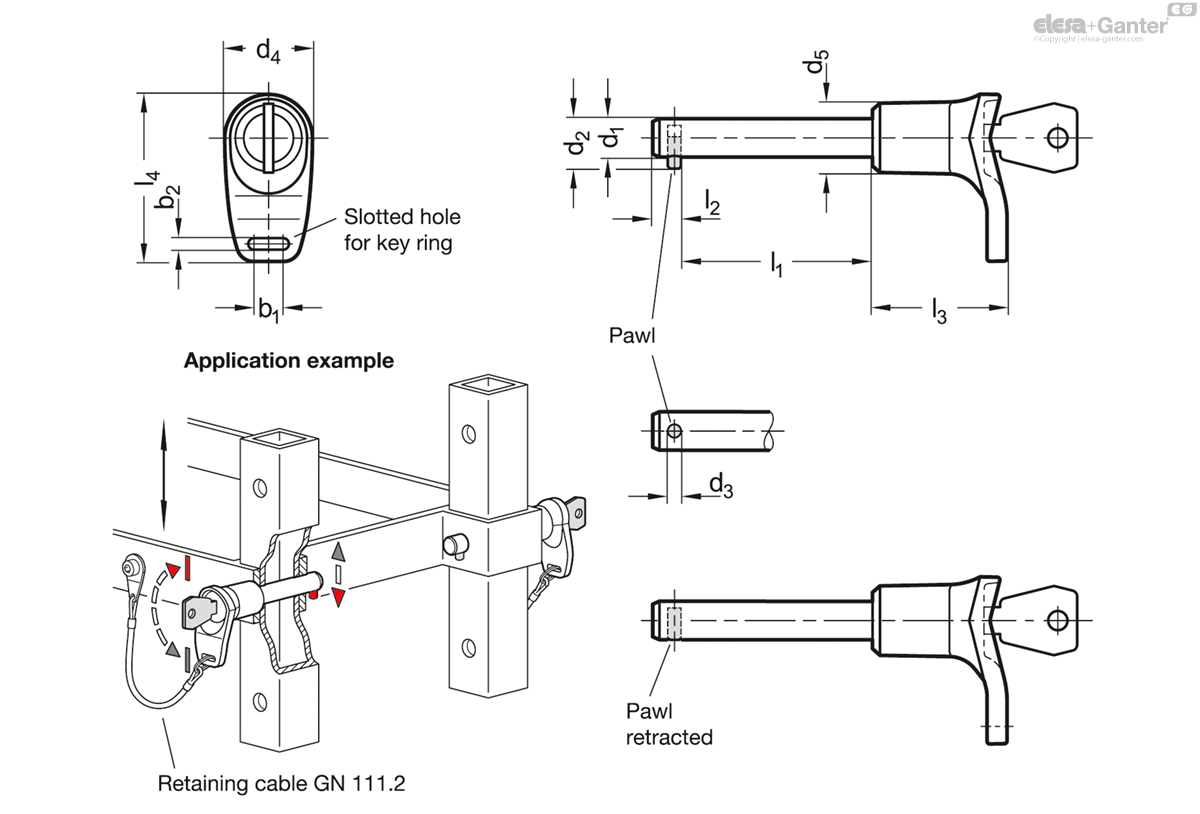

314-20-80-L-SU-NI drawing

Type

  • Type L: with L-handle

Identification

  • SC: with key (keyed alike)
  • SU: with key (keyed differently)

Plunger pin / Pawl

Stainless Steel AISI 303 NI

L-Handle

Plastic (Polyamide PA)

  • black
  • temperature resistant up to 80 °C

Lock mechanism

Zinc die casting / Stainless Steel

Key (two pieces)

Steel, nickel plated

Stainless Steel-Locking pins GN 314 with L-Handle and key are used for quick fixing, connecting and locking of various jig and fixture systems without the need for tools. Turning the key 180° moves the pawl at the front end of the pin to engage the axial locking of the inserted pin. After locking, unauthorized removal is no longer possible. The key can be removed in both end positions.

The key can be removed in the end positions. Locks with coding SC are keyed alike, allowing each lock to be operated with the same key. Locks with coding SU have different locks with 68 different lock versions and correspondingly numbered keys.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
