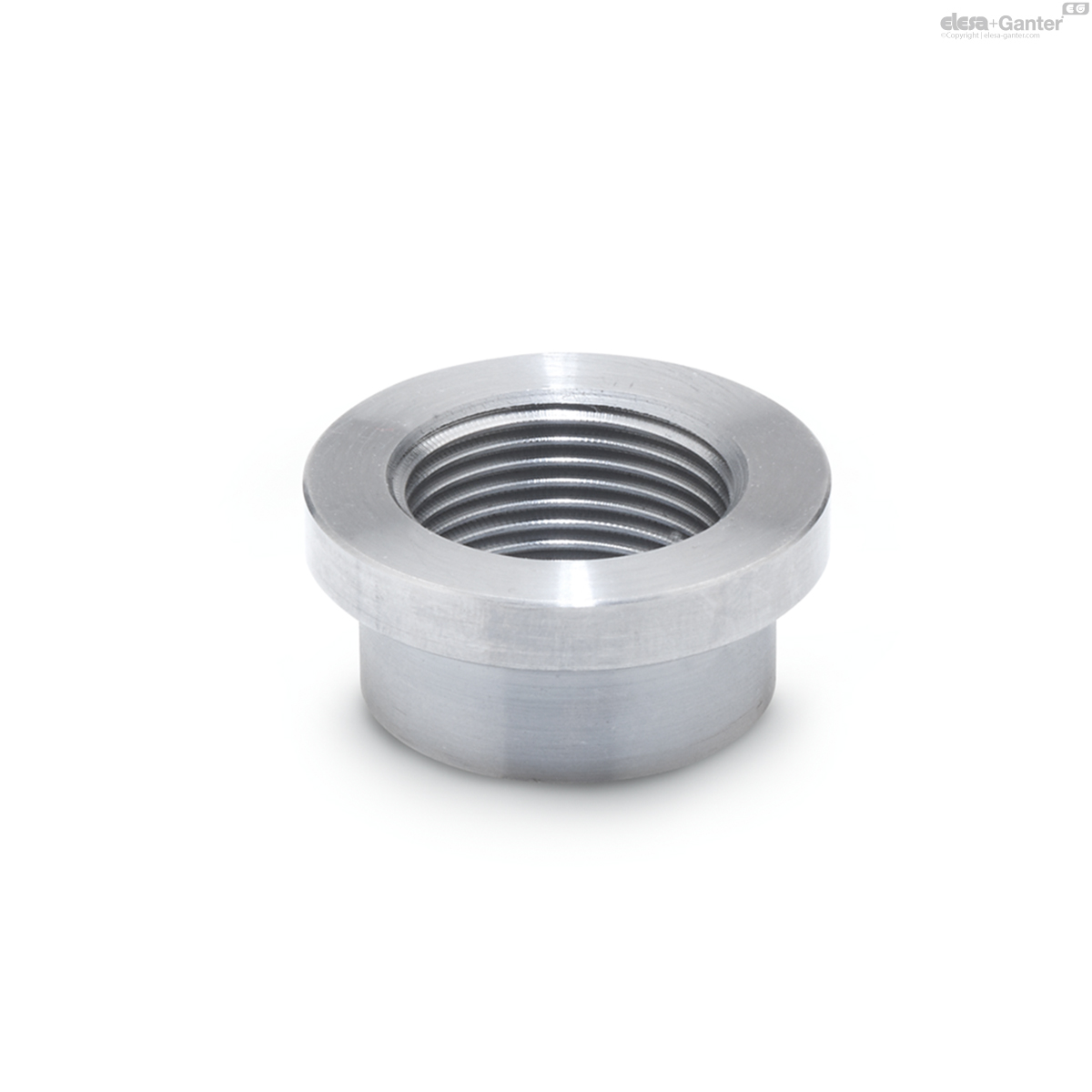

7490-ST-M27X2-B GN 7490 Steel

7490-ST-M27X2-B

GN 7490 Steel

Steel / Stainless Steel, with and without Collar
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 7490

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 7490-ST-M27x2-B
d1
M 27 x 2
d2
40
d3
32
h1
18
h2
6
53
7490-ST-M27X2-B drawing

Types

  • Type A: With chamfer
  • Type B: With collar

Version in Steel

Steel ST

  • Weldable
  • Turned
  • Plain

Version in Stainless Steel

Stainless steel AISI 304 NI

  • Weldable
  • Turned
  • Plain

Welding sockets GN 7490 are used to attach threaded connections to containers, tanks or hydraulic cylinders via welding.

Filling and draining screw plugs as well as aeration and venting elements and oil level sight glasses can then be easily installed by screwing them in.

The flat surfaces are machined and can be used as sealing surfaces in connection with a suitable sealing element.

The sufficiently dimensioned walls prevent deformation or burn-through during welding

Type B (with collar) is used if exact positioning within the mounting bore or a low installed height is desired.
