454-16-8-4,3-40 GN 454 Buffers

454-16-8-4,3-40

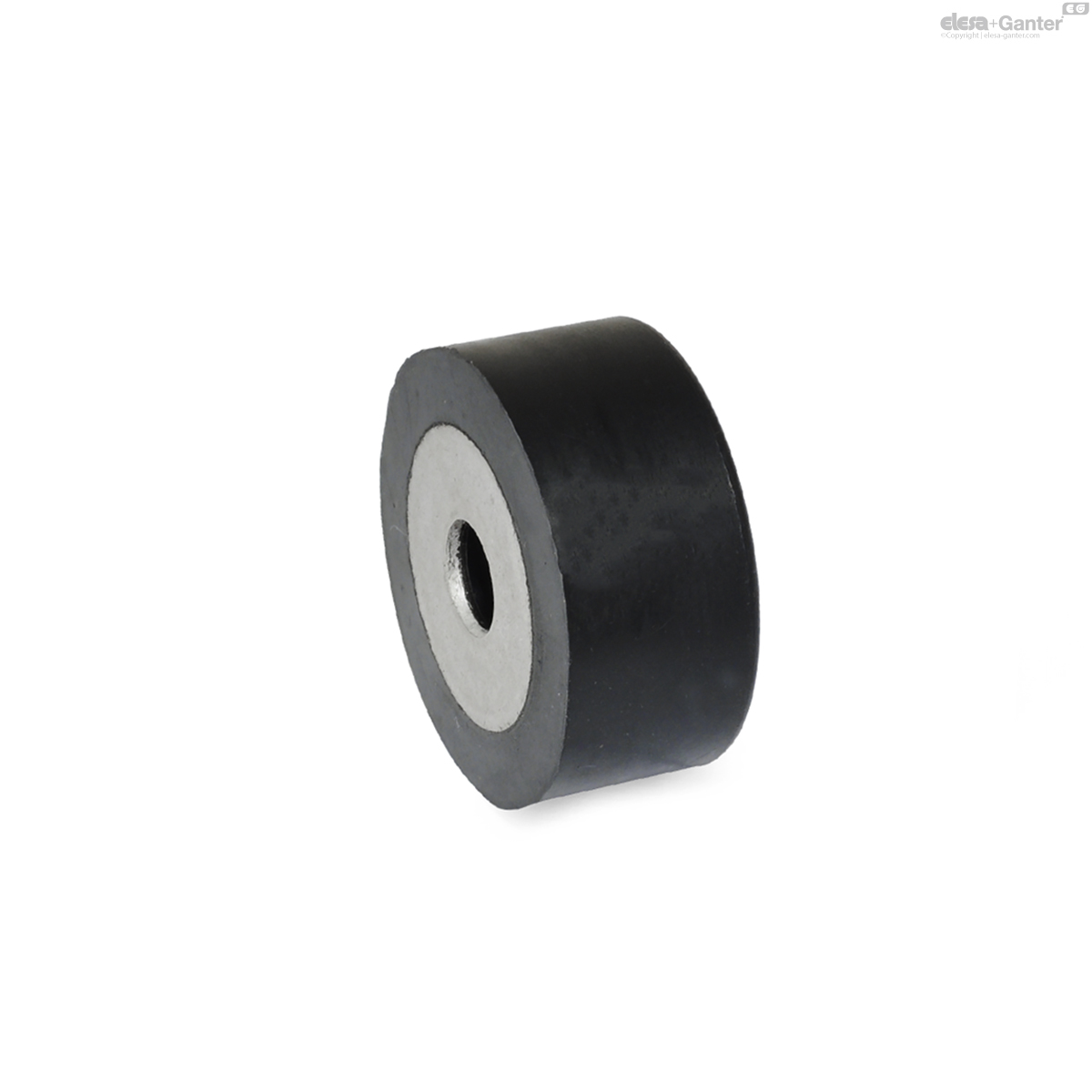

GN 454 Buffers

Retaining washer Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 454

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 454-16-8-4,3-40
d1
16
h
8
d2
4.3
d3
8
s
1
Spring rate ≈
in N/mm
(Hardness 55)
75
max. load in N
(Hardness 55)
150
max. travel ≈
in mm
2
3

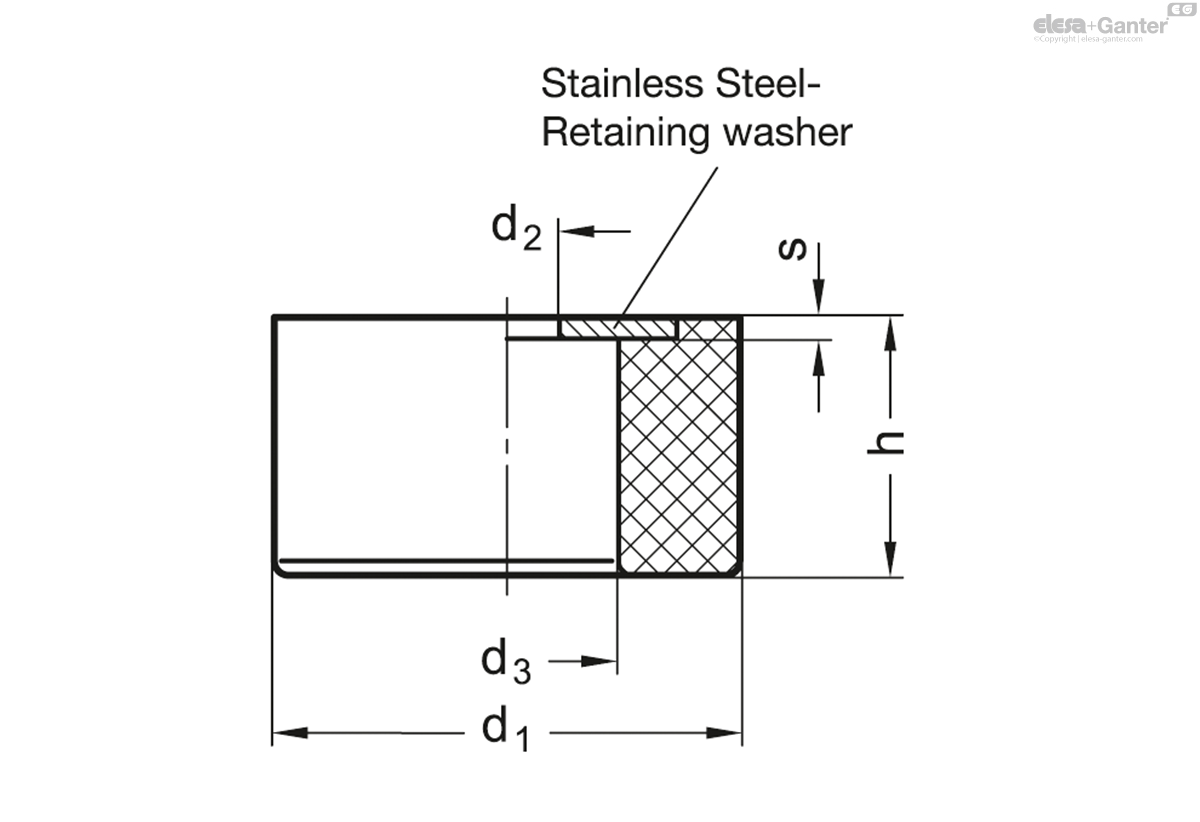

454-16-8-4,3-40 drawing

Rubber

NBR (Perbunan®)

  • black
  • vulcanized to the retaining washer
  • temperature resistant up 120 °C
  • Hardness Shore A ±5

soft 40

medium 55

hard 70

Retaining washer

Stainless Steel A2

Buffers GN 454 are used as end-stop buffers, e.g. conveyor trolleys. They can be fixed on the damping side with socket head cap screws DIN 912.

They absorb most of the kinetic energy development on impact. They act as dampers and prevent damaging shock and rebound. They also act as sound dampers.
