333.6-28-300 GN 333.6 Tubular Handles

333.6-28-300

GN 333.6 Tubular Handles

Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 333.6

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 333.6-28-300
d1
28
Length l
300
b1
25
b2
14
b3
50
b4
66
d2
M 8
h1
50
h2
66
t min.
15
730

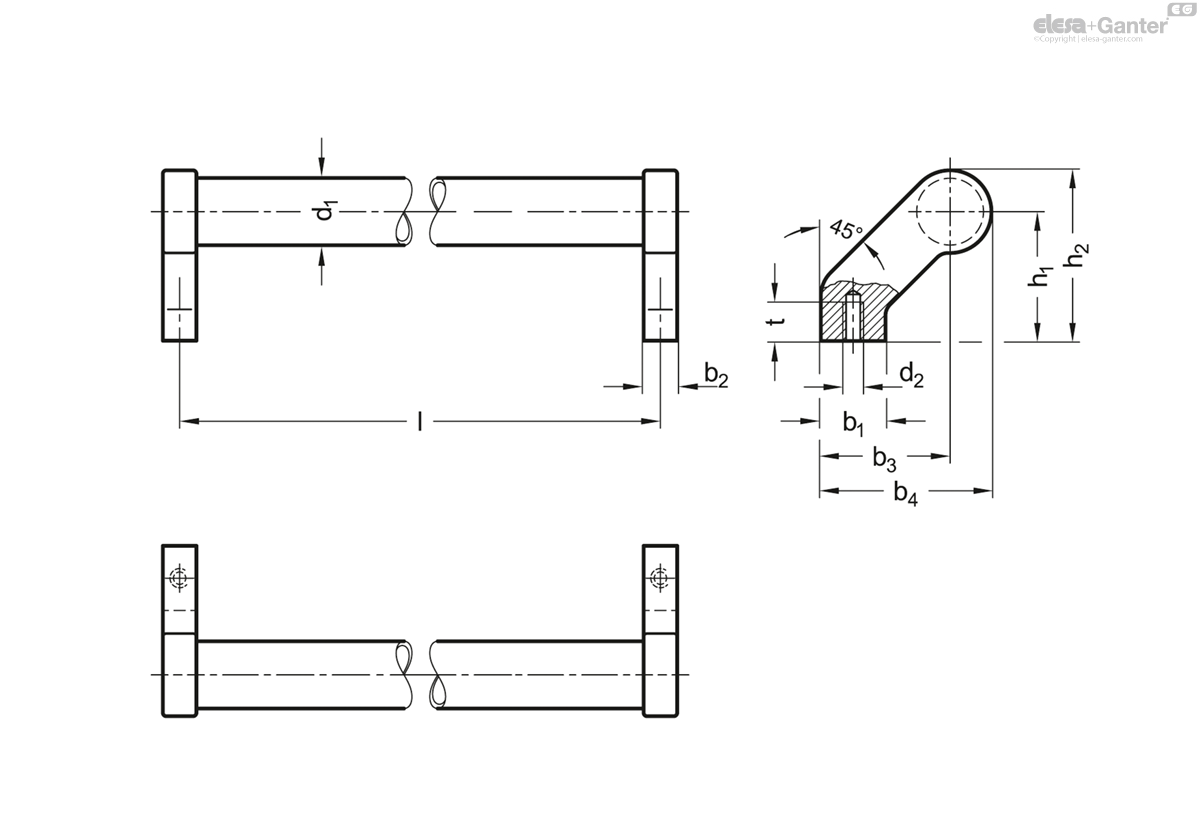

333.6-28-300 drawing

Handle tube

Stainless steel AISI 304, wall thickness 2 mm

Ground, matte shiny finish

Handle legs

Stainless steel precision casting AISI CF-8

Matte shot-blasted

With the tubular handles GN 333.6, the handle legs and the handle tube are pressed together.

A typical application for tubular handles is on double-winged doors for machines or devices.
