864.1-52-FG

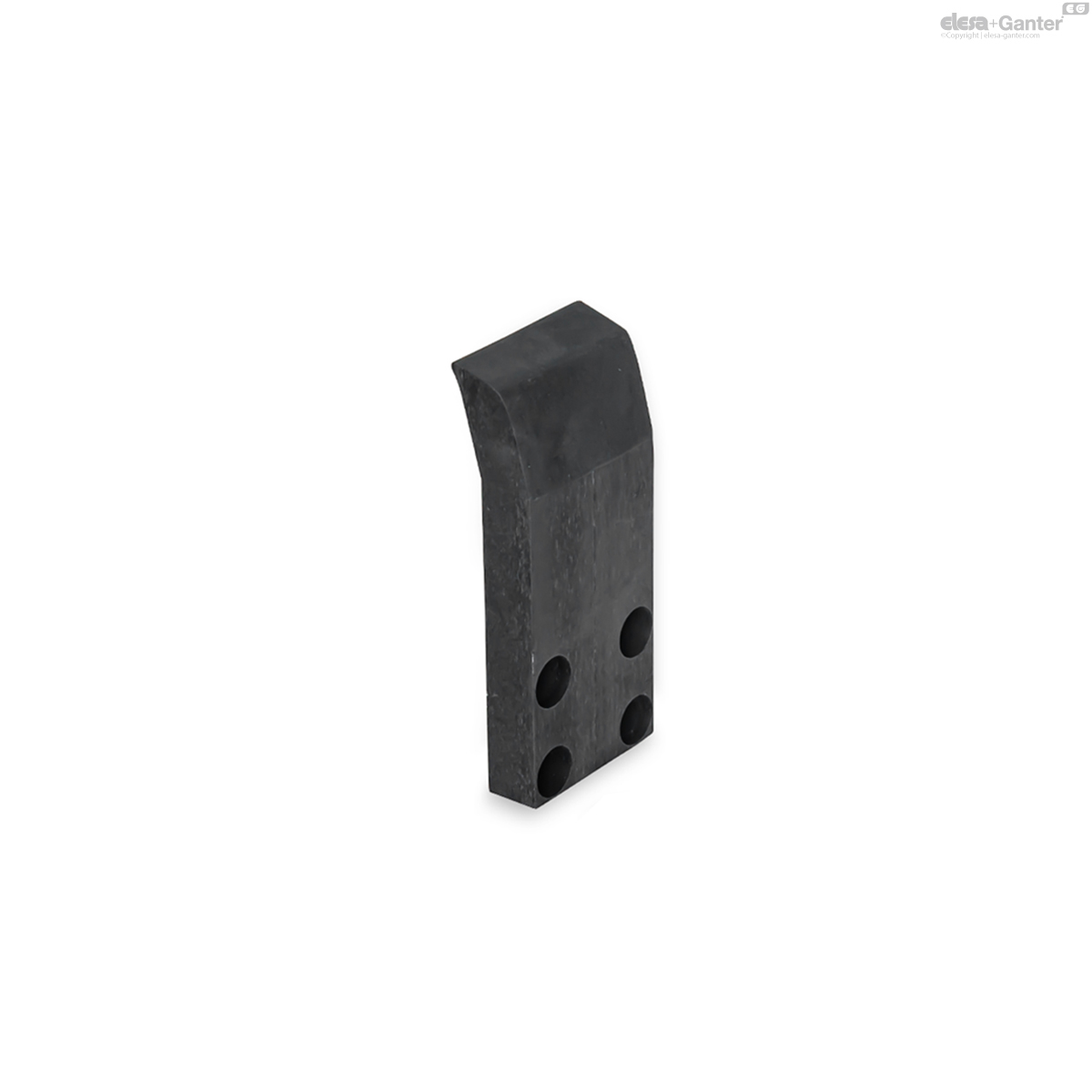

GN 864.1 Protective covers
for power clamps GN 864
Eta: 1-2 weeks All sizes and variants of GN 864.1
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 864.1-52-FG
- For power clamps
GN 864
Size - 40
- s
- 52
- d1
- M8
- d2 H8/h6
- 11
- d3
- 8.5
- d4
- 11
- d5
- 13
- l1
- 131
- l2
- 7.5
- l3
- 14
- l4
- 23
- l5
- 2.1
- m1
- 37
- m2
- 30
- 230
Aluminum
- black anodized ES
- anti-stick coating, fluoropolymer (PTFE), green FG
Socket cap screws DIN 912,
centering guide bushings
Steel, blackened
Protective covers GN 864.1 are designed for power clamps GN 864 and protect the tensioning mechanism from penetrating dirt by covering the back side of the power clamp.
The type FG is equipped with an anti-stick coating of fluoropolymer (PTFE) for protection against welding spray and corrosion.
Socket cap screws and centering guide bushings are included.
