771.2-6-19,5-7,5 GN 771.2 Guide pins

771.2-6-19,5-7,5

GN 771.2 Guide pins

conical, for guide bushings GN 172.1 / GN 179.1
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 771.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 771.2-6-19,5-7,5
d p6
6
l1 ±0.1
19.5
l2 ±0.1
7.5
l3
1.5
4

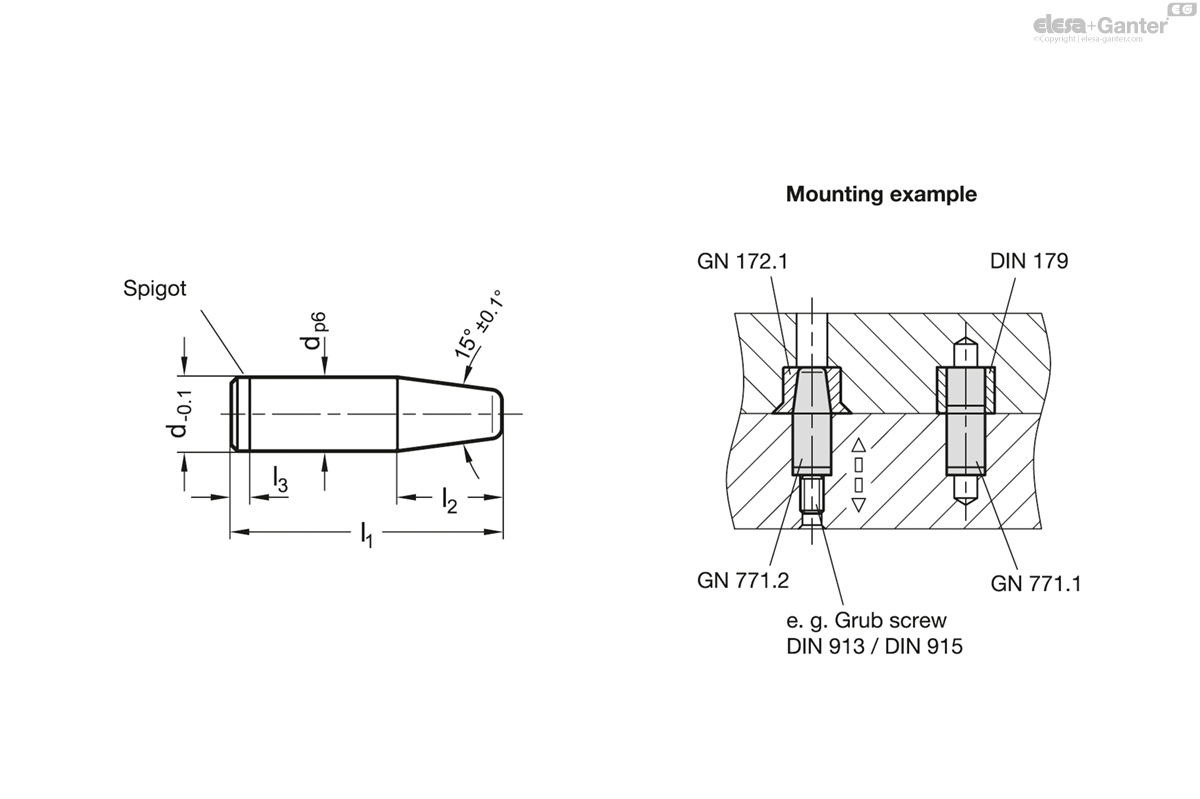

771.2-6-19,5-7,5 drawing

Steel

  • hardened (HRC 60 +4)
  • Fit sizes d p6 / d h6 ground

Guide pins GN 771.2 are used in combination with GN 172.1 / GN 179.1 guide bushings.

The shaft tolerance p6 guarantees a perfect pressfit in a mounting borehole H7. The spigot l3 makes the installation easier.
