6220-ST-M5-35-A GN 6220-ST Steel

6220-ST-M5-35-A

GN 6220-ST Steel

Steel / Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 6220

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 6220-ST-M5-35-A
d
M 5
l1 ±0.1 Threaded
blind hole
35
e ≈
9.2
s
8
t min.
10
12

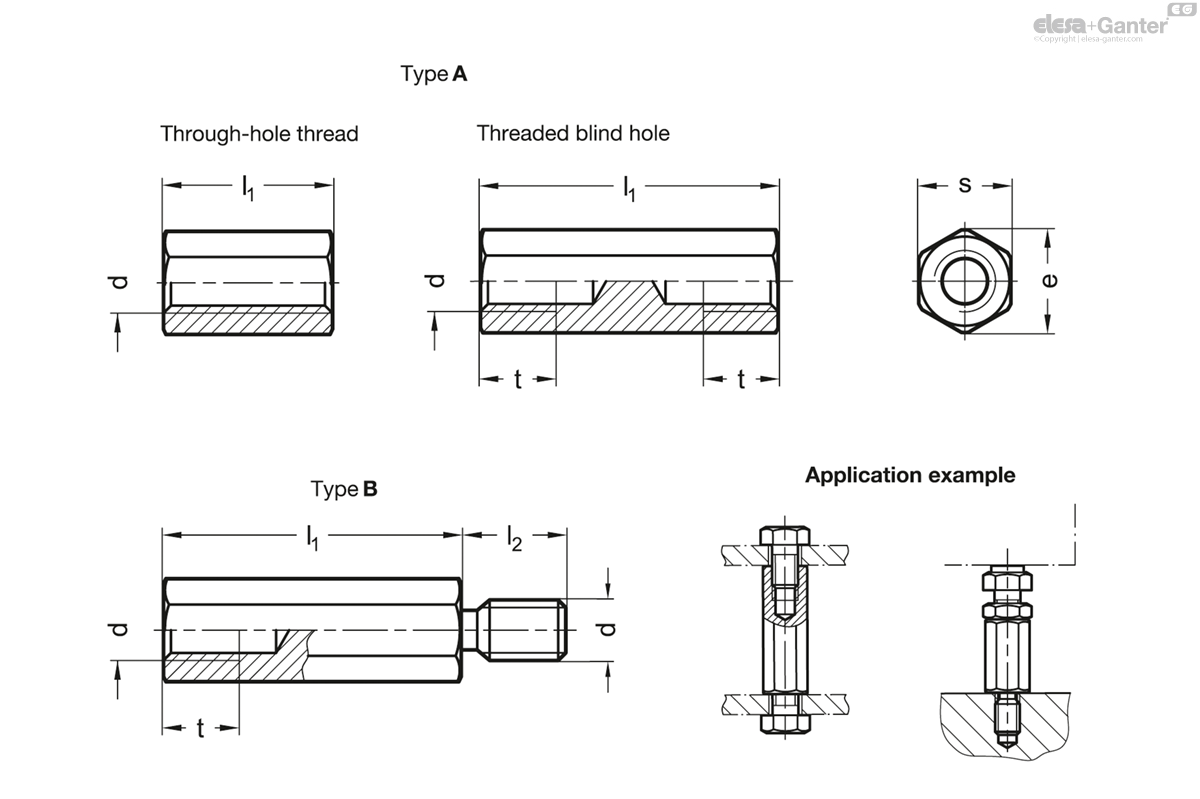

6220-ST-M5-35-A drawing

Types

  • Type A: Internal thread
  • Type B: Internal thread and threaded stud

Steel ST

Zinc plated, blue passivated

Stainless Steel AISI 303 NI

Matte shot-blasted

Spacers GN 6220 are commonly used as spacing rods. They allow parts to be fastened with an offset parallel to their mounting plane. Type A is also used as a connecting nut.
