6220-NI-M10-40-B GN 6220-NI Stainless steel

6220-NI-M10-40-B

GN 6220-NI Stainless steel

Steel / Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 6220

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 6220-NI-M10-40-B
d
M 10
l1 ±0.1
40
e ≈
19.5
l2
16
s
17
t min.
16
77
6220-NI-M10-40-B drawing

Types

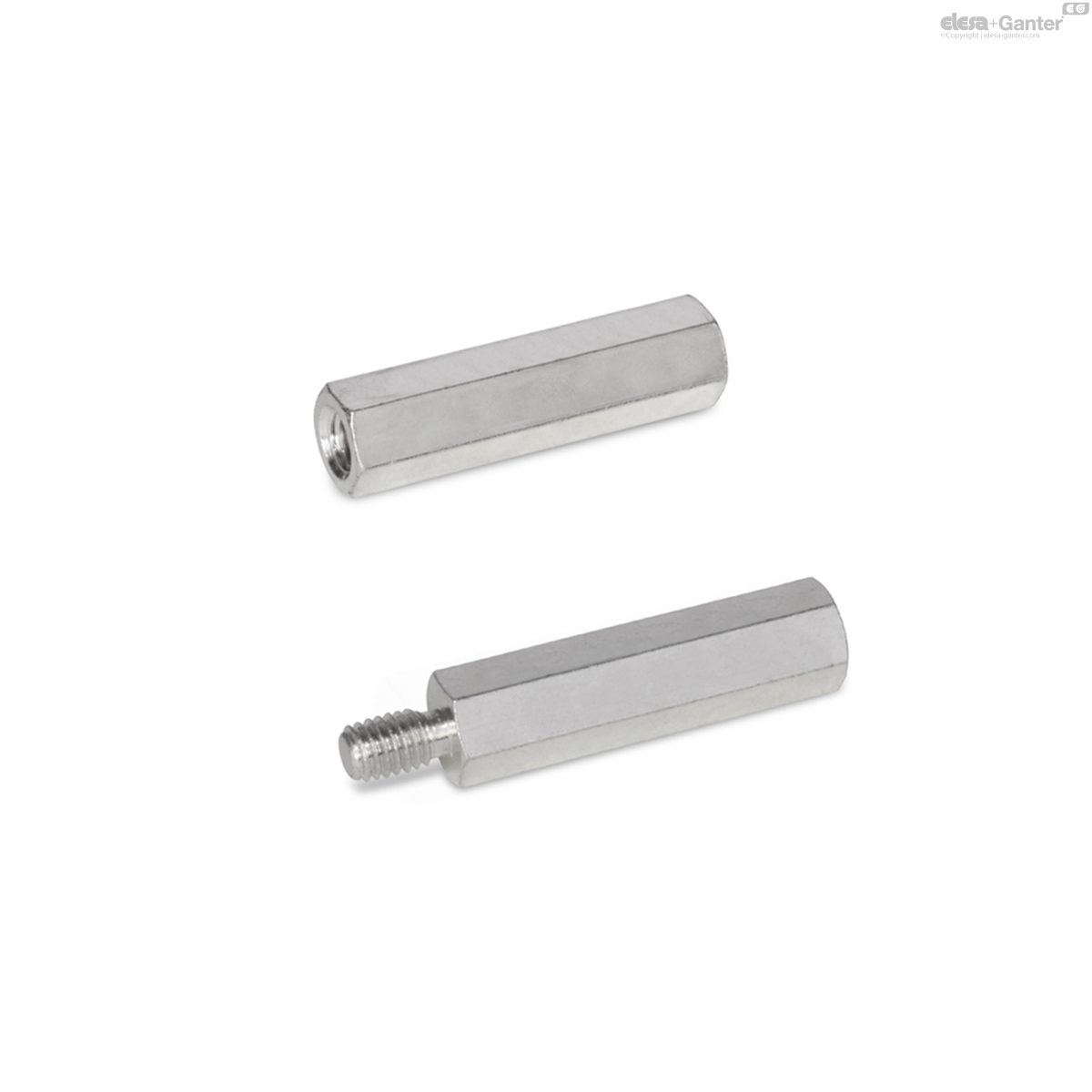

  • Type A: Internal thread
  • Type B: Internal thread and threaded stud

Steel ST

Zinc plated, blue passivated

Stainless Steel AISI 303 NI

Matte shot-blasted

Spacers GN 6220 are commonly used as spacing rods. They allow parts to be fastened with an offset parallel to their mounting plane. Type A is also used as a connecting nut.
