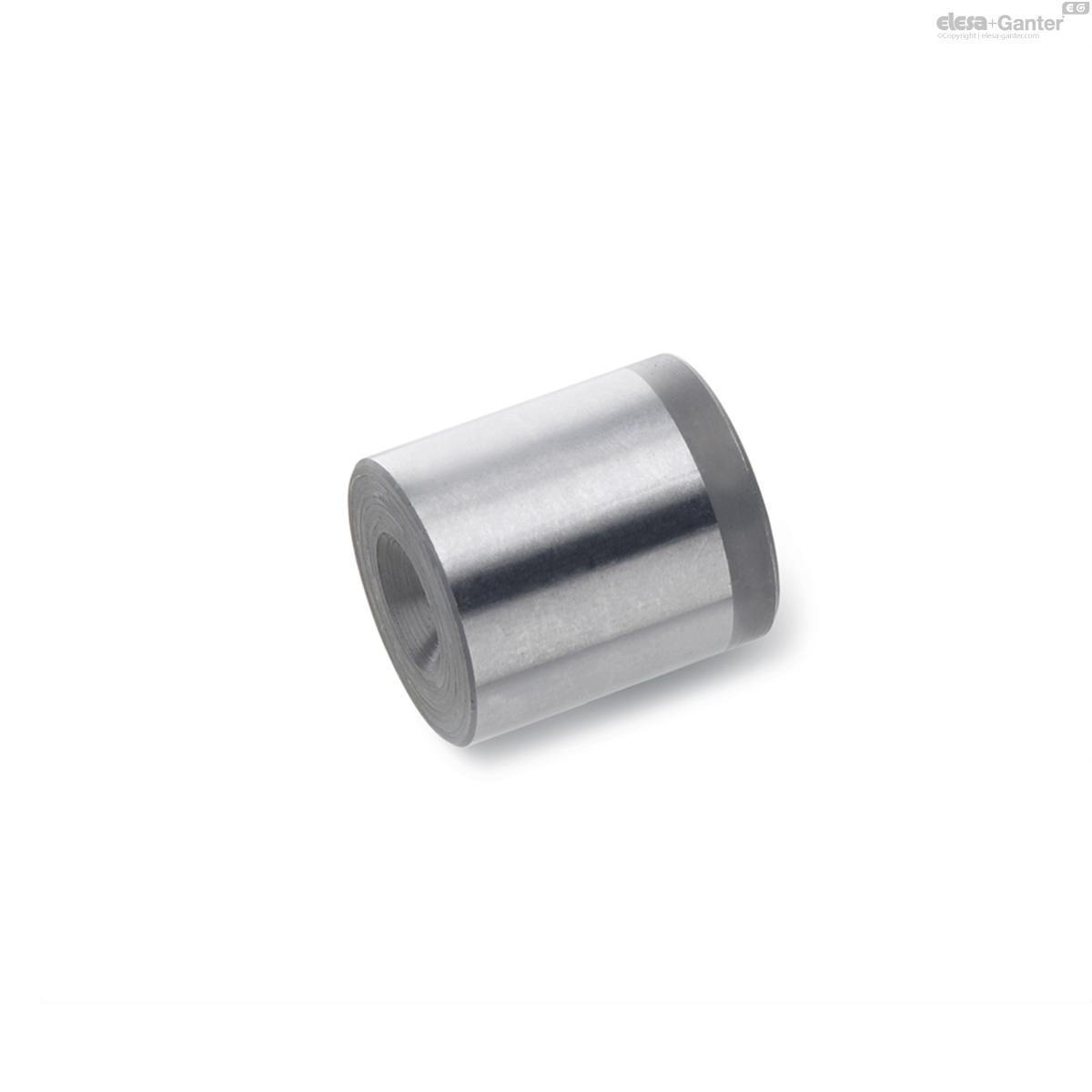

249.1-16-7,5 GN 249.1 Ball buttons

249.1-16-7,5 GN 249.1 Ball buttons

for spring plungers
All sizes and variants
  • RoHS

Expected delivery time 5-7 working days

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 249.1-16-7,5
d1 p6
16
d2
7.5
d3 Ball-Ø
spring plunger
*
l1 ±0.05
18
l2
2.5
s≈ for
GN 615
GN 615.2
GN 615.3
GN 615.5
GN 815
GN 815.1
M 16=1.7
s≈ for
GN 614
GN 614.2
GN 614.5
Ø 12=1.7
s≈ for
GN 614.3
Ø 12=1.7
s≈ for
GN 615.1
GN 615.4
M 20=1.7
s≈ for
GN 616
GN 616.1
M 20=1.7
w Compression
*
weight
27

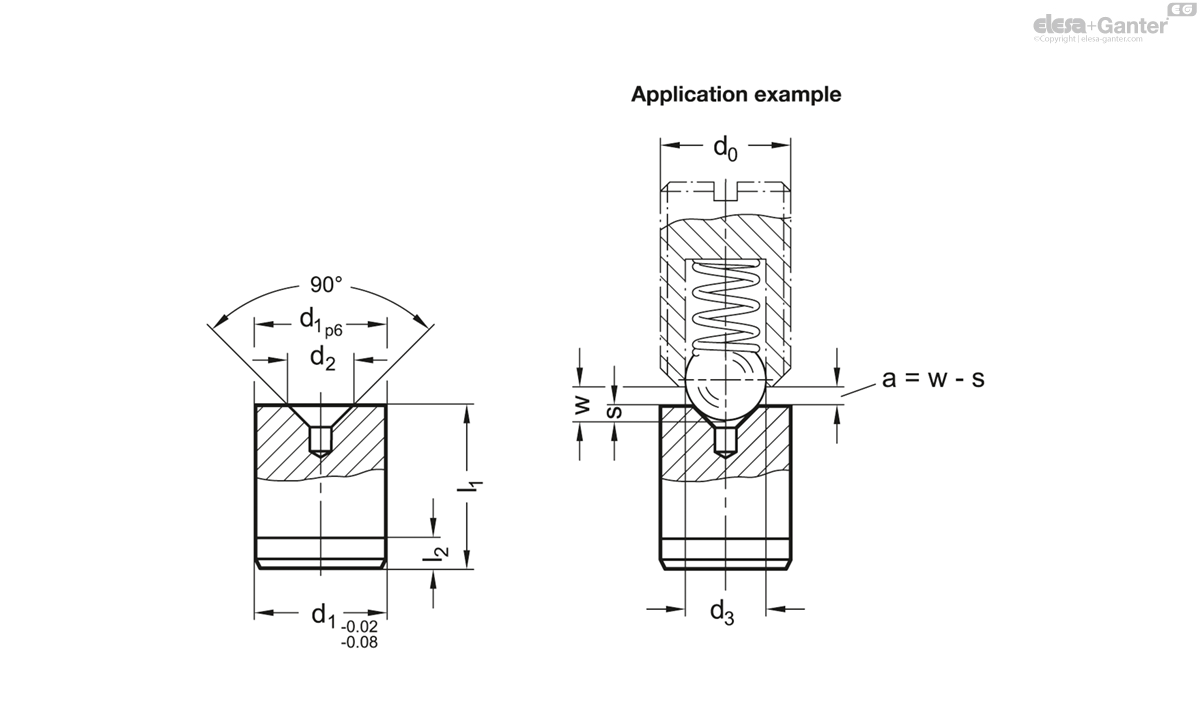

249.1-16-7,5 drawing
* see spring plunger

Steel

hardened and ground

Ball buttons GN 249.1 are mainly used with spring plungers when low wear and exact positioning are needed.

To achieve optimal locking of the spring plungers, the maximum distance a between the ball button and the spring plunger should not be exceeded. The maximum distance a is calculated from the difference between the compression w of the selected plunger and the indentation depth s of the ball in the recess.

These ball buttons are especially recommended for use with spring plungers with high spring loads.
